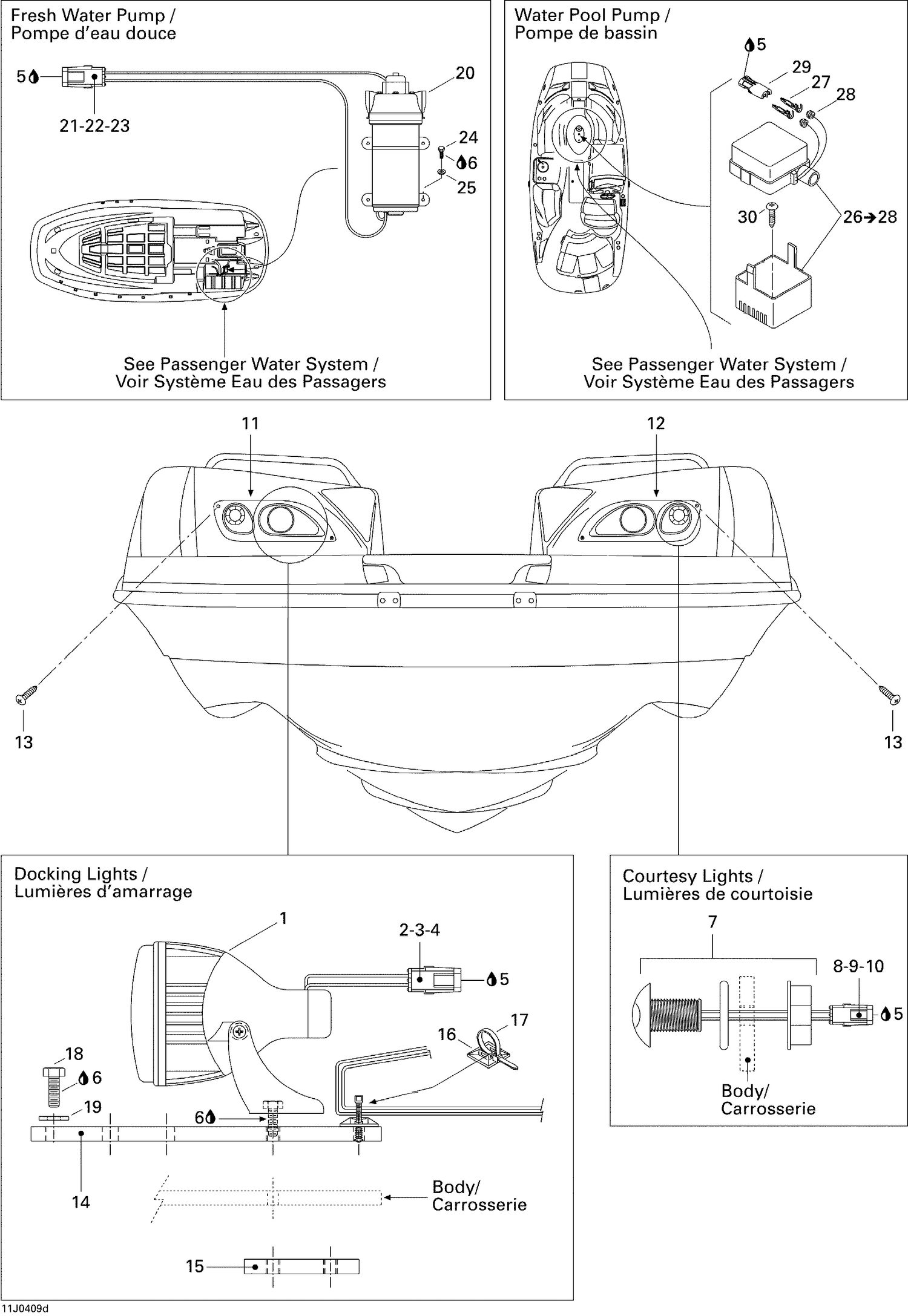

10- Electrical Accessories 4
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204470512 | DOCKING LIGHT - Call your local BRP dealership |
| 2 | 278000217 | Female Housing, 2 Circuits |
| 3 | 278000222 | Male Terminal |
| 4 | 278000218 | Wire Seal |
| 5 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 6 | 293800060 | Loctite 243, 10 ml |
| 7 | 204470514 | Courtesy Light |
| 8 | 278000217 | Female Housing, 2 Circuits |
| 9 | 278000222 | Male Terminal |
| 10 | 278000218 | Wire Seal |
| 13 | 204100058 | Phillips Tapping Screw |
| 14 | 204470536 | UPPER PLATE - Call your local BRP dealership |
| 15 | 204470537 | LOWER PLATE - Call your local BRP dealership |
| 16 | 293730040 | Mount Dart This part replaces 293730018. |
| 17 | 293750002 | Tie Wrap 142 mm |
| 18 | 207163060 | Hex. Screw M6 X 30 |
| 19 | 234062600 | Flat Washer M6, Stainless |
| 20 | 204470524 | FRESH WATER PUMP R4305-144K - Call your local BRP dealership |
| 21 | 278000217 | Female Housing, 2 Circuits |
| 22 | 278000222 | Male Terminal |
| 23 | 278000218 | Wire Seal |
| 24 | 207152060 | Hex. Screw M5 X 20 |
| 25 | 234051600 | Flat Washer M5, Stainless |
| 27 | 278000222 | Male Terminal |
| 28 | 278000218 | Wire Seal |
| 29 | 278000217 | Female Housing, 2 Circuits |
