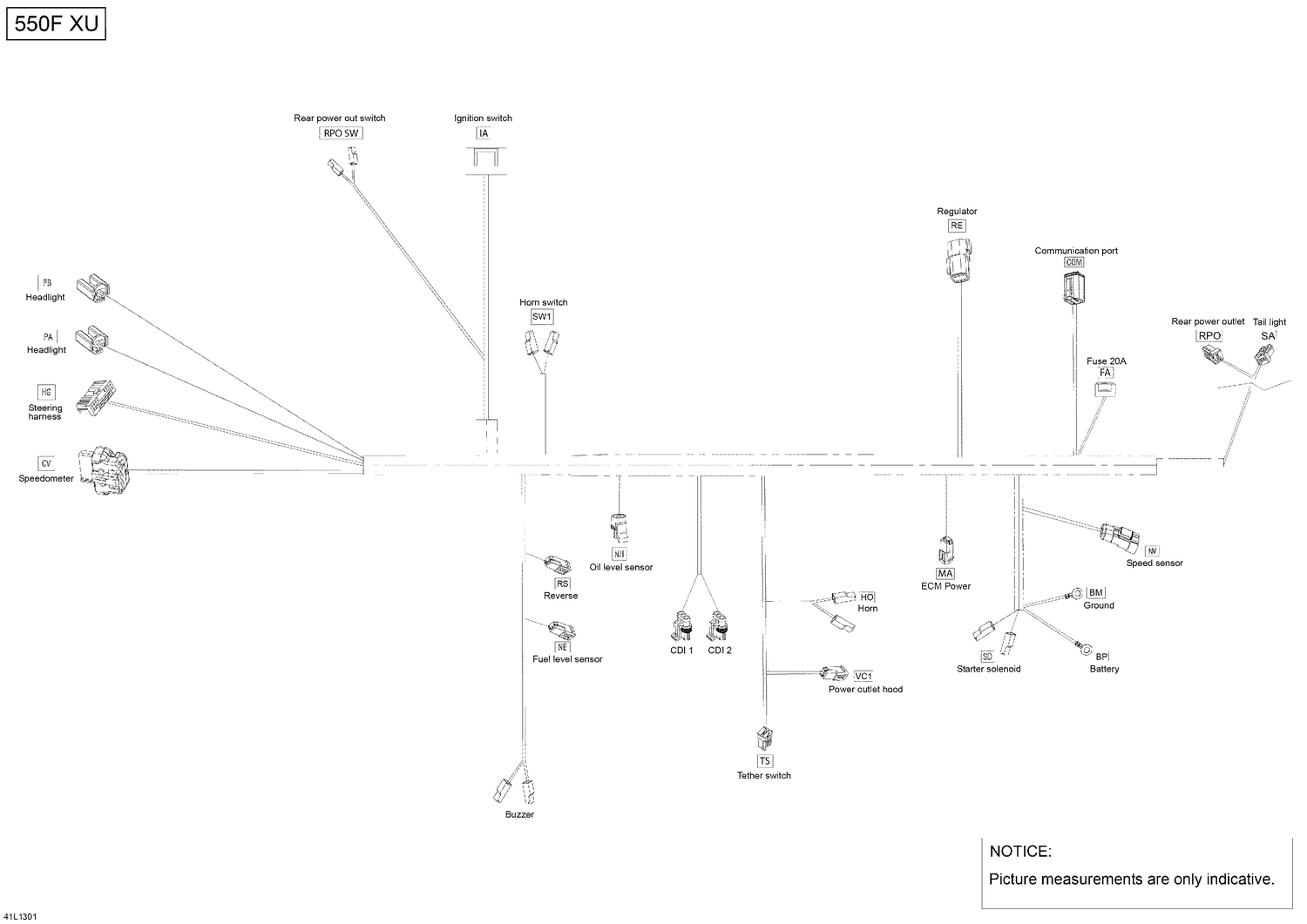

| Ref | Part Number | Description |
|---|
| BM |
278000992 |
Open Barrel |
| BP |
278000992 |
Open Barrel |
| BUZZER |
409010100 |
Female Terminal |
| BUZZER |
409010400 |
Female Terminal Housing, 1 Circuit |
| COM |
278000632 |
Female Terminal |
| COM |
293000052 |
Sealing Cap |
| COM |
515175673 |
Male Housing, 6 Circuits |
| COM |
515175678 |
Male Wedge, 6 Circuits |
| CV |
515175801 |
Female Housing, 24 Circuits |
| CV |
515175802 |
Retainer Block |
| CV |
515175803 |
Wire Seal |
| CV |
515175806 |
Female Terminal |
| CV |
515175812 |
Plug |
| CV |
710000399 |
Female Housing |
| CV |
710001131 |
Female Terminal |
| FA |
409004000 |
Fuse Holder |
| FA |
409004200 |
Female Terminal |
| FA |
619600021 |
Loctite 8104 (Dielectric Grease), 75ml |
| FA |
710000992 |
Clip |
| HG |
515175231 |
Female Terminal |
| HG |
515175282 |
Female Terminal |
| HG |
Not |
Available As Spare Part - Female Terminal Housing, 15 Circuits |
| HO |
515175231 |
Female Terminal |
| HO |
515175658 |
Female Housing, 2 Circuits |
| IA |
710000272 |
Female Terminal Housing, 4 Circuits |
| IA |
710000273 |
Lock, 4 Circuits |
| IA |
710000274 |
Female Terminal |
| MA |
278000632 |
Female Terminal |
| MA |
515175670 |
Female Terminal Housing, 2 Circuits |
| MA |
515175675 |
Female Lock, 2 Circuits |
| NE |
515175232 |
Male Terminal |
| NE |
515175654 |
Male Terminal Housing, 2 Circuits |
| NH |
278001113 |
Male Connector, 2 Circuits |
| NH |
710001119 |
Female Terminal |
| NV |
515176164 |
Male Terminal |
| NV |
515176621 |
Wire Seal |
| NV |
710000568 |
Male terminal housing |
| NV |
710000992 |
Clip |
| PA |
515176908 |
Female Housing |
| PA |
515176909 |
Terminal |
| PB |
515176908 |
Female Housing |
| PB |
515176909 |
Terminal |
| RE |
710000877 |
Female Terminal |
| RE |
710000879 |
Female Housing, 3 Circuits |
| RE |
710000881 |
Seal |
| RE |
710000882 |
Cap |
| RPO |
515175232 |
Male Terminal |
| RPO |
515175494 |
Male Housing, 3 Circuits |
| RS |
278002307 |
FEMALE TERMINAL - Call your local BRP dealership |
| RS |
409209600 |
Female Housing, 3 Circuits |
| RS |
515176621 |
Wire Seal |
| SA |
515175231 |
Female Terminal |
| SA |
515175495 |
Female Housing, 3 Circuits |
| SD |
293750001 |
Tie-Rap 94 mm |
| SD |
409010100 |
Female Terminal |
| SD |
409010400 |
Female Terminal Housing, 1 Circuit |
| SW1 |
409010100 |
Female Terminal |
| SW1 |
409010400 |
Female Terminal Housing, 1 Circuit |
| TS |
278000998 |
Female Terminal |
| TS |
278001005 |
Male Housing, 2 Circuits |
| TS |
415128501 |
Seal |
| VC1 |
409010100 |
Female Terminal |
| 3 |
Not |
Available As Spare Part - Blue Coding Vinyl Tape |
| 188 |
409902000 |
Tubing 12mm |
| 253 |
515175442 |
Tubing 6mm |
| 254 |
409901700 |
Tubing 9mm |
| 255 |
409901800 |
Tubing 13mm |
| 256 |
415080000 |
Tubing 16mm |
| 257 |
409901600 |
Tubing 19mm |
| 258 |
415079900 |
Tubing 10mm |
