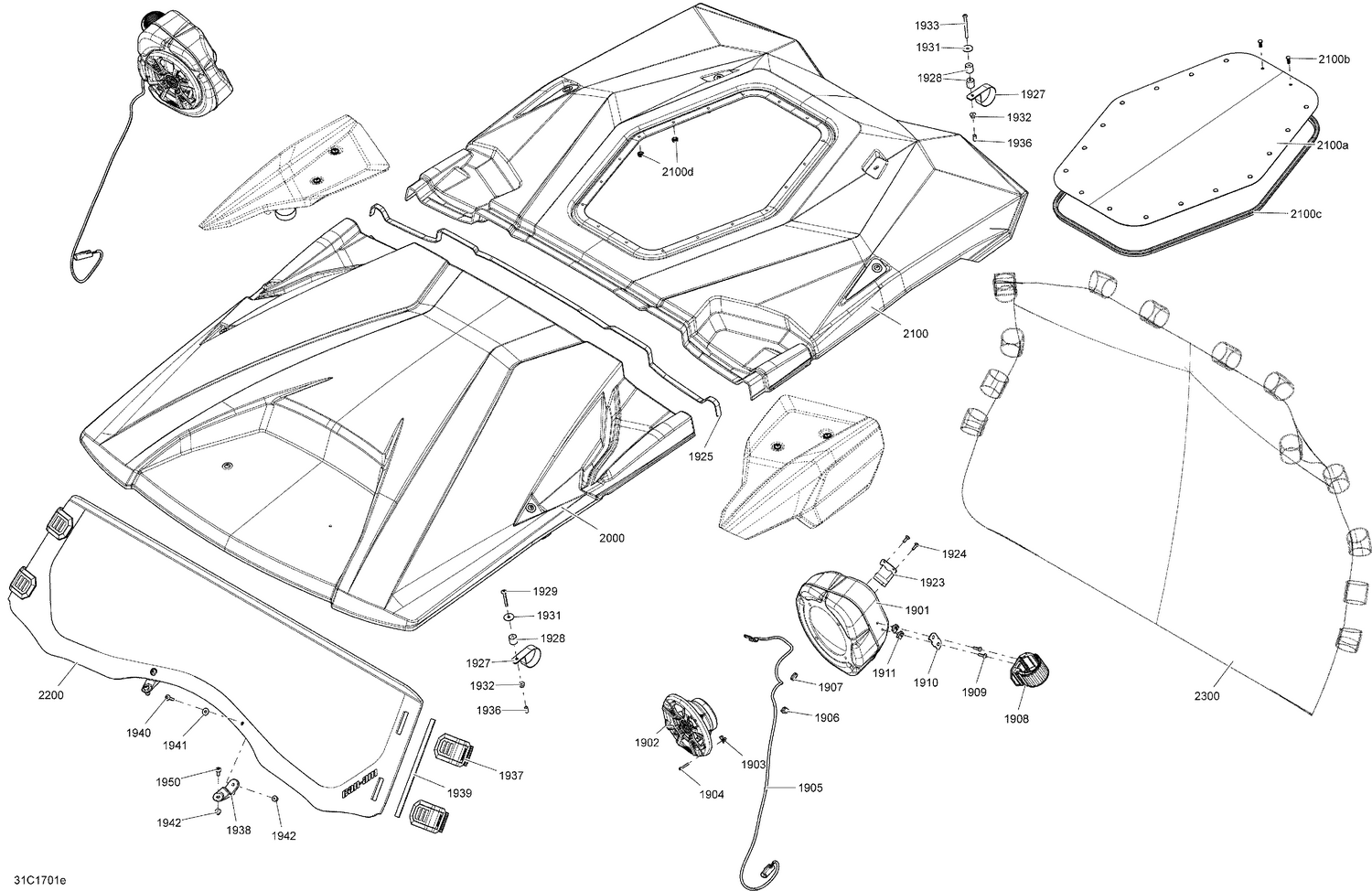

09- Body And Accessories - Max, Parts Package LTD
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1901 | 710002837 | LH Speaker Box Ass'y |
| 1901 | 710002839 | RH Speaker Box Ass'y |
| 1902 | 710002838 | Speaker |
| 1903 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 1904 | 250000622 | Torx Pan Screw M4 X 20 |
| 1905 | 710004341 | Speaker Harness |
| 1906 | 414227300 | Clip |
| 1907 | 414036300 | Grommet |
| 1908 | 705013420 | Retainer Velcro Perforated This part replaces 705007962. |
| 1909 | 250000724 | Torx Screw M5 X 20 |
| 1910 | 710002946 | M5 Support Plate |
| 1911 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 1923 | 705009030 | U Brace Strip |
| 1924 | 250000720 | Torx Screw K50 X 16 |
| 1925 | 219704364 | Neoprene Seal (1PAC=3M) |
| 1925 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1927 | 705005626 | Attache en "P", 2" Dia. |
| 1928 | 705007138 | Roof Spacer Bushing |
| 1929 | 250000749 | Torx Truss Screw M6 X 50 |
| 1931 | 250200029 | Washer M6 |
| 1932 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1933 | 235567084 | Torx Screw Button Head M6 X 70 |
| 1936 | 515176141 | Cap |
| 1937 | 705013420 | Retainer Velcro Perforated This part replaces 705007961. |
| 1938 | 705005776 | Windshield Support |
| 1939 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1940 | 250000758 | Torx Screw M6 X 25 |
| 1941 | 234062670 | Stainless Steel Flat Washer |
| 1942 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1950 | 250000488 | Torx Truss Screw M6 X 20 |
| 2000 | 705009203 | Deep Black Roof Front Section |
| 2100a | 705009562 | Clear Skylight Panel |
| 2100b | 705009405 | Plastic Dart |
| 2100c | 293250336 | EXTRUSION - Call your local BRP dealership |
| 2200 | 703501024 | Windshield Half Ass'y This part replaces 705005671. |
| 2300 | 715003078 | Wind Deflector |
