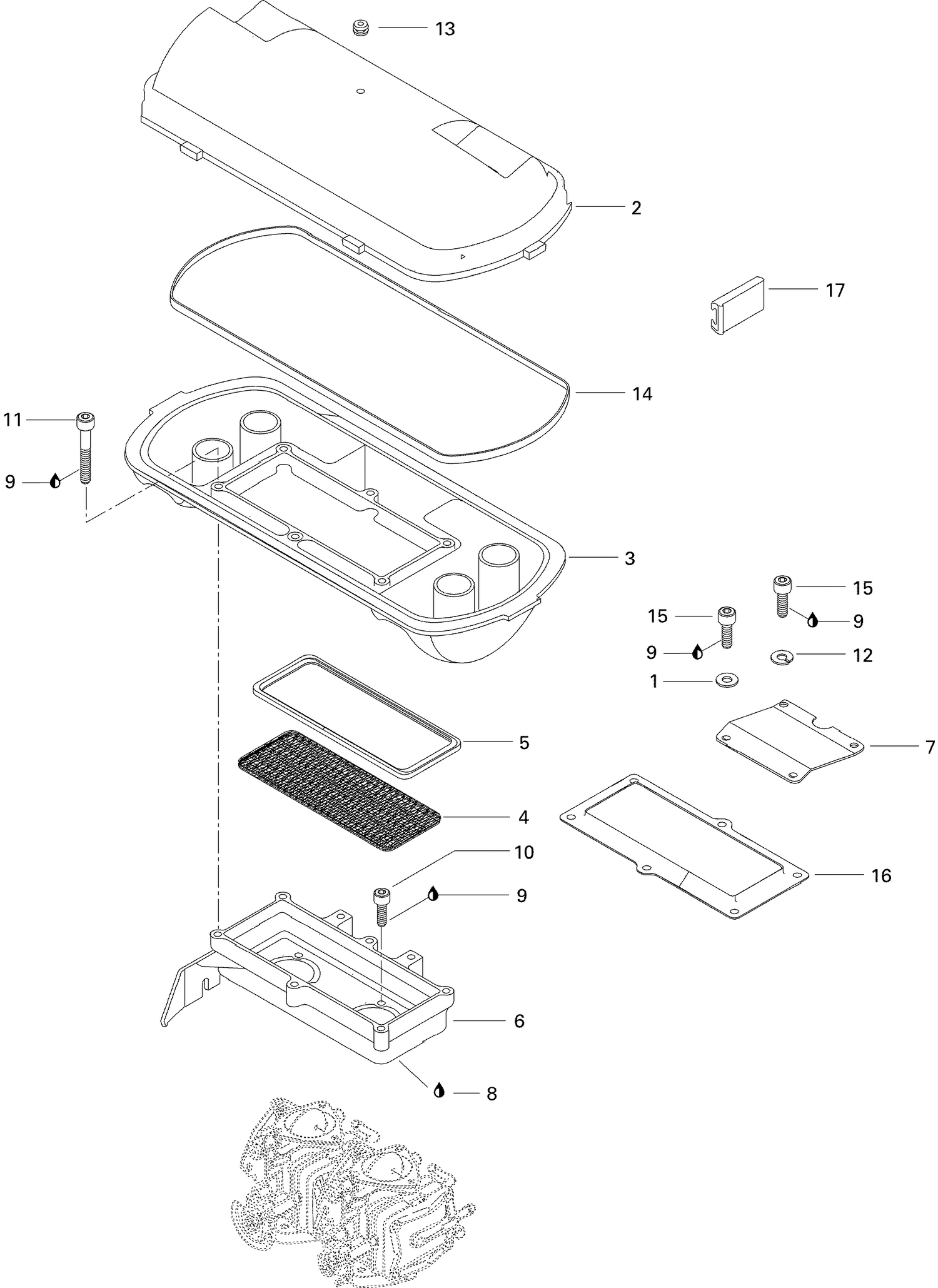

| Ref | Part Number | Description |
|---|
| 1 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 2 |
273000115 |
AIR SILENCER COVER - Call your local BRP dealership This part replaces 273000065. |
| 3 |
273000074 |
Air Silencer Base |
| 4 |
273000062 |
Flame Arrester |
| 5 |
273000020 |
ISOLATOR - Call your local BRP dealership |
| 6 |
273000051190 |
Housing Arrester |
| 7 |
270000083 |
Support |
| 9 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 10 |
205061660 |
Socket Screw M6 X 16 This part replaces 215961660. |
| 11 |
205062560 |
Socket Head Screw M6 X 25 This part replaces 210100012. |
| 12 |
234161601 |
Lock Washer Helical M6 This part replaces 217361500. |
| 13 |
293830005 |
Rubber Bumper |
| 14 |
293250023 |
GASKET - Call your local BRP dealership |
| 15 |
205061260 |
Socket Head Screw M6 X 12 This part replaces 210100009. |
| 16 |
273000059 |
HOLDER PLATE - Call your local BRP dealership |
