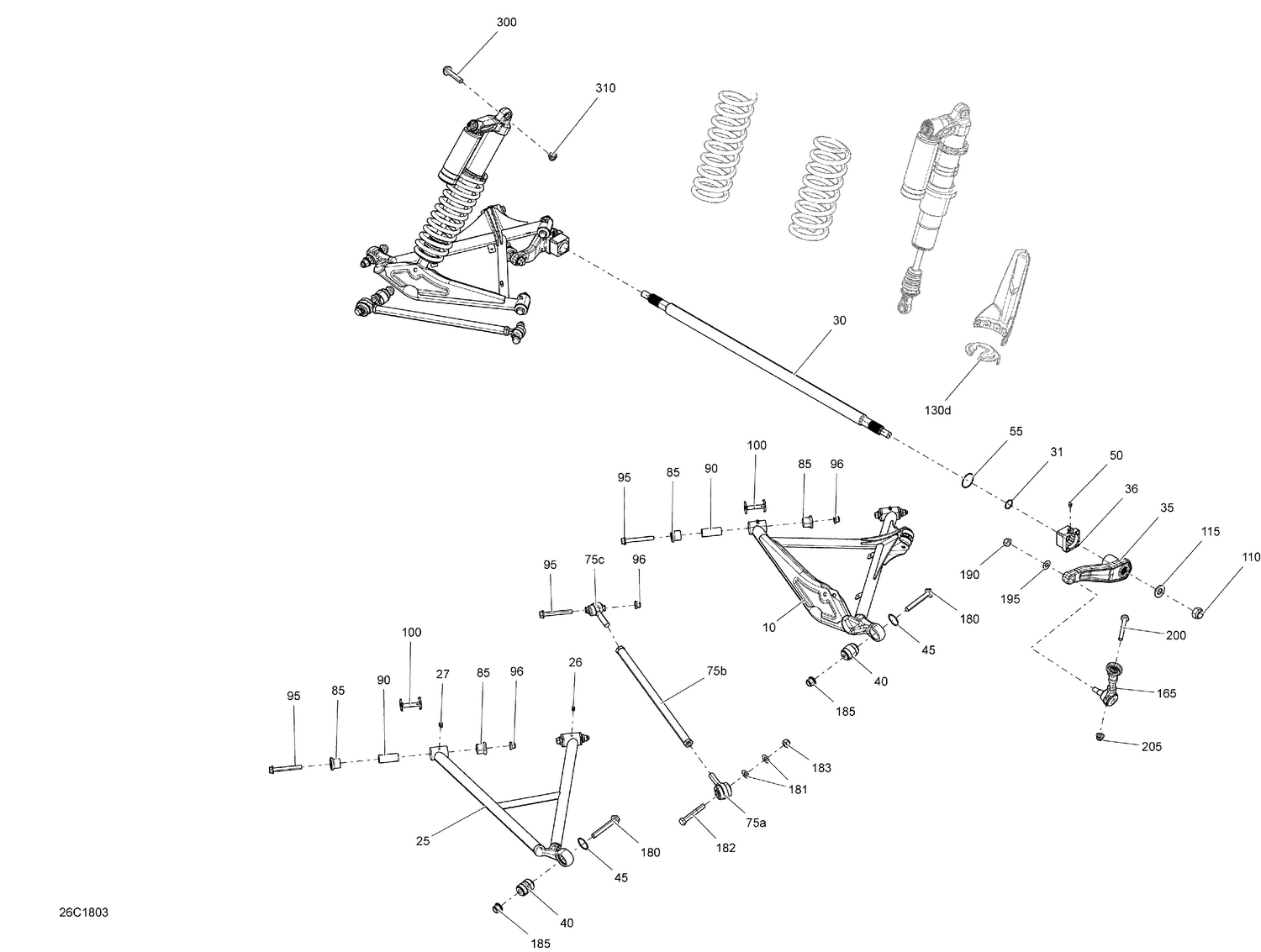

08- Rear Suspension Maverick
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 26 | 408200700 | Grease Fitting |
| 27 | 293550056 | Grease Fitting 90° |
| 28 | 293550010 | Synthetic Grease, 400 G |
| 31 | 706000251 | Retaining Ring |
| 35 | 706001371 | Sway Bar Lever |
| 36 | 706001402 | Sway Bar Housing |
| 40 | 706001373 | Radial Joint |
| 45 | 293370093 | Retaining Ring |
| 50 | 408200700 | Grease Fitting |
| 55 | 293300100 | O-Ring |
| 85 | 706204409 | Suspension Arm Bushing This part replaces 706201659. |
| 90 | 706201590 | Sleeve |
| 95 | 207608046 | Hex Flange Screw M10 X 80 |
| 96 | 233201436 | Hex. Flange Elastic Nut M10 |
| 100 | 706201660 | Wear Plate |
| 110 | 232591414 | Elastic Stop Nut M18 |
| 115 | 250200045 | Washer |
| 180 | 207628546 | Hex. Flange Screw M12 X 85 |
| 181 | 706200281 | Hardened Washer This part replaces 250200086. |
| 182 | 207028046 | Hex. Screw M12 X 80 |
| 183 | 232521416 | Elastic Stop Nut M12 |
| 185 | 233221416 | Elastic Flange Nut M12 |
| 300 | 207626046 | Hex. Flange Screw M12 X 60 |
