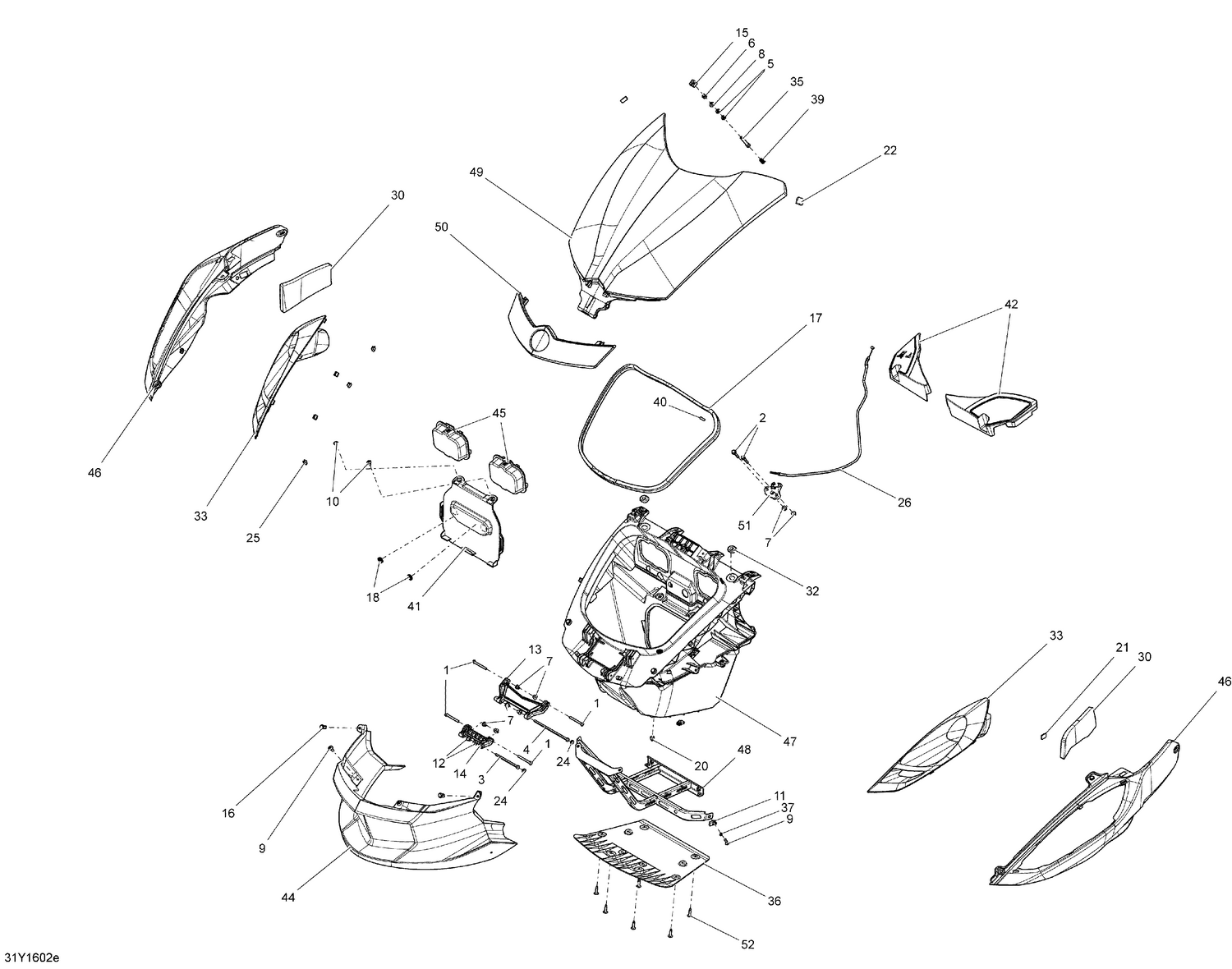

09- Body And Accessories - Front Storage
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207065544 | Hex. Screw M6 X 55 |
| 2 | 207663544 | Hex. Flange Screw M6 X 35 |
| 3 | 230060060 | Hex. Screw M6 X 100 |
| 4 | 230065060 | Hex. Screw M6 X 150 |
| 5 | 232180600 | Hex. Jam Nut M8 |
| 6 | 232581200 | Hex. Elastic Nut M8 Brass |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 234081410 | Flat Washer 8 mm |
| 9 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 10 | 250000454 | Torx Screw M6 X 12 |
| 11 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 12 | 269500706 | Sleeve |
| 13 | 269501481 | REAR ARM - Call your local BRP dealership |
| 14 | 269501482 | FRONT ARM - Call your local BRP dealership |
| 15 | 269501943 | Elastic Nut Housing M8 |
| 16 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 17 | 219704371 | Neoprene Seal 3000 mm Long |
| 18 | 293740028 | Dual Lock Velcro Washer 3/4" |
| 20 | 293830005 | Rubber Bumper |
| 21 | 293830143 | Rubber Pad |
| 22 | 293830175 | RUBBER PAD - Call your local BRP dealership |
| 24 | 414436900 | BLACK SNAP CAP - Call your local BRP dealership |
| 25 | 414479100 | Clip |
| 26 | 517305742 | Hood Cable |
| 30 | 518325515 | LH FRONT PANEL FOAM - Call your local BRP dealership |
| 30 | 518325516 | RH FRONT PANEL FOAM - Call your local BRP dealership |
| 32 | 705000321 | Oval Washer |
| 33 | 705001541 | LH Air Duct |
| 33 | 705001543 | RH Air Duct |
| 35 | 705002223 | Lug |
| 36 | 705002837 | Skid Plate |
| 37 | 705003207 | Plastic Washer |
| 38 | 705003515 | Service Center |
| 39 | 705003911 | Spring |
| 40 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 41 | 705018040 | Battery Cover Ass'y This part replaces 705004628. |
| 42 | 705005394 | LH SERVICE CENTER - Call your local BRP dealership |
| 42 | 705005774 | RH SERVICE CENTER - Call your local BRP dealership |
| 45 | 705011444 | Fuse Cover Ass'y This part replaces 705007483. |
| 47 | 705008320 | Storage Bin Ass'y |
| 48 | 705201326 | Front Frame |
| 51 | 705007379 | Latch |
