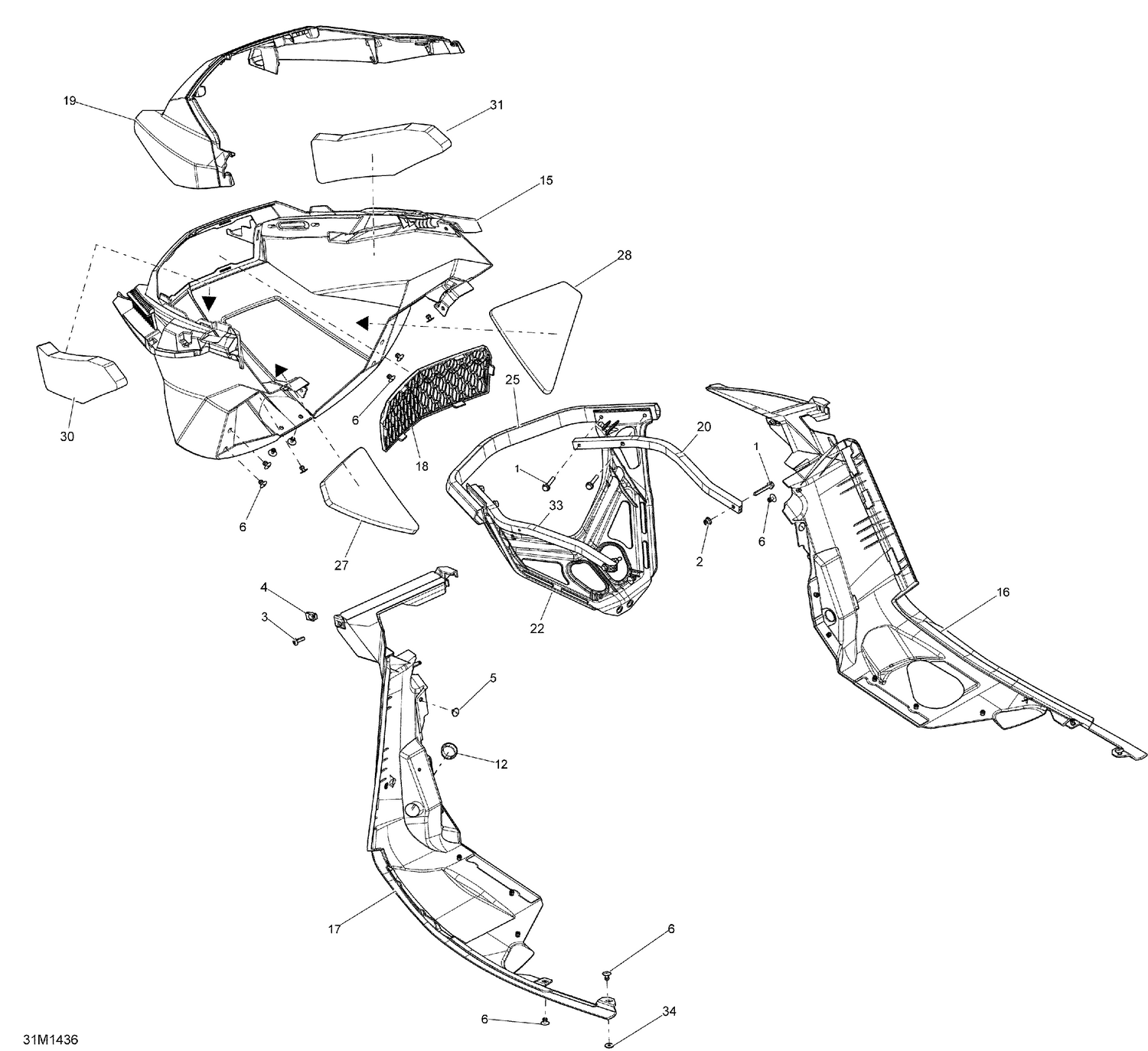

| Ref | Part Number | Description |
|---|
| 1 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 4 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 5 |
293150103 |
Pop Rivet 3/16" |
| 6 |
293150104 |
Pop Rivet 3/16" |
| 12 |
414916600 |
Black, Nylon Cap |
| 15 |
502006873 |
Deep Black Front Bottom Pan |
| 16 |
502006877 |
RH BOTTOM PAN - Call your local BRP dealership |
| 17 |
502006878 |
LH BOTTOM PAN - Call your local BRP dealership |
| 18 |
502006887 |
Botton Pan Grille |
| 19 |
502006898 |
Black Bottom Pan Cap |
| 19 |
502007262 |
WHITE BOTTOM PAN CAP - Call your local BRP dealership |
| 20 |
502006926 |
RH Support |
| 22 |
502006938 |
Bracket |
| 25 |
502006939 |
Black Bumper |
| 27 |
502007223 |
LH MIDDLE HULL FOAM - Call your local BRP dealership |
| 28 |
502007220 |
RH MIDDLE HULL FOAM - Call your local BRP dealership |
| 30 |
502007219 |
LH UPPER HULL FOAM - Call your local BRP dealership |
| 31 |
502007217 |
RH UPPER HULL FOAM - Call your local BRP dealership |
| 33 |
502007357 |
LH Support |
