Home / BRP / Sea-Doo Pontoons / 2024 / 009 - SWITCH - North America - Base Series / 003 - BASE 19 - 170 - North America, 2024 / North America - BASE 19 - 170 - 42RA - Red - Trailer Paint - CAT2B, 2024 00042RA00 / 06- HULL - Ventilation

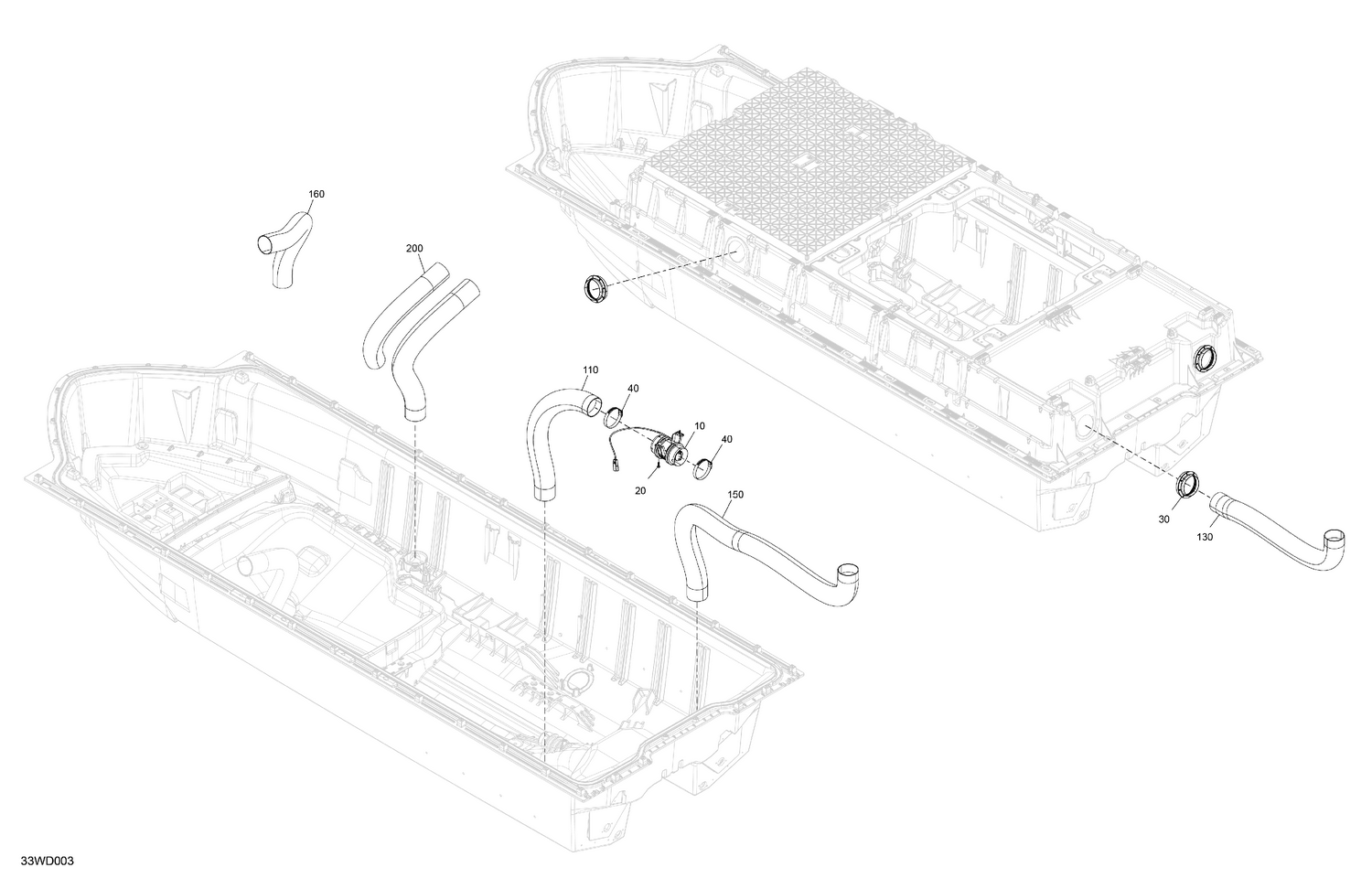

06- HULL - Ventilation

06- HULL - Ventilation

Parts (7)

RefPart NumberDescription
20 250000760 Torx Screw Truss Head K50X20 T20
30 237000090 Vent Adapter
40 293650244 Tridon Gear Clamp
110 237000079 Ventilation Duct
130 237000053 Vent Hose
150 237000073 Ventilatino Duct
160 237000079 Ventilation Duct
