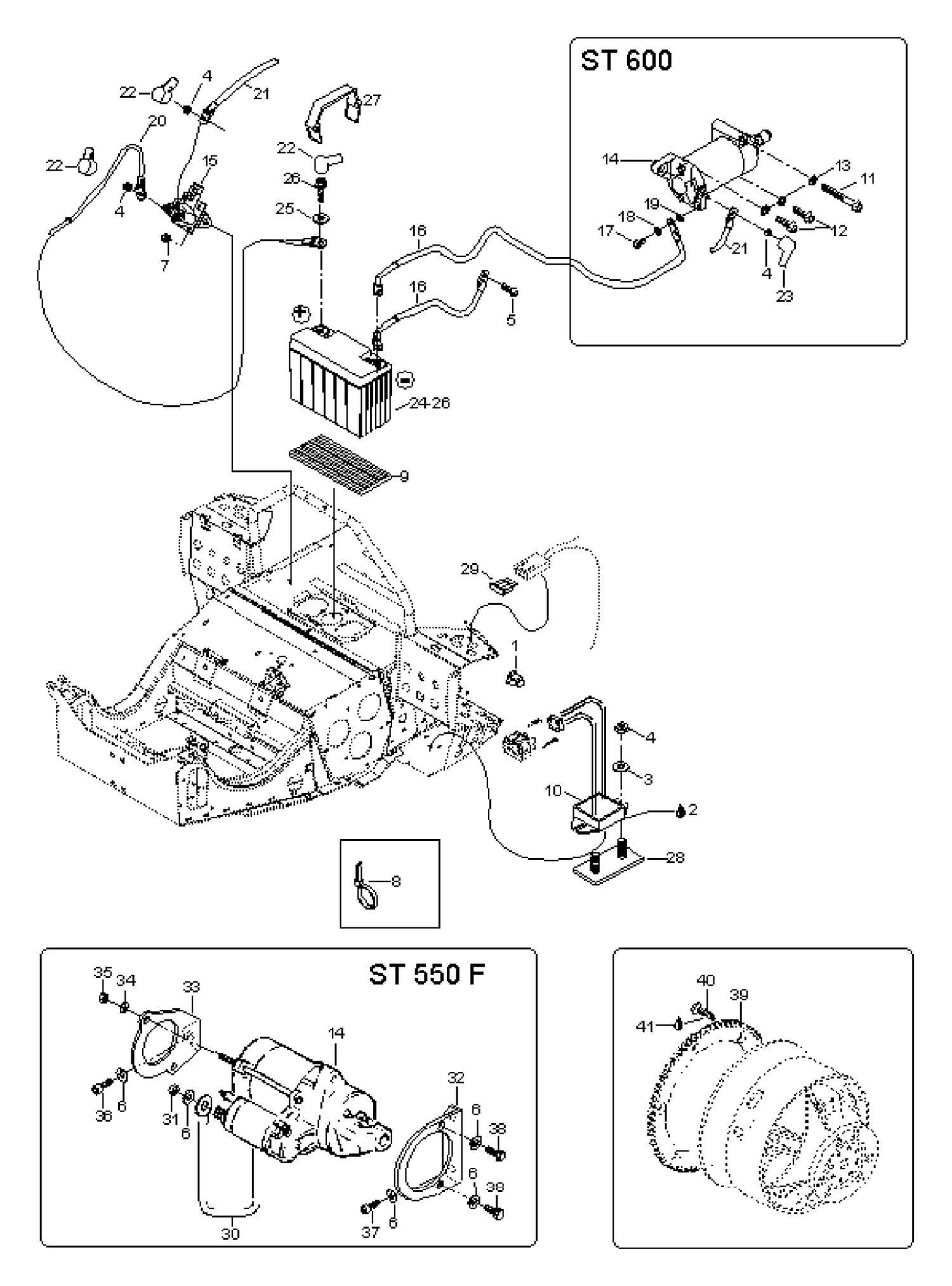

| Ref | Part Number | Description |
|---|
| 1 |
414227300 |
Clip |
| 2 |
413707500 |
Lithium-grease |
| 3 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 4 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 5 |
40327 |
Screw M6 x 12 |
| 6 |
20014 |
Spring washer |
| 7 |
Not |
Available As Spare Part - Elastic flanged nut M6 - DOES NOT APPLY TO THIS MODEL |
| 8 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 9 |
605350237 |
BATTERY CARPET - Call your local BRP dealership |
| 10 |
515175939 |
Voltage regulator ass'y This part replaces 515175656. |
| 11 |
Not |
Available As Spare Part - Screw - DOES NOT APPLY TO THIS MODEL |
| 12 |
Not |
Available As Spare Part - Screw - DOES NOT APPLY TO THIS MODEL |
| 13 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 14 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 15 |
Not |
Available As Spare Part - Relay - DOES NOT APPLY TO THIS MODEL |
| 17 |
Not |
Available As Spare Part - Screw - DOES NOT APPLY TO THIS MODEL |
| 18 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 19 |
Not |
Available As Spare Part - Serrated lock washer - DOES NOT APPLY TO THIS MODEL |
| 20 |
Not |
Available As Spare Part - + Cabel, battery-> solenoi - DOES NOT APPLY TO THIS MODEL |
| 21 |
Not |
Available As Spare Part - + Cabel, starter-> solenoi - DOES NOT APPLY TO THIS MODEL |
| 22 |
570151000 |
Cap protection |
| 23 |
Not |
Available As Spare Part - Cap protection - DOES NOT APPLY TO THIS MODEL |
| 25 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 26 |
Not |
Available As Spare Part - Screw M6 x 16 - DOES NOT APPLY TO THIS MODEL |
| 27 |
515176044 |
Retainer strap This part replaces 515175475. |
| 28 |
5448286 |
Support plate |
| 29 |
409003900 |
Fuse 20 A This part replaces 278001143. |
| 30 |
605349434 |
BATTERY WIRE - Call your local BRP dealership |
| 31 |
33003 |
Nut M8 |
| 32 |
420951415 |
STARTER BRACKET, P.T.O. - Call your local BRP dealership |
| 33 |
420951426 |
STARTER BRACKET, M.A.G. - Call your local BRP dealership |
| 34 |
20008 |
Washer |
| 35 |
33009 |
Nut M5 |
| 36 |
40066 |
Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 37 |
40305 |
Allen screw M8 x 20 |
| 38 |
40036 |
Screw M8 x 20 |
| 39 |
415043100 |
Ring gear |
| 40 |
236281684 |
Hex. Screw M8 X 16 |
