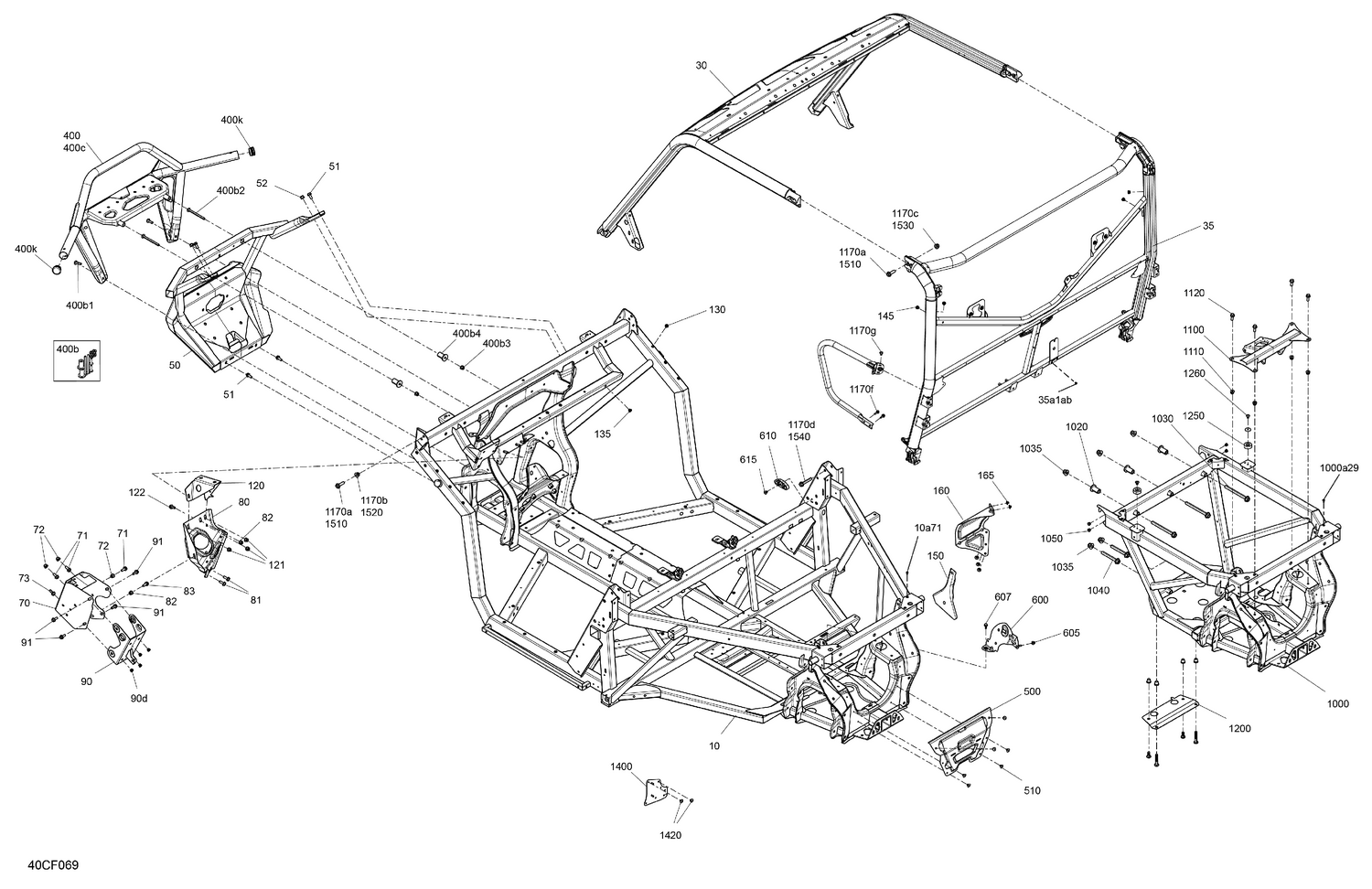

| Ref | Part Number | Description |
|---|
| 10 |
715011182 |
Deep Black, Rear Chassis Kit |
| 10a71 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 30 |
715011120 |
Front Cage Service Kit |
| 35a1ab |
293150293 |
Pop Rivet 3/16 X ,425 |
| 50 |
705207588 |
Deep Black, Front Bumper |
| 51 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 70 |
705212644 |
Module Support |
| 71 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 72 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 73 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 |
705208741 |
Power Steering Support |
| 81 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 83 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 90d |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 91 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 120 |
705211549 |
Module Support |
| 121 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 122 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 135 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 145 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 150 |
705014849 |
Heat Shield |
| 160 |
707002709 |
Heat Shield |
| 165 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 400 |
715005754 |
Deep Black, Front Bumper |
| 400b1 |
250000886 |
Torx Screw M8 X 30 |
| 400b2 |
250001106 |
Torx Truss M/S M8 x X 100 |
| 400b3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 400b4 |
705207754 |
Spacer |
| 400c |
715005754 |
Deep Black, Front Bumper |
| 400k |
705202455 |
Cap |
| 500 |
705207753 |
Rear Chassis Reinforcement |
| 510 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 600 |
710011848 |
Voltage Regulator Support |
| 605 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 607 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 610 |
705208203 |
Spacer |
| 615 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1000a29 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 1020 |
705207755 |
Spacer |
| 1030 |
250000892 |
Screw Flange M12 X 135 |
| 1035 |
250001195 |
Elastic Flange Nut M12 |
| 1040 |
250000876 |
Hex. Flange Screw M12 X 95 |
| 1050 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 1100 |
705210673 |
Upper Rear Differential Support |
| 1110 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 1120 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 1170a |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1170b |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 1170c |
233201466 |
Flange Elastic Nut M10 |
| 1170d |
207606046 |
Hex. Flange Screw M10 X 6 |
| 1170f |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 1200 |
705208867 |
Rear Skid Plate |
| 1250 |
708304601 |
Rubber Stopper |
| 1260 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1400 |
705018380 |
Rear Solenoid Support |
| 1420 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 1510 |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1520 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 1530 |
233201466 |
Flange Elastic Nut M10 |
| 1540 |
207606046 |
Hex. Flange Screw M10 X 6 |
