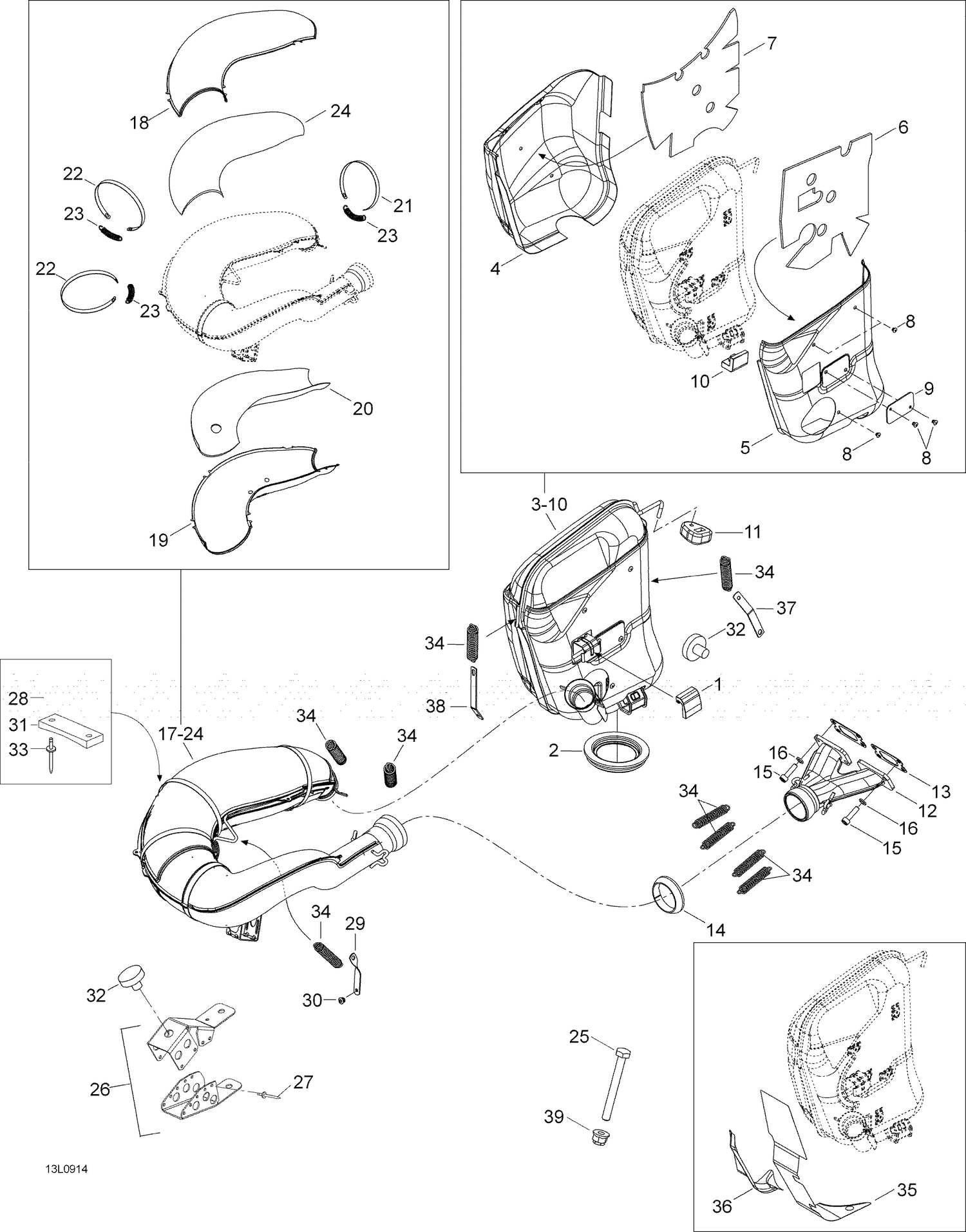

| Ref | Part Number | Description |
|---|
| 1 |
514053372 |
UPPER STOPPER - Call your local BRP dealership |
| 2 |
514054240 |
EXHAUST GROMMET - Call your local BRP dealership |
| 4 |
514054100 |
RH DEFLECTOR - Call your local BRP dealership |
| 5 |
514053843 |
HEAT DEFLECTOR LH - Call your local BRP dealership |
| 6 |
514053844 |
INSULATING WOOL LH - Call your local BRP dealership |
| 7 |
514053947 |
INSULATING WOOL RH - Call your local BRP dealership |
| 8 |
390910000 |
Rivet |
| 9 |
514053429 |
Reinforcement |
| 10 |
514054223 |
LOWER STOPPER - Call your local BRP dealership |
| 11 |
514052704 |
RUBBER BUMPER - Call your local BRP dealership |
| 13 |
420831849 |
Gasket |
| 14 |
514053644 |
Exhaust gasket |
| 15 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 16 |
20014 |
Lock washer A8 |
| 18 |
514053852 |
REAR UPPER HALF-ENVELOPPE - Call your local BRP dealership |
| 19 |
514053853 |
REAR LOWER HALF-ENVELOPPE - Call your local BRP dealership |
| 20 |
514053854 |
LOWER INSULATING WOOL - Call your local BRP dealership |
| 21 |
514053501 |
Retaining strap |
| 22 |
514053512 |
RETAINING STRAP - Call your local BRP dealership |
| 23 |
514053643 |
Spring |
| 24 |
514053987 |
UPPER INSULATING WOOL - Call your local BRP dealership |
| 25 |
40007 |
Hex. Screw M8 x 40 |
| 27 |
36108 |
Rivet |
| 28 |
605454111 |
Bracket tune pipe |
| 29 |
605451629 |
Spring bracket |
| 30 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 31 |
514053352 |
BUMPER - Call your local BRP dealership |
| 32 |
514053654 |
Rubber Bumper |
| 33 |
36037 |
Rivet |
| 34 |
415107100 |
Spring |
| 35 |
514053560 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 36 |
514053622 |
Reflective sheet |
| 37 |
514053725 |
SPRING BRACKET - Call your local BRP dealership |
| 38 |
514053393 |
Spring bracket |
