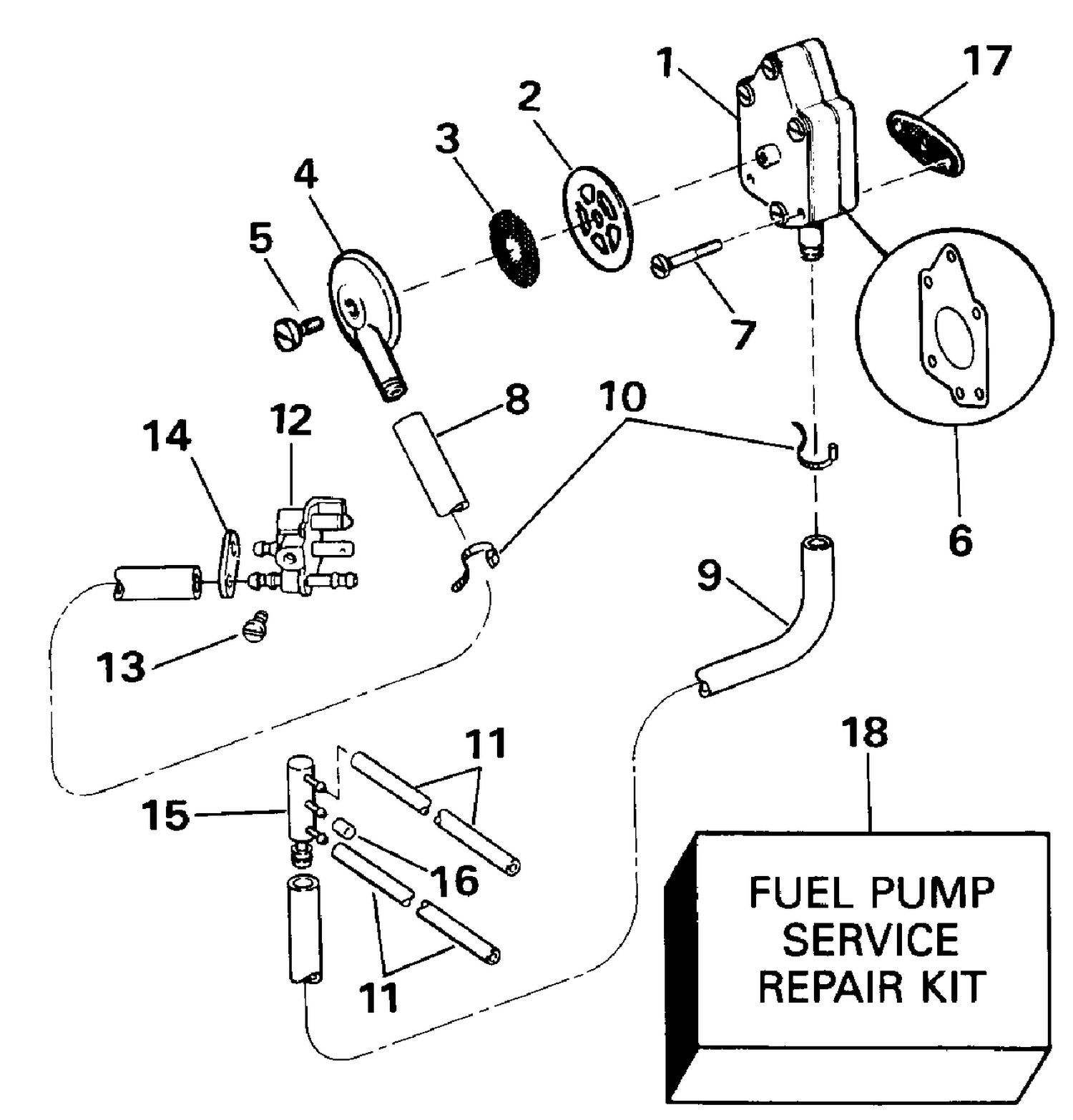

FUEL PUMP AND FILTER EARLY PRODUCTION
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438556 | FUEL PUMP ASSY. This part replaces 0432451. |
| 2 | 0338879 | GASKET, Cap to pump, upper This part replaces 0332694. |
| 4 | 0330092 | CAP Filter |
| 6 | 0334640 | DIAPHRAGM |
| 8 | HOSE, | Fuel connector to pump 356mm (14 in ) |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 | 0329695 | HOSE |
| 13 | 0310379 | SCREW |
| 15 | 5004610 | FITTING, Fuel manifold This part replaces 0395540. |
| 16 | 0333264 | CAP, Fuel manifold |
| 17 | 0303615 | GASKET |
