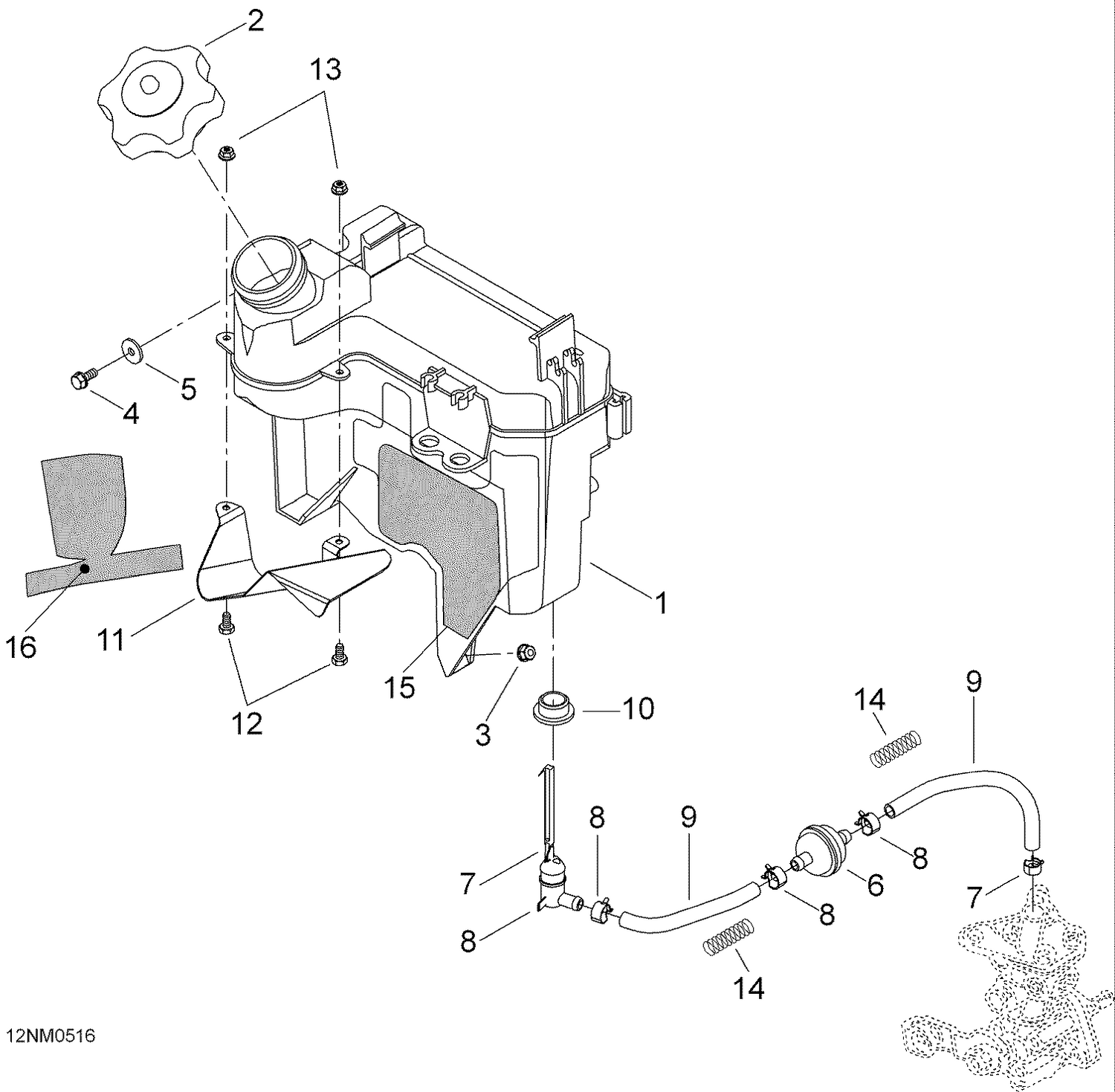

| Ref | Part Number | Description |
|---|
| 1 |
519000041 |
Injection Oil Tank |
| 2 |
519000042 |
CAP - Call your local BRP dealership |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 |
40327 |
Self tapping screw M6 |
| 5 |
20017 |
Serrated lock washer |
| 6 |
414536500 |
Fuel Filter |
| 7 |
414420700 |
Universal Spring Clamp |
| 8 |
414415200 |
Spring Clamp |
| 9 |
39046 |
Hose |
| 10 |
570023000 |
Insulating Ring |
| 11 |
5348098 |
Deflector |
| 12 |
40026 |
Screw M5 x 12 |
| 13 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 14 |
414940300 |
SPRING_COMPRESSION - Call your local BRP dealership |
| 15 |
519000059 |
REFLECTIVE SHEET - Call your local BRP dealership |
