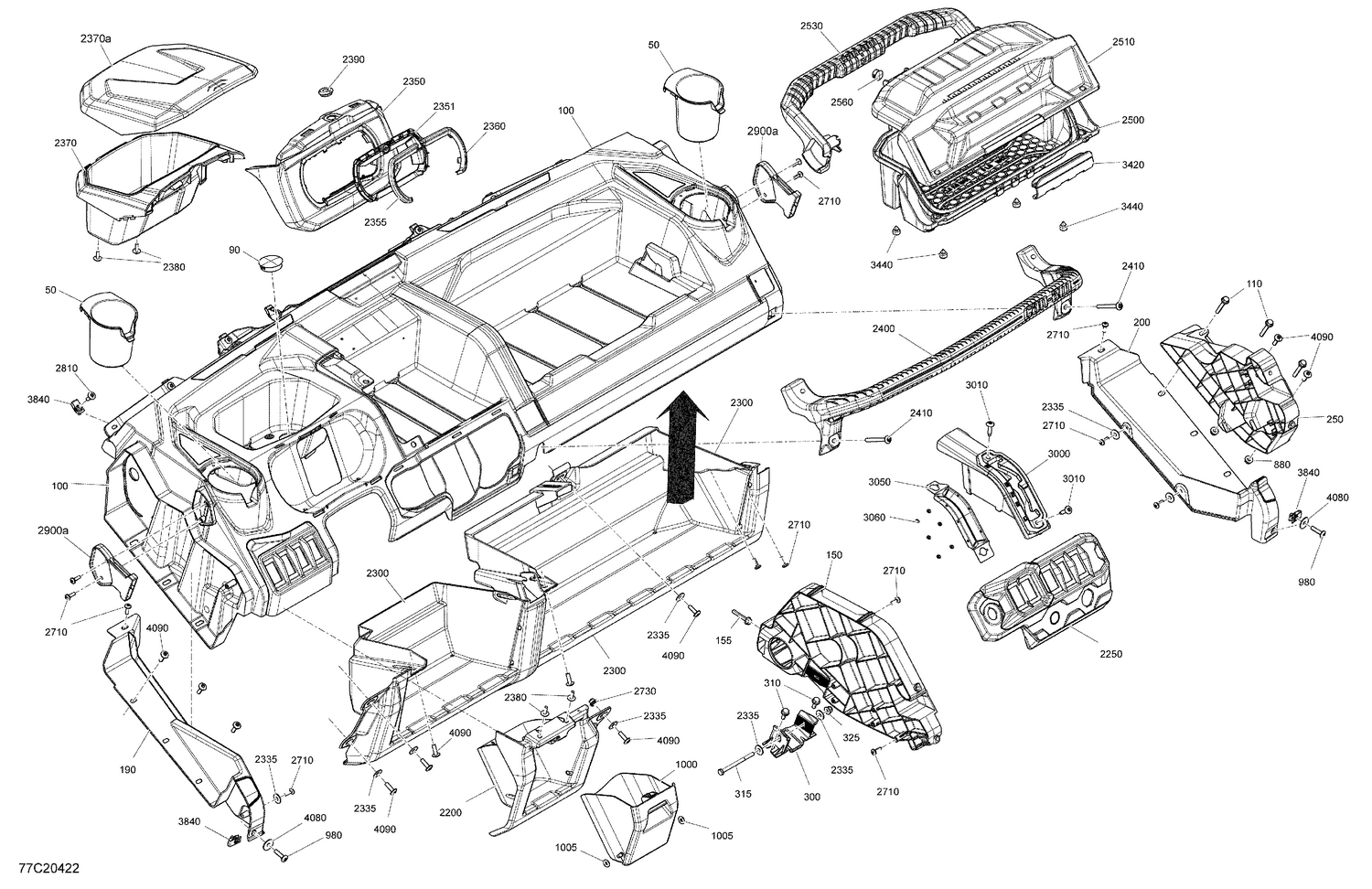

09- Cab Interior - Dashboard
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 707900288 | Cup Holder |
| 100 | 715007224 | Upper Dashboard Ass'y |
| 110 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 150 | 707900249 | Dash Support |
| 155 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 190 | 707900738 | LH Upper Deflector |
| 200 | 707900739 | RH Upper Deflector |
| 250 | 707900367 | RH Support |
| 300 | 707900940 | Plier This part replaces 707900402. |
| 310 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 315 | 207068044 | Hex. Screw M6 X 80 |
| 325 | 233261494 | Hex. Flange Elastic Nut M6 |
| 880 | 233161464 | Hex. Elastic Flange Nut M6 |
| 980 | 250000807 | Torx Truss Screw M6 X 25 |
| 2250 | 703501098 | Switch Support |
| 2351 | 709402742 | Gauge Trim This part replaces 709402093. |
| 2355 | 709402210 | Deep Black, LH Trim Gauge |
| 2360 | 709402211 | Deep Black, RH Trim Gauge |
| 2380 | 250000959 | Screw PT Type K-50 X 16 |
| 2390 | 705003264 | Grommet |
| 2400 | 707900248 | Passenger Handhold |
| 2410 | 250000648 | Torx Screw M6 X 60 |
| 2710 | 250000720 | Torx Screw K50 X 16 |
| 2730 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 2810 | 250000721 | Torx Truss Screw M6 X 16 |
| 2900a | 707900592 | Safety Net Link |
| 3000 | 707900608 | Shifter Gate |
| 3010 | 250000728 | Torx Screw M6 X 25 |
| 3050 | 707900506 | Shifter Gate Deflector |
| 3060 | 250100178 | Push Nut |
| 3840 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4080 | 250200162 | Flat Washer M6.6 X 22 |
