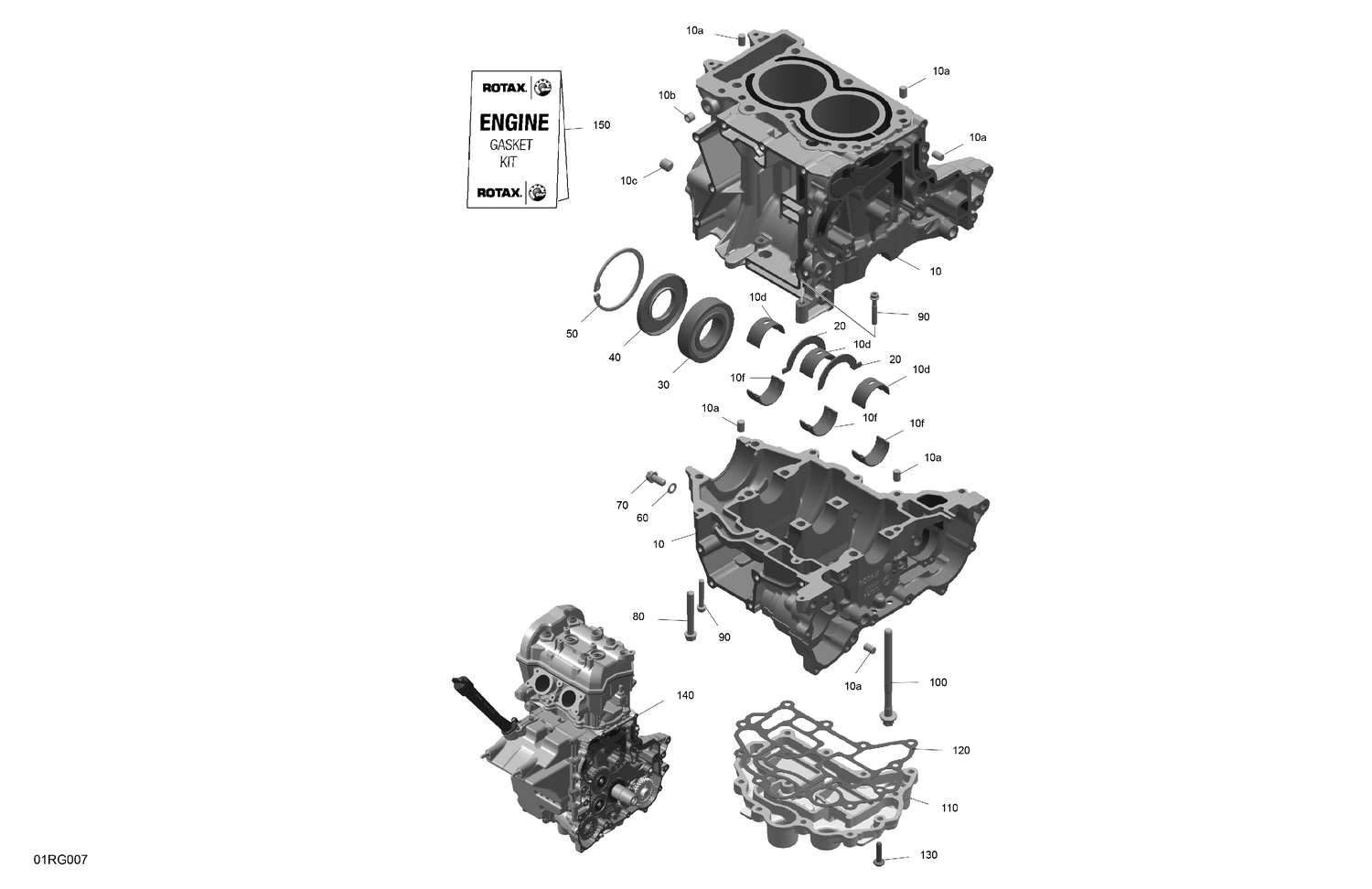

01- ROTAX - Crankcase
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 420632010 | Center Pin 8 X 12 |
| 10b | 420641323 | Plug Screw M10 X 1 |
| 10c | 420840500 | Threaded Pin |
| 10d | 420933180 | Cushion |
| 10f | 420933185 | Cushion |
| 20 | 420933140 | Ring Half |
| 30 | 420832232 | Ball Bearing |
| 40 | 420431402 | Oil Seal |
| 50 | 420845790 | Retaining Ring |
| 60 | 420950141 | Sealing Ring |
| 70 | 420440852 | Torx Flange Screw M8 X 16 |
| 80 | 420641213 | Torx Flange Screw M8 X 55 |
| 90 | 420440274 | Torx Flange Screw M6 X 35 |
| 100 | 420940945 | Torx Flange Screw M9 X 113 |
| 110 | 420911124 | Oil Sump |
| 120 | 420431630 | Gasket |
| 130 | 420841549 | Torx Flange Screw M6 X 25 |
| 140 | 420060203 | Long Block 602 |
