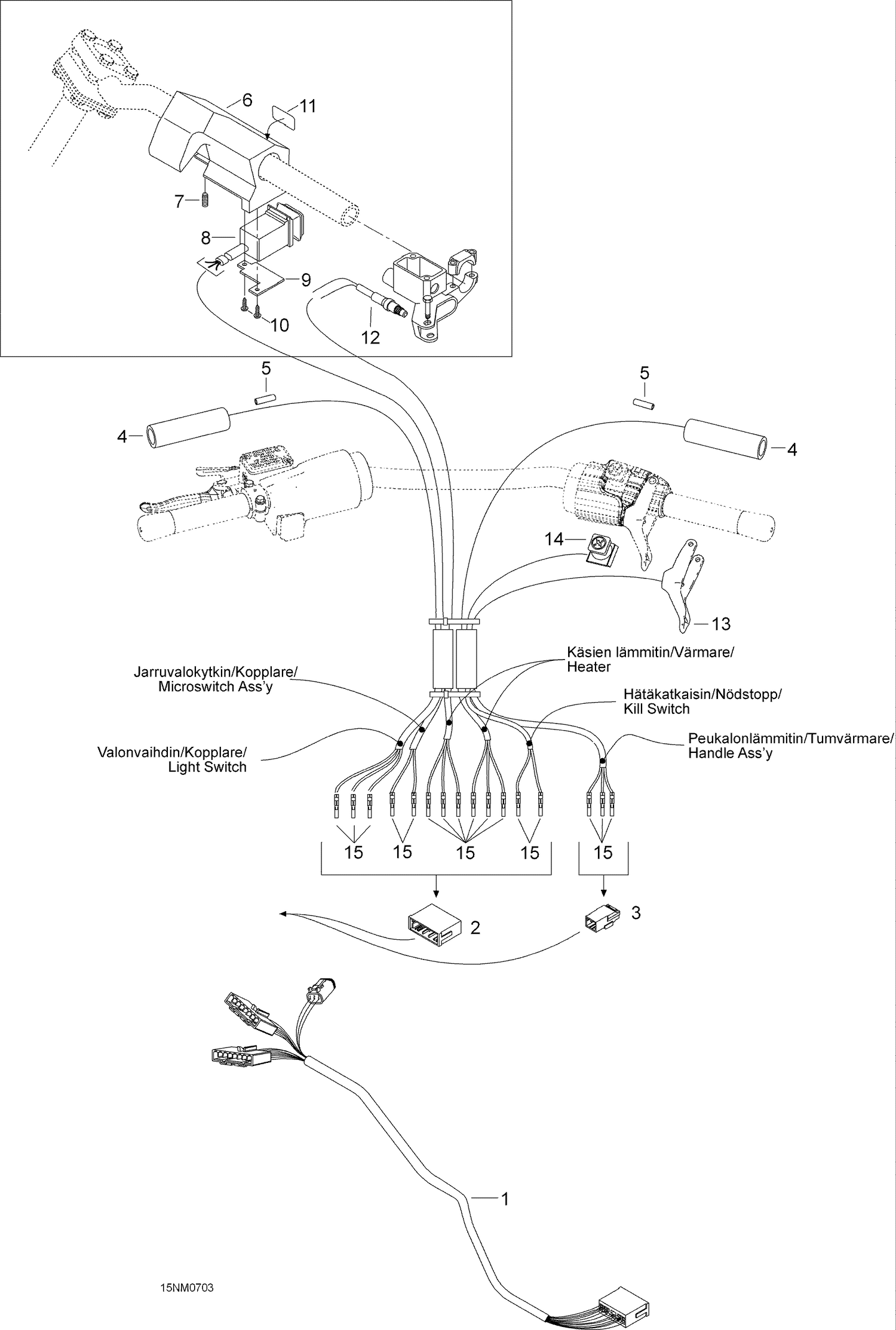

| Ref | Part Number | Description |
|---|
| 1 |
605253610 |
Wiring harness |
| 2 |
42617 |
Male connector housing (15 circuit) |
| 3 |
42271 |
Male connector housing (3 circuit) |
| 4 |
515175664 |
Heater |
| 5 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 6 |
572079500 |
DIMMER SWITCH HOUSING - Call your local BRP dealership |
| 7 |
414440800 |
Socket Set Screw M8 X 10 |
| 8 |
515175371 |
Switch |
| 9 |
517283800 |
Housing-plate |
| 10 |
414473200 |
Screw |
| 11 |
415025500 |
Switch decal |
| 12 |
507032366 |
Microswitch ass'y This part replaces 507032334. |
| 13 |
512060214 |
Handle Assy This part replaces 512059144. |
| 14 |
515177362 |
Kill Switch This part replaces 414612700. |
