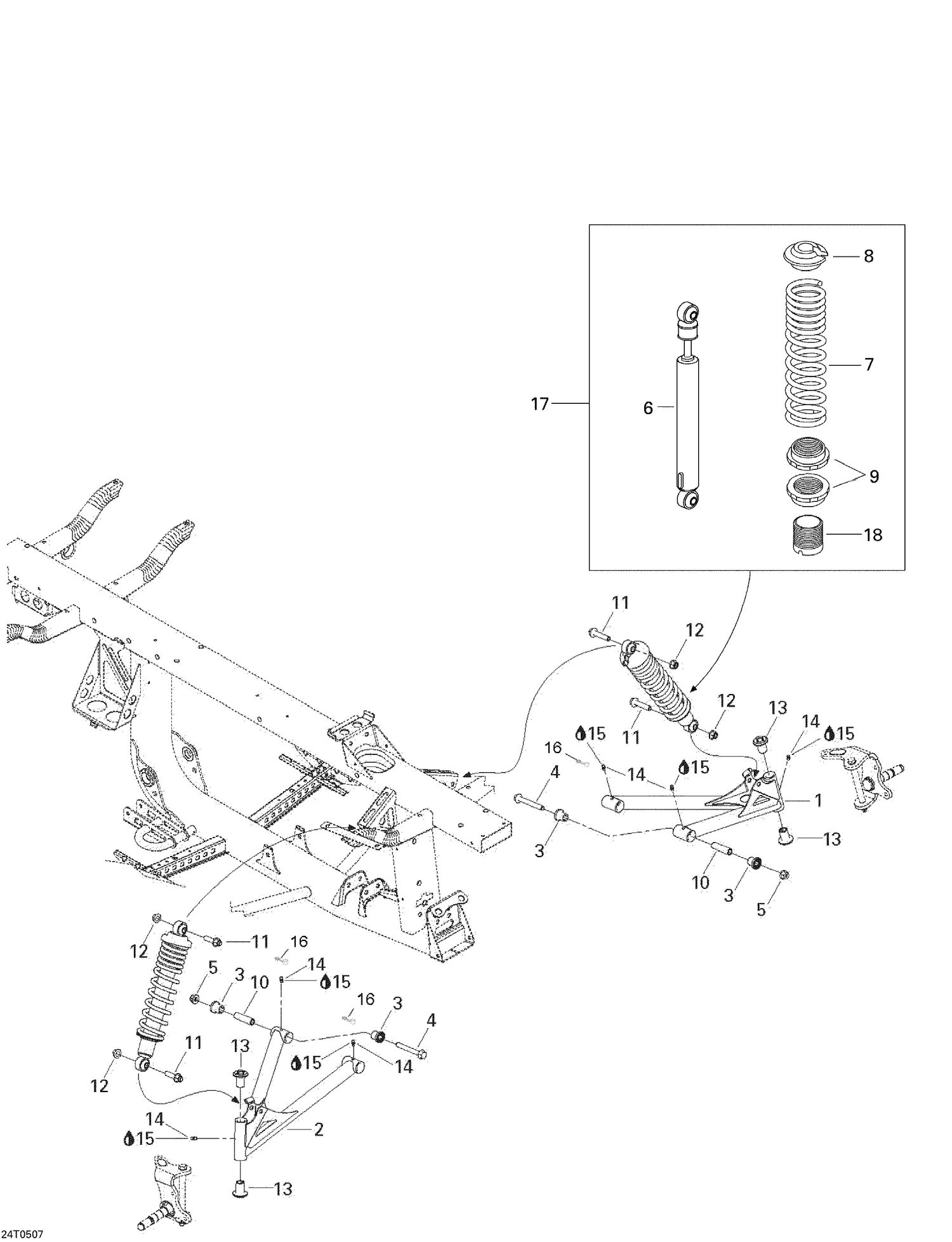

07- Front Suspension
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706200175 | LH ARM - Call your local BRP dealership |
| 2 | 706200176 | RH Arm |
| 3 | 706200063 | Cushion |
| 4 | A9600010080 | SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 5 | A9035110000 | Elastic Flange Nut M10 |
| 6 | A51411179000 | Front Shock |
| 7 | A51401179000 | Front Spring |
| 8 | A51402179000 | Spring Stopper |
| 9 | A51421179000 | Spring Seat |
| 10 | 706200177 | INNER BUSHING - Call your local BRP dealership |
| 11 | A9600010050 | Hex. Flange Screw M10 X 50 |
| 12 | A9035110000L | Elastic Flange Nut M10 |
| 13 | 706200169 | CUSHION - Call your local BRP dealership |
| 14 | 408200700 | Grease Fitting |
| 15 | 293550010 | Synthetic Grease, 400 G |
| 16 | A9650206000 | GREASE VALVE CAP - Call your local BRP dealership |
| 17 | A51400179000 | Front Shock Ass'y |
