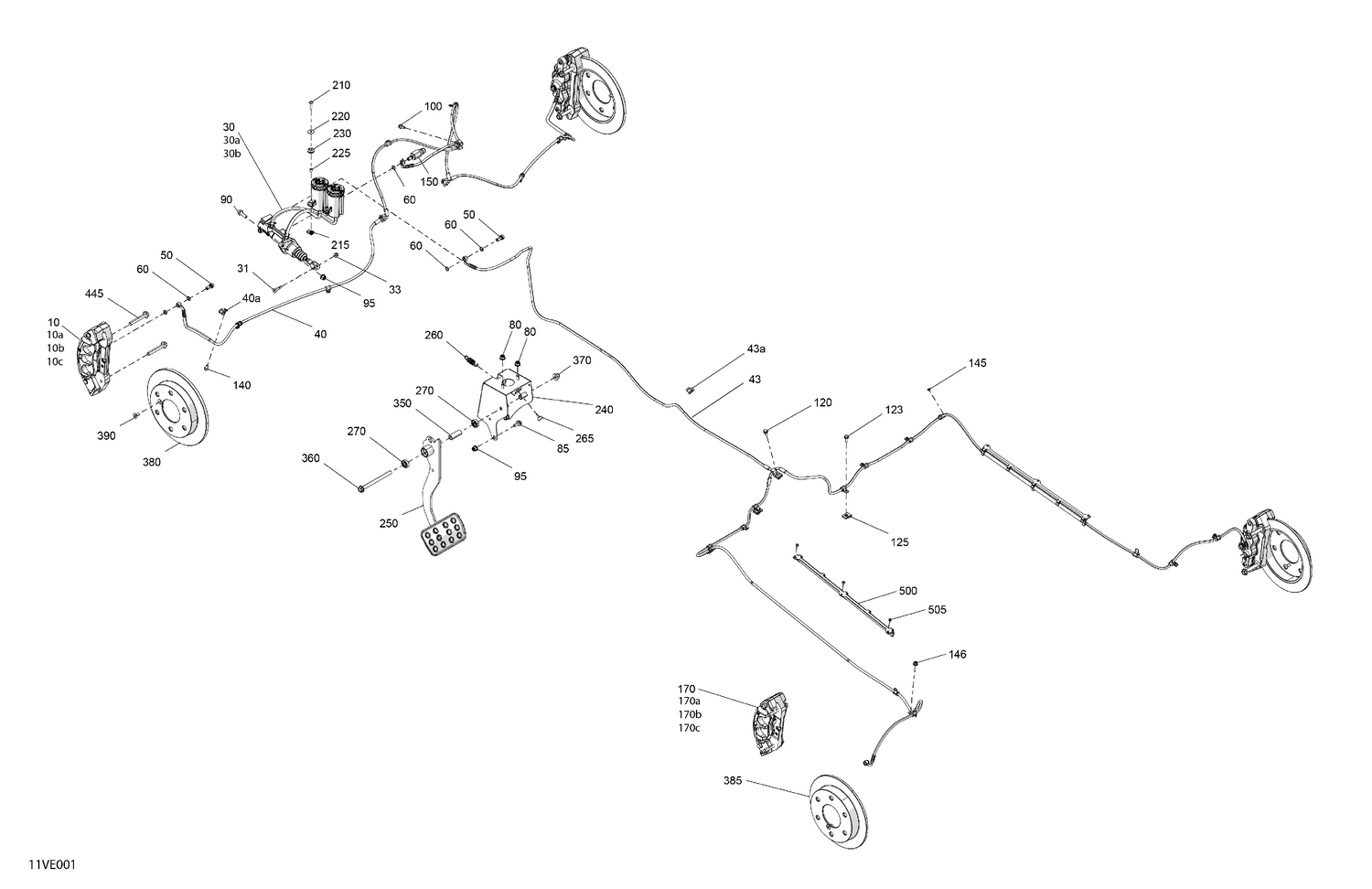

03- Mechanic - Brake System
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 703501223 | Triple Piston Brake Pad Kit |
| 10b | 703501224 | Caliper Pin & Boot Kit |
| 10c | 703501225 | Bleeder Bolt & Cap Kit |
| 30a | 715900788 | Reservoir Kit |
| 30b | 715900789 | Pusher Kit |
| 31 | 250000669 | Socket Head Screw M8 X 16 |
| 33 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 40a | 293650256 | Clamp |
| 43a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 80 | 233281414 | Hex. Flange Elastic Nut M8 |
| 85 | 207682044 | Hex. Flange Screw M8 X 20 |
| 90 | 207682544 | Hex. Flange Screw M8 X 25 |
| 95 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 120 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 123 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 125 | 250100208 | Panel Nut M6 X 1.0 |
| 140 | 210261040 | Hex. Flange Screw M6 X 10 |
| 145 | 293150293 | Pop Rivet 3/16 X ,425 |
| 146 | 233261466 | Hex. Flange Elastic Nut M6 |
| 150 | 705601950 | Brake Switch |
| 170a | 703501226 | Dual Piston Brake Pad Kit |
| 170b | 703501224 | Caliper Pin & Boot Kit |
| 170c | 703501225 | Bleeder Bolt & Cap Kit |
| 210 | 250000762 | Torx Screw M5 X 25 |
| 215 | 250000958 | Panel Nut M5 X 0.8 |
| 220 | 250200040 | Flat Washer |
| 225 | 293900112 | Bushing |
| 230 | 414036300 | Grommet |
| 240 | 705209638 | Pedal Support |
| 250 | 705601930 | Brake Pedal |
| 260 | 705600792 | Brake Pedal Spring |
| 265 | 708000759 | Rubber Stopper |
| 270 | 705601974 | Ball Bearing |
| 350 | 705601275 | Bushing |
| 360 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 370 | 233201436 | Hex. Flange Elastic Nut M10 |
| 380 | 705601800 | Disc Brake |
| 385 | 705601799 | Disc Brake |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 445 | 207507046 | Hex. Screw M10 X 70, Scotch Grip |
| 500 | 706204783 | Hose Support |
