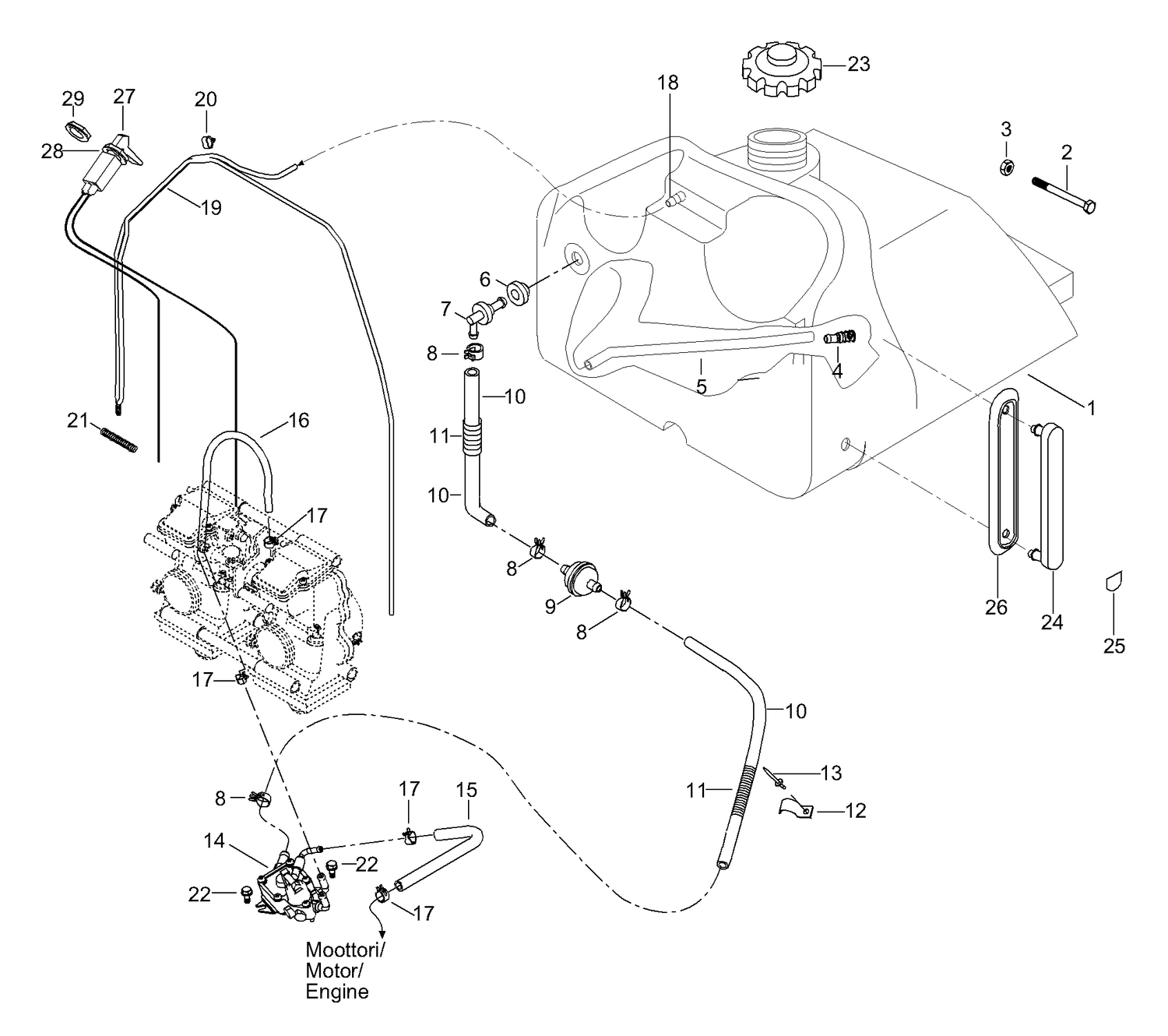

02- Fuel Tank
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5146246 | Fuel tank |
| 2 | 40002 | Screw M6x40 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 | 414872100 | Fuel filter |
| 5 | 39048 | Fuel line 12.5/7.5 |
| 6 | 280000674 | Grommet This part replaces 28037. |
| 7 | 5341709 | CONNECTOR-MALE - Call your local BRP dealership |
| 8 | 414415200 | Clamp |
| 9 | 414536500 | Fuel filter |
| 10 | 39046 | Hose 11/8 |
| 11 | 28015 | Tubing |
| 12 | 415018200 | CLIP - Call your local BRP dealership |
| 13 | 36036 | Rivet |
| 14 | 403901806 | FUEL PUMP - Call your local BRP dealership |
| 15 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 16 | 39038 | Fuel line 6.5/9.5 |
| 17 | 414420700 | Universal Spring Clamp |
| 18 | 19051 | Fitting |
| 19 | 39035 | Airhose 5/3 |
| 20 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 21 | 414818200 | SPRING - Call your local BRP dealership |
| 22 | 40331 | Self tapp. screw M6x16 |
| 23 | 513033025 | Fuel Tank Cap This part replaces 580259400. |
| 24 | 572015900 | Fuel gauge |
| 25 | 549200 | Fuel label |
| 26 | 570018000 | Housing gauge |
| 28 | 394103300 | Lock washer |
