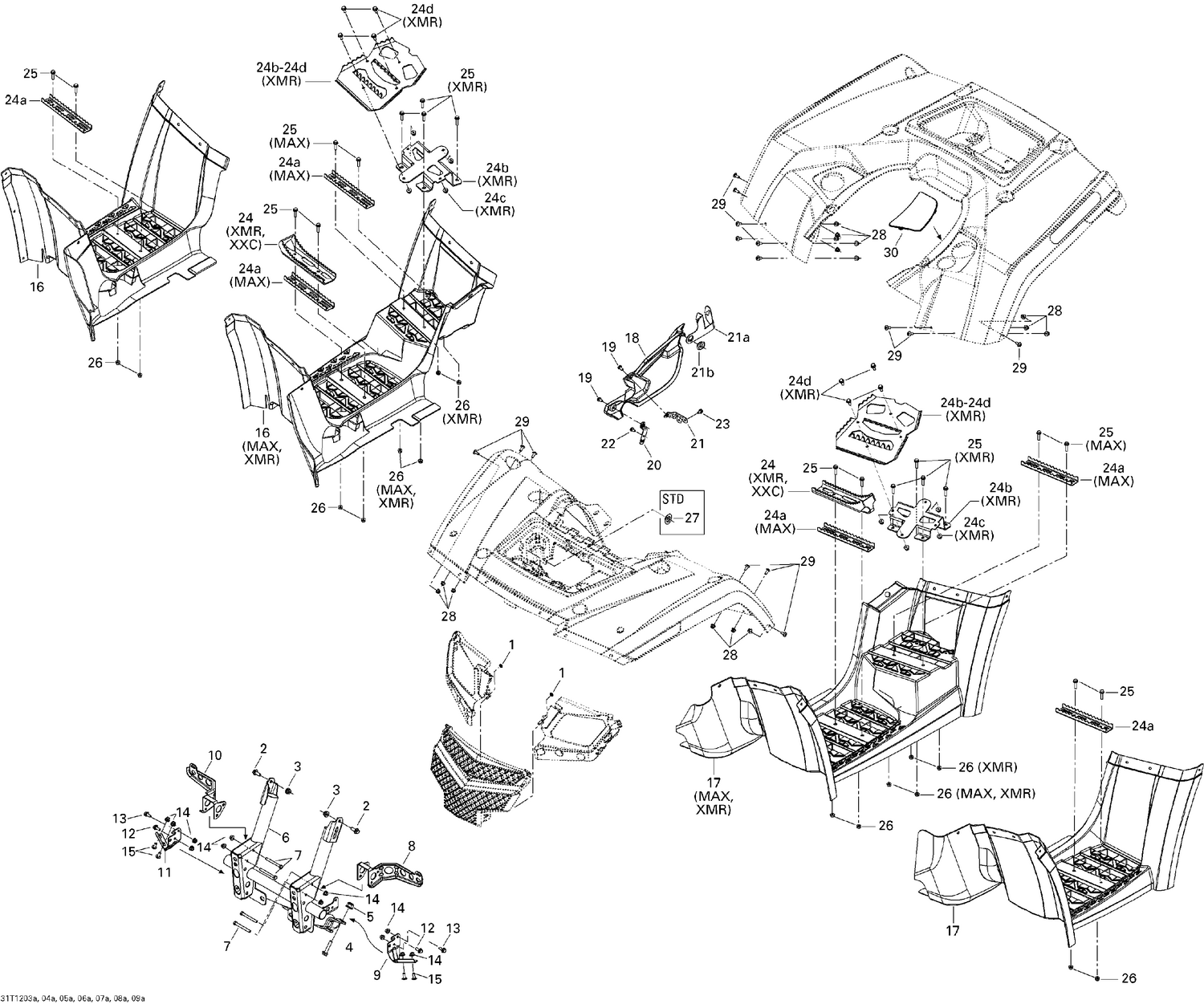

| Ref | Part Number | Description |
|---|
| 1 |
732610072 |
Push Nut |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 4 |
207603044 |
Hex. Flange Screw M10 X 30 |
| 5 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 6 |
705003654 |
FRONT BUMPER - Call your local BRP dealership |
| 7 |
207066044 |
Hex. Screw M6 X 60 |
| 8 |
705002925 |
LH FACIA SUPPORT - Call your local BRP dealership |
| 9 |
705003037 |
LH LOWER FACIA SUPPORT - Call your local BRP dealership |
| 10 |
705002926 |
RH FACIA SUPPORT - Call your local BRP dealership |
| 11 |
705003039 |
RH LOWER FACIA SUPPORT - Call your local BRP dealership |
| 12 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 13 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 15 |
250000755 |
Torx Screw M6 X 16 This part replaces 250000261. |
| 18 |
705003839 |
ENGINE COVER - Call your local BRP dealership |
| 19 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 20 |
705003646 |
Engine Cover Support |
| 21 |
705011461 |
Engine Cover Support This part replaces 705002667. |
| 21a |
XXX |
Not Available As Spare Parts |
| 21b |
XXX |
Not Available As Spare Parts |
| 22 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 23 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 24 |
XXX |
Not Available As Spare Parts |
| 24a |
705003648 |
Footrest |
| 24b |
XXX |
Not Available As Spare Parts |
| 24c |
XXX |
Not Available As Spare Parts |
| 24d |
XXX |
Not Available As Spare Parts |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 29 |
250000755 |
Torx Screw M6 X 16 This part replaces 250000261. |
| 30 |
705017923 |
LH Rear Body Panel Cap This part replaces 705001910. |
