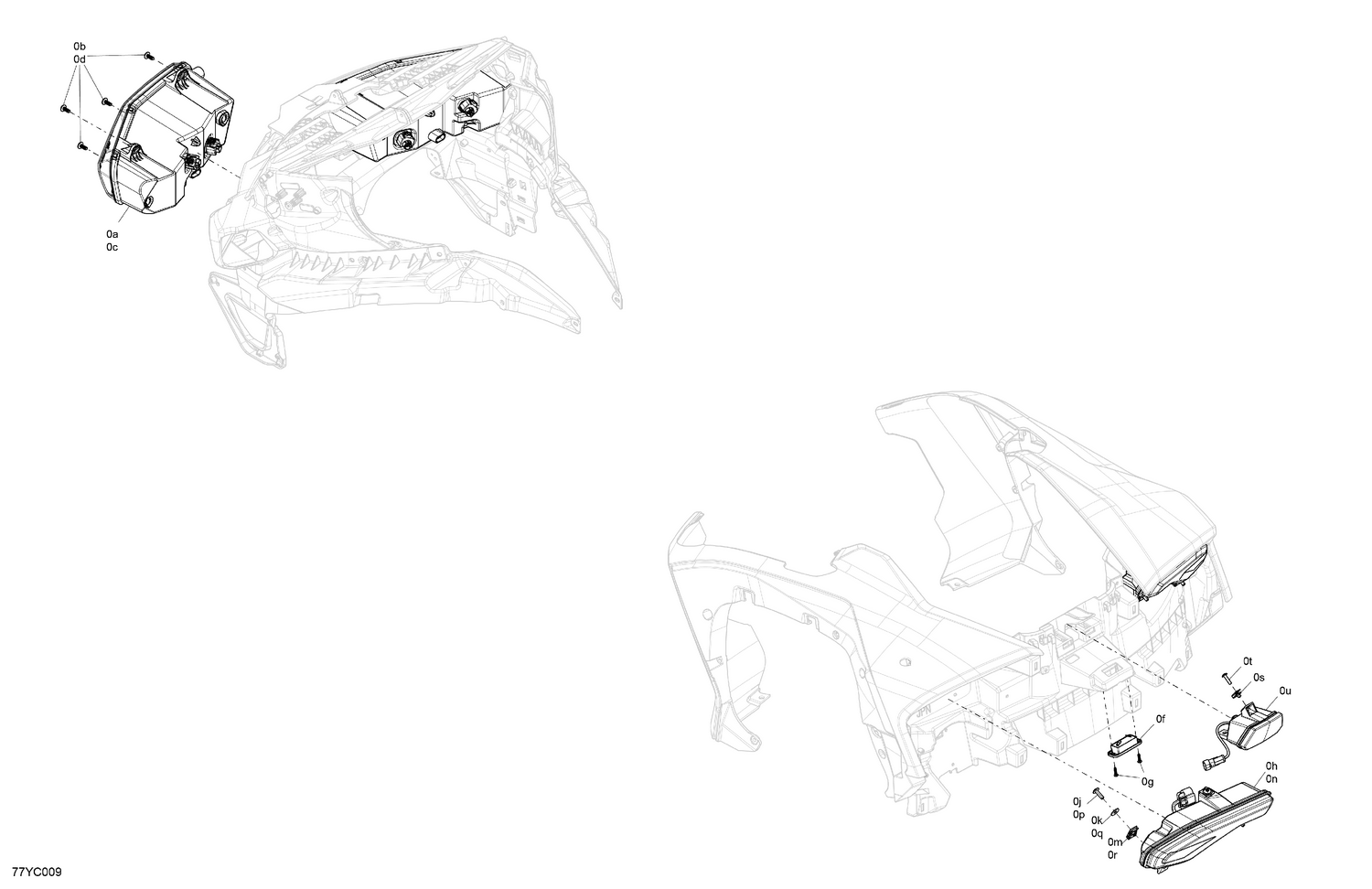

08- Electric - Vehicle Lighting
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 0a | 710006578 | LH Headlight |
| 0b | 250000546 | Oval Head Torx Screw K60 X 16 |
| 0c | 710006579 | RH Headlight |
| 0d | 250000546 | Oval Head Torx Screw K60 X 16 |
| 0f | 710005501 | License Light |
| 0g | 250001123 | Hex. Flange Screw K40 X 16 |
| 0h | 710007002 | LH Tail Light |
| 0j | 250000722 | Torx Screw M6 X 20 |
| 0k | 250200164 | Flat washer M6 |
| 0m | 250100208 | Panel Nut M6 X 1.0 |
| 0n | 710007004 | RH Tail Light |
| 0p | 250000722 | Torx Screw M6 X 20 |
| 0q | 250200164 | Flat washer M6 |
| 0r | 250100208 | Panel Nut M6 X 1.0 |
| 0s | 250000958 | Panel Nut M5 X 0.8 |
| 0t | 250000715 | Torx Truss Screw M5 X 20 |
