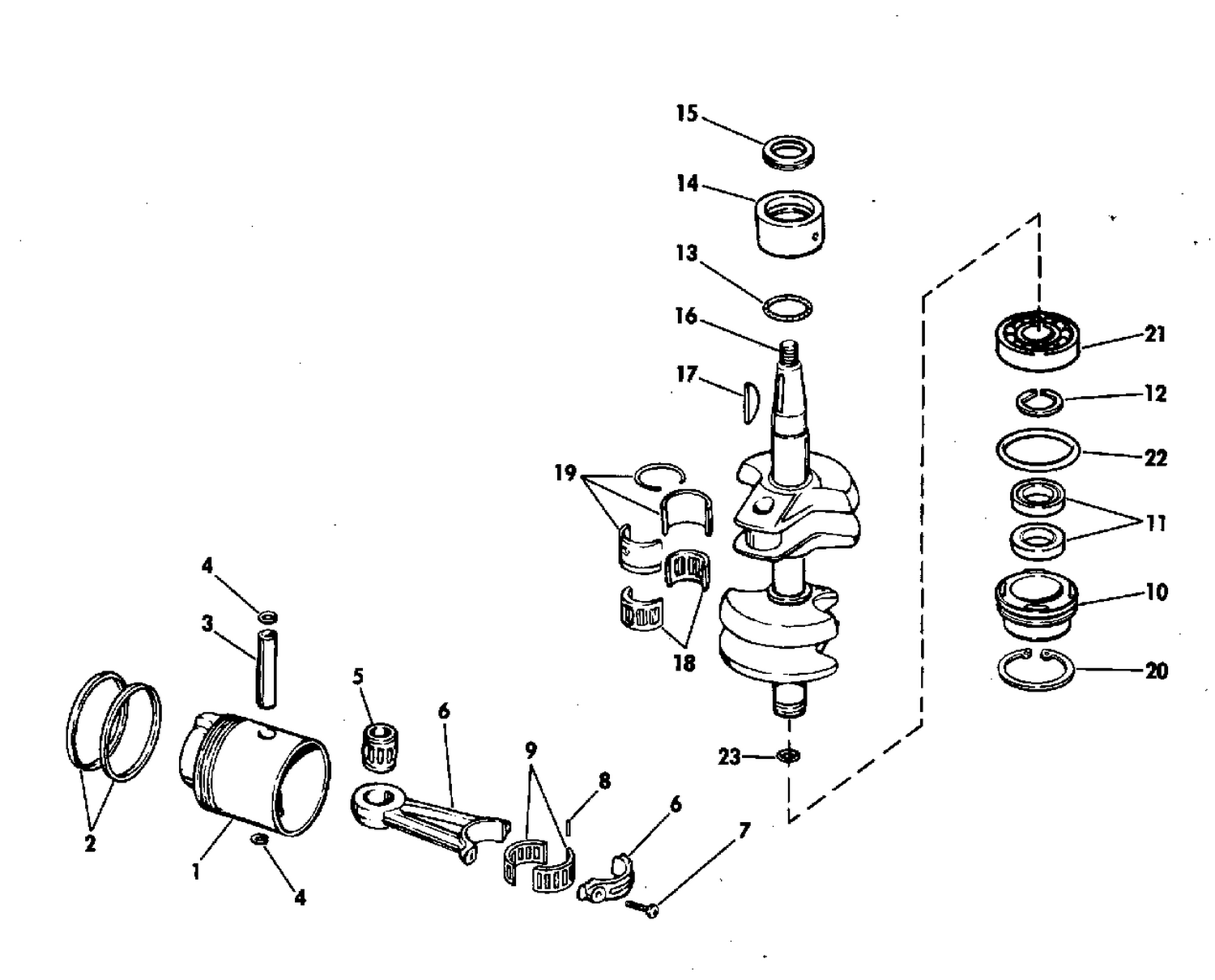

| Ref | Part Number | Description |
|---|
| 1 |
0384692 |
PISTON, Std |
| 1 |
0384715 |
PISTON, .030 o.s |
| 2 |
0391170 |
RING SET STD. This part replaces 0385810. |
| 2 |
0391416 |
RING SET .030 This part replaces 0385811. |
| 3 |
0320663 |
WRIST PIN This part replaces 0307148. |
| 4 |
0302577 |
RETAINING RING |
| 5 |
0378251 |
BEARING SET, Needle, wrist pin |
| 6 |
0378275 |
CONNECTING ROD ASSY |
| 8 |
0378515 |
BEARING SET, Needle,connecting rod |
| 9 |
0437088 |
BEARING Assy This part replaces 0378528. |
| 10 |
0386162 |
HEAD, Crankcase |
| 13 |
0313754 |
O RING |
| 14 |
0382596 |
ROLLER BEARING & SEAL ASSEMBLY |
| 16 |
0393803 |
CRANKSHAFT This part replaces 0386075. |
| 18 |
0378252 |
BEARING ASSY., Needle |
| 19 |
0310433 |
SLEEVE |
| 20 |
0319345 |
SNAP RING |
| 22 |
0308876 |
O RING CRANKCASE HEAD LOWER |
