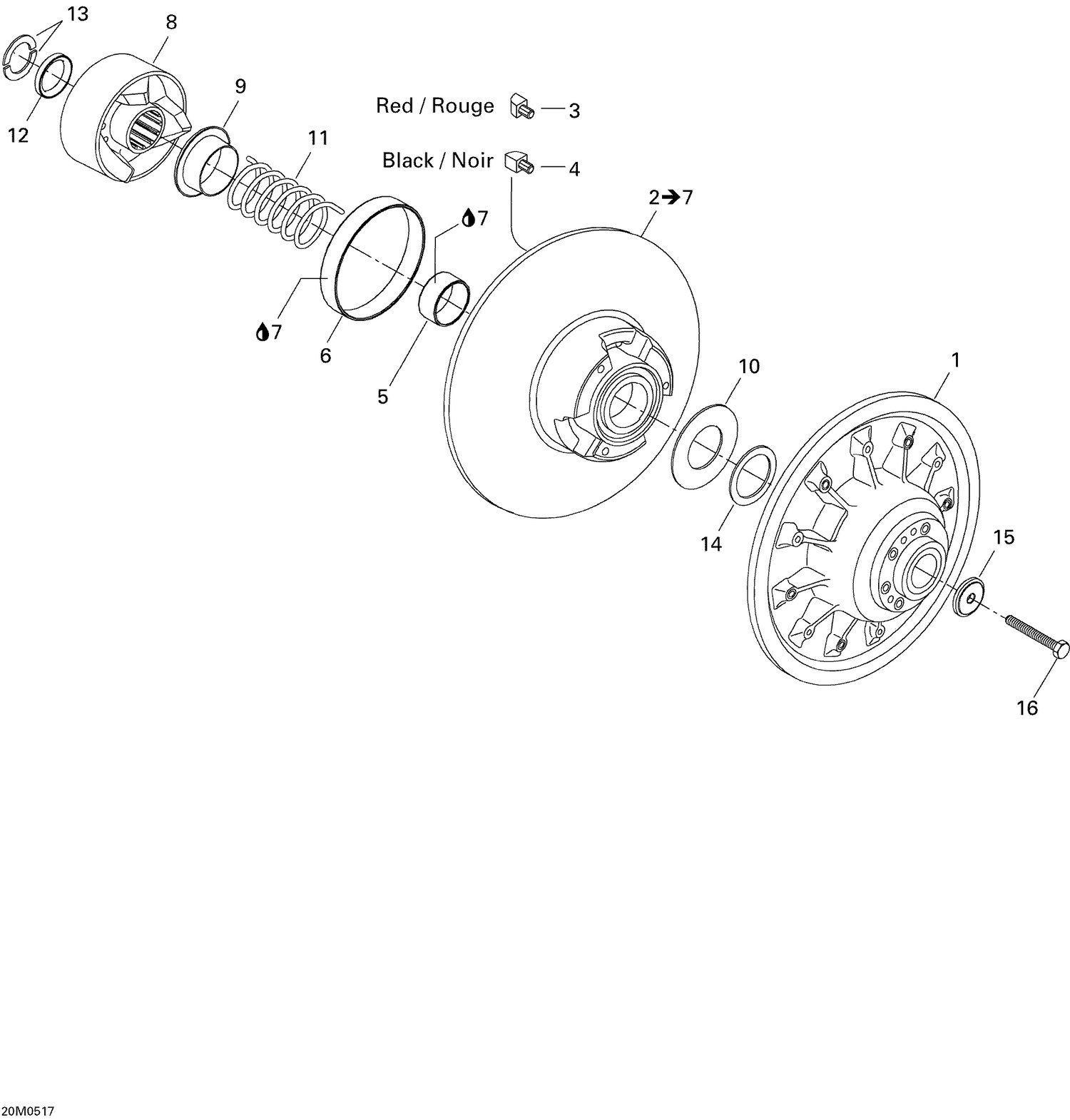

| Ref | Part Number | Description |
|---|
| 1 |
417126401 |
FIXED FLANGE ASS'Y - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - Rear Slide Cam Shoe |
| 4 |
Not |
Available As Spare Part - Front Slide Cam Shoe |
| 5 |
Not |
Available As Spare Part - Bushing |
| 6 |
Not |
Available As Spare Part - Bushing |
| 7 |
413703100 |
Loctite 609, 10 ml |
| 8 |
417126457 |
Cam Ass'y |
| 9 |
415006000 |
GUARD - Call your local BRP dealership |
| 10 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 11 |
415092800 |
YELLOW SPRING - Call your local BRP dealership |
| 12 |
417126368 |
Spacer |
| 13 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 14 |
504112300 |
SHIM - Call your local BRP dealership |
| 15 |
517302322 |
Strength Washer |
