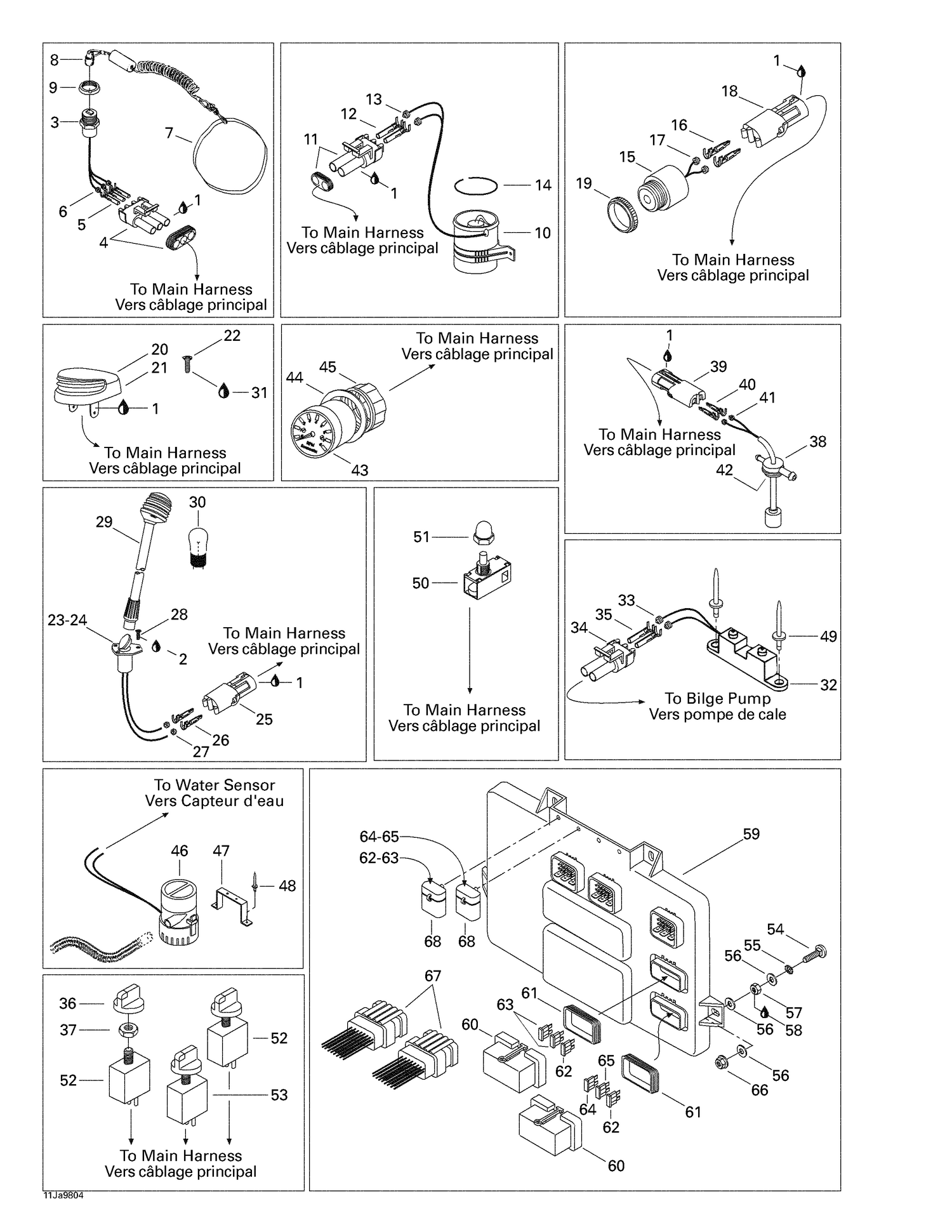

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 2 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 4 |
278000273 |
Male Housing, 3 Circuits |
| 5 |
278000223 |
Female Terminal |
| 6 |
278000218 |
Wire Seal |
| 7 |
204470025 |
Safety Strap |
| 8 |
278002199 |
Safety Lanyard, Antitheft This part replaces 295500444. |
| 9 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 11 |
278000220 |
Male Connector, 2 Circuits |
| 12 |
278000223 |
Female Terminal |
| 13 |
278000218 |
Wire Seal |
| 14 |
204000133 |
BROACH - Call your local BRP dealership |
| 16 |
278000222 |
Male Terminal |
| 17 |
278000218 |
Wire Seal |
| 18 |
278000217 |
Female Housing, 2 Circuits |
| 19 |
278000707 |
Buzzer Nut |
| 20 |
204470071 |
Front Lamp |
| 21 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 22 |
208641660 |
Phillips Screw M4 X 16 This part replaces 211000011. |
| 24 |
204471177 |
Rear Lamp Base Ass'y |
| 25 |
278000217 |
Female Housing, 2 Circuits |
| 26 |
278000222 |
Male Terminal |
| 27 |
278000218 |
Wire Seal |
| 28 |
216142060 |
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership |
| 30 |
204470053 |
Bulb |
| 31 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 33 |
278000218 |
Wire Seal |
| 34 |
278000220 |
Male Connector, 2 Circuits |
| 35 |
278000223 |
Female Terminal |
| 36 |
278000542 |
SWITCH CAP - Call your local BRP dealership |
| 37 |
278000647 |
Switch Nut |
| 39 |
278000217 |
Female Housing, 2 Circuits |
| 40 |
278000222 |
Male Terminal |
| 41 |
278000218 |
Wire Seal |
| 42 |
204470104 |
Grommet |
| 43 |
204470144 |
Fuel/Oil Gauge |
| 44 |
204470145 |
Gasket |
| 45 |
204470146 |
Gauge Nut |
| 46 |
278002020 |
Bilge Pump This part replaces 204470220. |
| 47 |
292000236 |
Bilge Pump Support |
| 48 |
Not |
Available As Spare Part - Rivet (5/32) |
| 49 |
293150050 |
Pop Rivet 5/32 |
| 50 |
278000622 |
RH IGNITION SWITCH - Call your local BRP dealership |
| 51 |
278000565 |
IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 52 |
278000540 |
Fan Switch |
| 53 |
278000541 |
Light Switch |
| 54 |
204000130 |
Elevator Bolt |
| 55 |
213400001 |
WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership |
| 56 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 57 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 58 |
293800005 |
Loctite 271, 10 ml |
| 60 |
278002102 |
FUSE COVER - Call your local BRP dealership This part replaces 278001069. |
| 61 |
278001070 |
Cover Seal |
| 62 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 63 |
278000344 |
Fuse, 5 Amperes |
| 64 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 65 |
278001197 |
Fuse, 10 Amperes |
| 66 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 67 |
204470180 |
Harness Ass'y |
