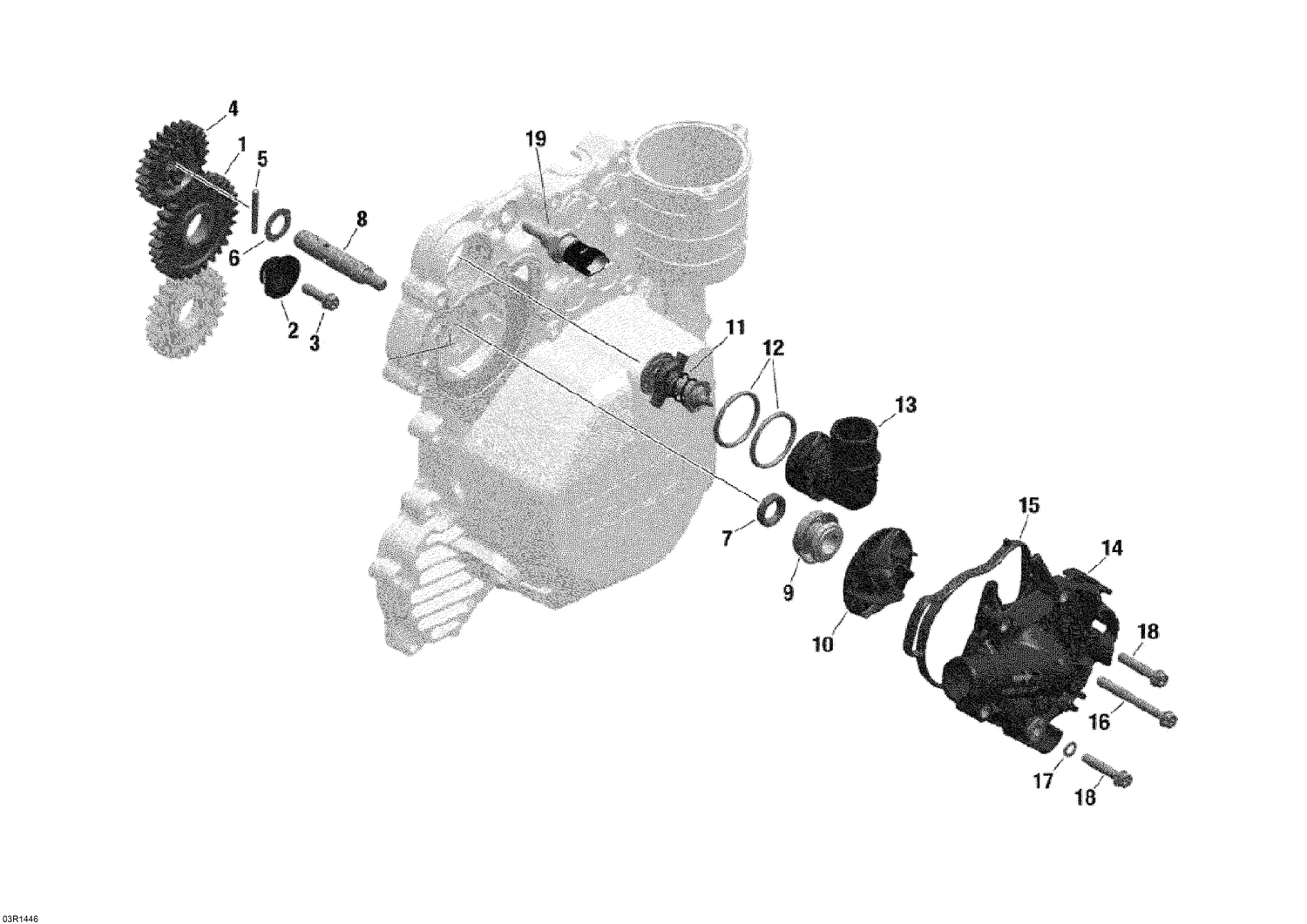

01- Cooling System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420835067 | Idle Gear, 31 Teeth This part replaces 420835059. |
| 2 | 420947396 | Graduated Spacer This part replaces 420947390. |
| 3 | 420440207 | Torx Flange Screw M6 X 20 |
| 4 | 420835230 | Water Pump Gear |
| 5 | 420232431 | Needle Pin This part replaces 420232430. |
| 6 | 420827261 | Thrust Washer |
| 8 | 420820150 | Waterpump Shaft |
| 9 | 420850946 | Seal |
| 10 | 420222880 | Water Impeller |
| 11 | 420822655 | Thermostat This part replaces 420822650. |
| 13 | 420922150 | Thermostat Cover |
| 16 | 420440702 | Torx Flange Screw M6 X 55 |
| 17 | 420230415 | Seal Washer |
| 18 | 420440647 | Torx Flange Screw M6 X 30 |
