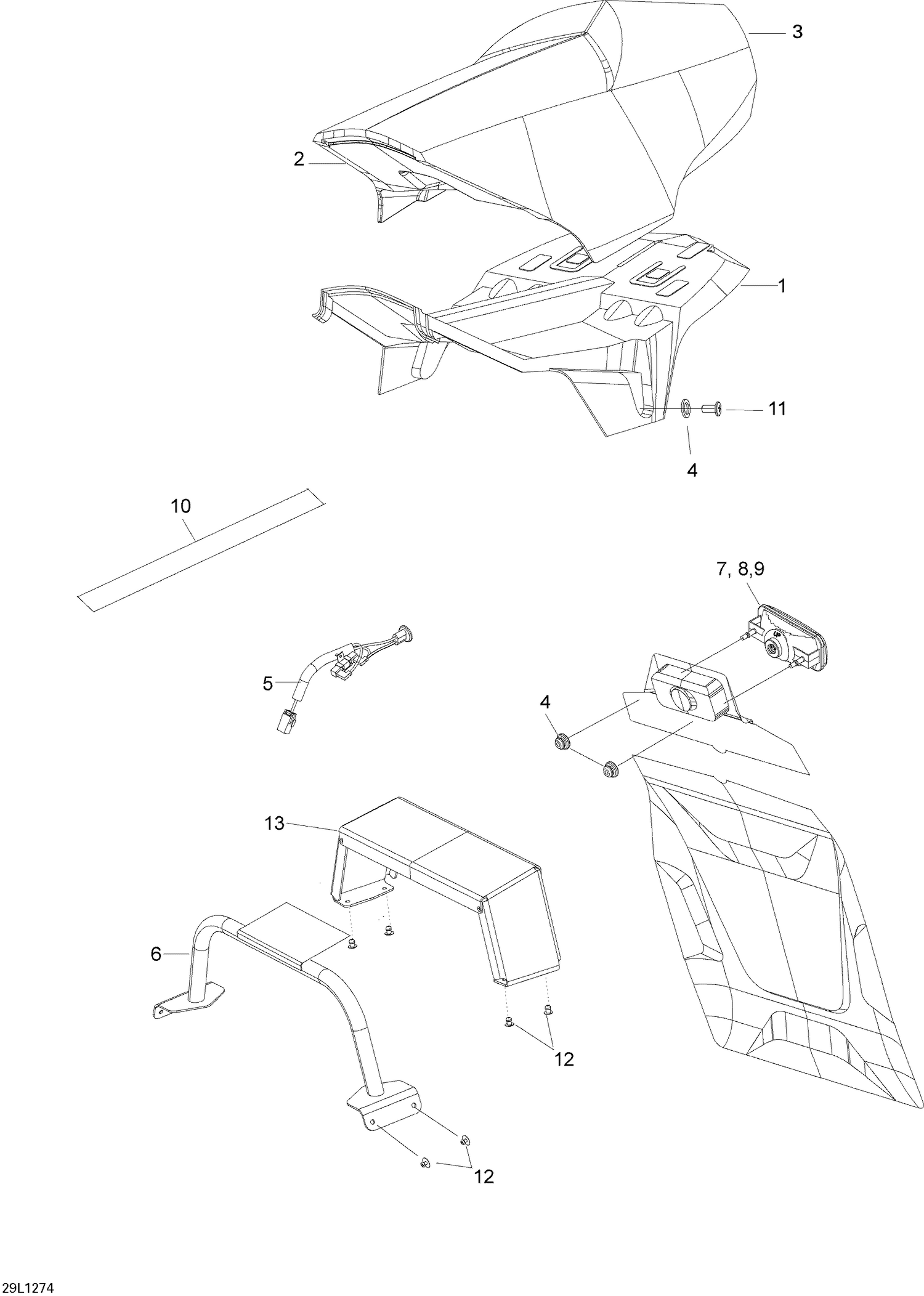

09- Seat
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004899 | BASE-SEAT - Call your local BRP dealership |
| 2 | 510005189 | Foam |
| 3 | 510005530 | COVER, SEAT RAVE RE 2012 WHITE SEAM - Call your local BRP dealership |
| 4 | 510005346 | Washer |
| 5 | 515176746 | HARNESS - Call your local BRP dealership |
| 6 | 510005152 | Support |
| 8 | 710000652 | Rear Lens Box |
| 9 | 710000653 | BULB - Call your local BRP dealership |
| 10 | 520000829 | Radiator Trim |
| 11 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 12 | 390909100 | Avex Rivet |
