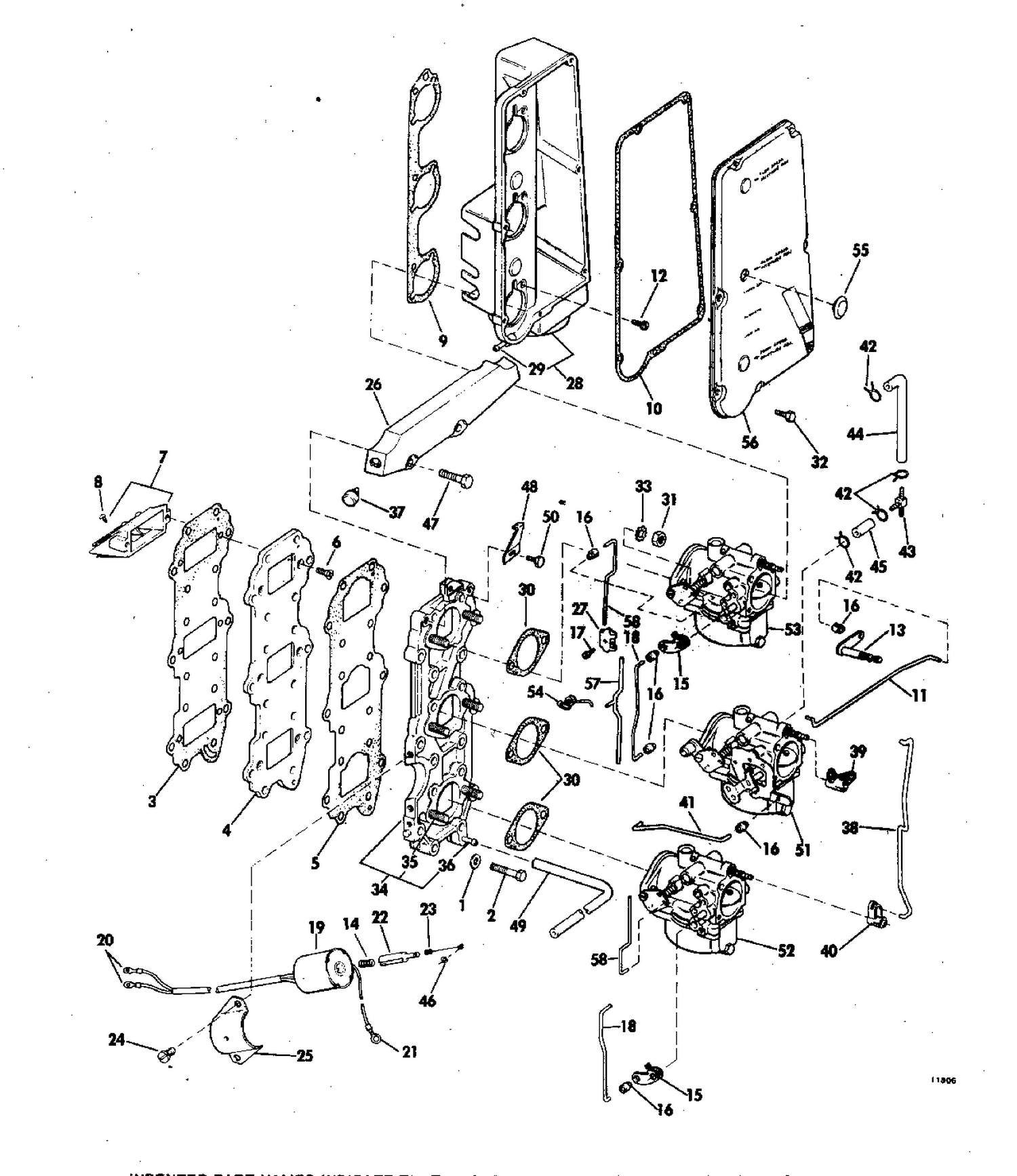

INTAKE MANIFOLD

INTAKE MANIFOLD

Parts (49)

RefPart NumberDescription
1 0302471 W.ASHER, Plain
2 0303398 VIS, support This part replaces 0302030.
3 0326926 GASKET, Plat to manifold This part replaces 0317307.
4 0317306 BASE, Leaf plate
5 0317305 GASKET, Manifold to base
6 0307609 SCREW
7 0389731 LEAF PLATE ASSEMBLY This part replaces 0382442.
9 0314115 GASKET, Air silencer
10 0314322 GASKET, Base to cover
11 0315922 LINK, Slow speed adjust
12 0314496 SCREW, Air silencer
13 0384177 SHAFT, Slow speed
14 0314739 SPRING, Plunger to solenoid
15 0378984 ARM & SCREW
16 0313329 LOCKWASHER, Carburetor link
17 0303686 SCREW, Fastener
18 0314310 LINK, Carburetor choke
19 0384226 SOLENOID ASSEMBLY
22 0313636 PLUNGER
23 0314193 SPRING, Choke solenoid
24 0319292 SCREW, Clamp This part replaces 0308762.
25 0314327 CLAMP, Choke solenoid
26 0339776 BRACKET, Engine cover This part replaces 0316647.
27 0318974 FASTENER, Cable clamp This part replaces 0314886.
28 0384186 BASE & NIPPLE ASSEMBLY
30 0325092 GASKET This part replaces 0314477.
32 0314576 SCREW
33 0306799 L'WASHER,Bracket to hsg.
34 0386662 MANIFOLD, Intake This part replaces 0385140.
37 0314021 BUMBER, Exhaust manifold
38 0314119 LINK, Slow speed adjust
39 0315924 ARM, Slow speed adj., middle
40 0313792 ARM, Slow spd adj., upper & lower
41 0315921 LINK, Choke lever to bellcrank
42 0302647 CLAMP
44 0333387 FLEXIBLE, soupape de retenue vers raccord inférieur This part replaces 0314512.
45 HOSE, Tee to carb., middle
46 0307529 JOINT TORIQUE, galet vers contre-came
47 0306418 VIS, ancrage
48 0316646 TIMING POINTER
49 HOSE, Air silencer to manifold
50 0303212 VIS, collier & capot
51 0385129 CARBURETOR ASSY., Middle
52 0385130 CARBURETOR ASSY., Lower
53 0385128 CARBURETOR ASSY., Lower
54 0314807 SPRING
55 0316074 BOUCHON, couvercle de volant-moteur
56 0315940 COVER, Air silencer
57 0384564 LINK & PIN, Middle arm
