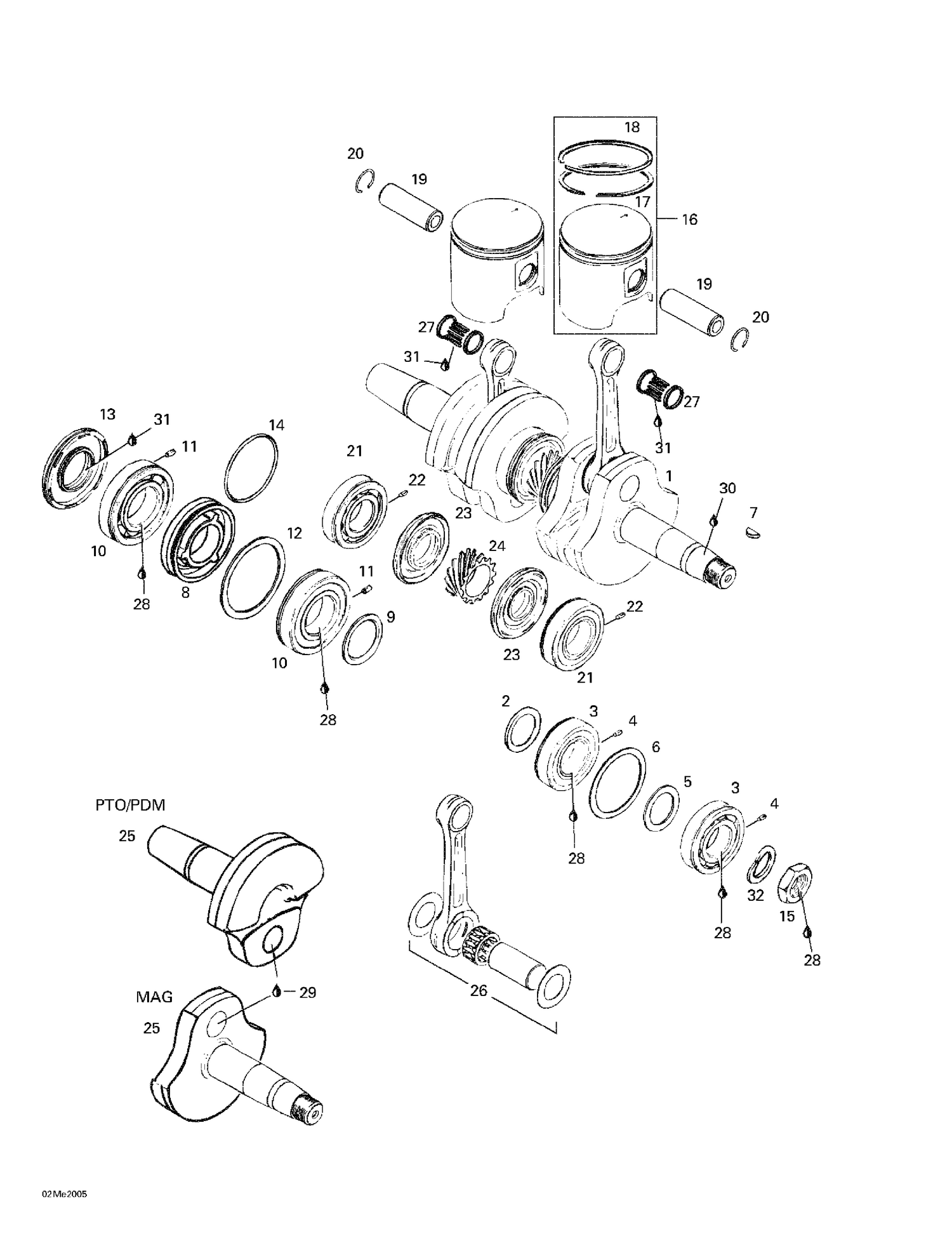

| Ref | Part Number | Description |
|---|
| 2 |
420827445 |
DISTANCE RING - Call your local BRP dealership |
| 4 |
420929972 |
Dowel Pin |
| 5 |
420427684 |
ADJUSTMENT WASHER - Call your local BRP dealership |
| 6 |
420827050 |
RETAINING DISK - Call your local BRP dealership |
| 7 |
420246015 |
Woodruff Key |
| 8 |
420830294 |
Labyrinth Bushing |
| 9 |
420827760 |
DISTANCE RING - Call your local BRP dealership |
| 11 |
420929972 |
Dowel Pin |
| 12 |
420927710 |
Retaining Disk |
| 13 |
420831952 |
Oil Seal This part replaces 420831950. |
| 14 |
420830370 |
O-RING - Call your local BRP dealership |
| 15 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 17 |
420915985 |
Rectangular Ring 69.5 mm |
| 18 |
420815045 |
Semi-trapez Ring 69.5 mm |
| 19 |
420916186 |
GUDGEON PIN - Call your local BRP dealership |
| 20 |
420945735 |
Piston Circlip |
| 22 |
420929972 |
Dowel Pin |
| 23 |
420831990 |
Oil Seal |
| 24 |
420935748 |
Central Gear 14 Teeth |
| 25 |
420818660 |
Crankshaft (PTO side) |
| 26 |
420886955 |
Crankshaft Repair Kit (PTO side) |
| 27 |
420832438 |
Needle Bearing |
| 28 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 29 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 420815046 |
Oversize |
Semi-trapez Ring 69.75 mm 420815046 |
| 420815046 |
Segment |
Semi-Trapézoïdal Surdi. 69.75 mm 420815046 |
| 420886956 |
CRANKSHAFT |
REPAIR KIT (MAG SIDE) - Call your local BRP dealership 420886956 |
| 420886956 |
Crankshaft |
Repair Kit (MAG side) - Appelez votre concessionnaire BRP local 420886956 |
| 420887554 |
Oversize |
Pist. Ass'y (2 rings 69.64 mm) 420887554 |
| 420915986 |
OVERSIZE |
RECTANGULAR RING 69.75 MM - Call your local BRP dealership 420915986 |
| 420915986 |
Oversize |
Rectangular Ring 69.75 mm - Appelez votre concessionnaire BRP local 420915986 |
