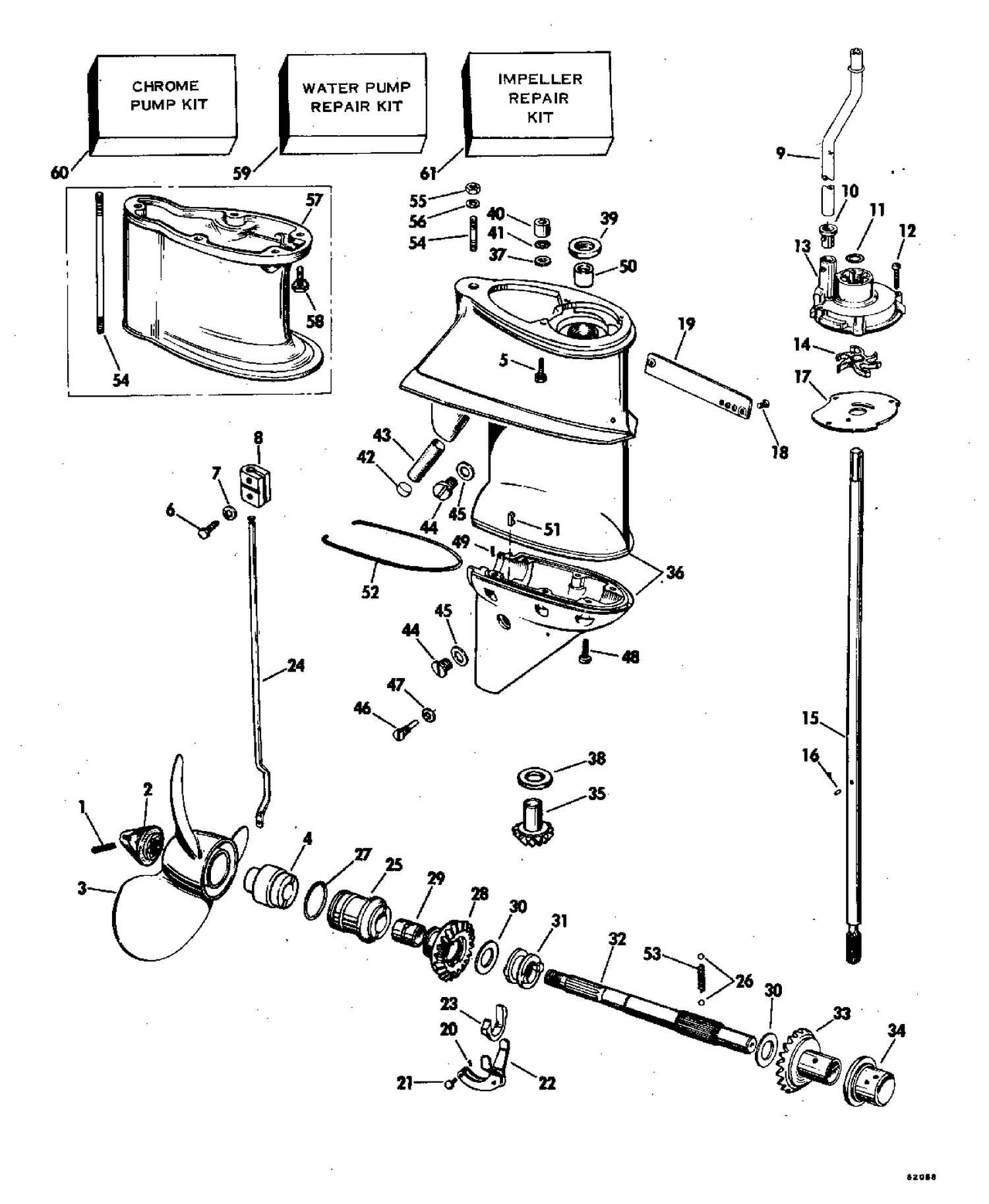

GEARCASE - 25

GEARCASE - 25

Parts (49)

RefPart NumberDescription
2 0390294 NUT, PROPELLER This part replaces 0388881.
3 0388883 PROPELLER, 9 1/4 x 11 AL
3 0389067 PROPELLER 9-1/4 X 7
3 0389068 PROPELLER, 9 x 10
3 0389069 PROPELLER, 9 1/4 X 10 AL
3 0389070 PROPELLER, 9 x 10 weedless
4 0389281 PROP BUSHING ASSY.
8 0304081 CONNECTOR 5 " EXTENSION KIT
9 0322077 WATER TUBE, Standard
9 0322078 WATER TUBE, Long
12 0302508 SCREW, Impeller housing
13 0313543 HOUSING, Impeller
14 0375638 IIMPELLER, Water pump
15 0323533 DRIVESHAFT, Standard
15 0323534 DRIVESHAFT, Long
16 0300771 PIN, Impeller
17 0303069 PLATE, Impeller housing
18 0303587 SCRES,Cover plate This part replaces 0302509.
19 0302505 COVER, Water by-pass
22 0375755 LEVER & PIN ASSY.
23 0302500 CRADLE
24 0303098 ROD, Lower shfit, standard
24 0303257 ROD, Shift, lower, long
25 0389045 GEARCASE HEAD ASSY
27 0321921 JOINT TORIQUE
28 0316504 GEAR, Reverse
29 0303997 BUSHING, Reaverse gear
30 0301884 WASHER, Thrust
31 0316501 SHIFT, Clutch dog
32 0323294 SHAFT, Propeller
33 0389236 GEAR AND BUSHING, Forward
34 0323808 BEARING, Front
35 0308617 PINION, Draft shaft
36 0389691 GEARCASE & BRG. ASSY.
41 0301877 O RING SHIFT ROD
47 0307853 O RING
48 0330562 SCREW, Gearcase This part replaces 0304070.
49 0300611 AXE, turbine vers arbre d'entraînement
52 SEAL, Gearcase
54 0330060 STUD This part replaces 0321926.
54 0330558 STUD, Housing to gearcase This part replaces 0321925.
56 0307708 RONDELLE GROWER This part replaces 0302865.
57 0327563 EXTENSION. GEARCASE 5 INCH LONGER PARTS This part replaces 0322750.
59 0382468 WATER PUMP REPAIR KIT
60 0382474 CHROME PUMP KIT
0301967 0301967 O RING
0313524 0324455 SPACER, Exh. hsg. to imp. hsg This part replaces 0313524.
0389111 0389111 EXTENSION KIT ASSY
0389692 0389692 GEARCASE ASSY., Less drive shaft & pump
