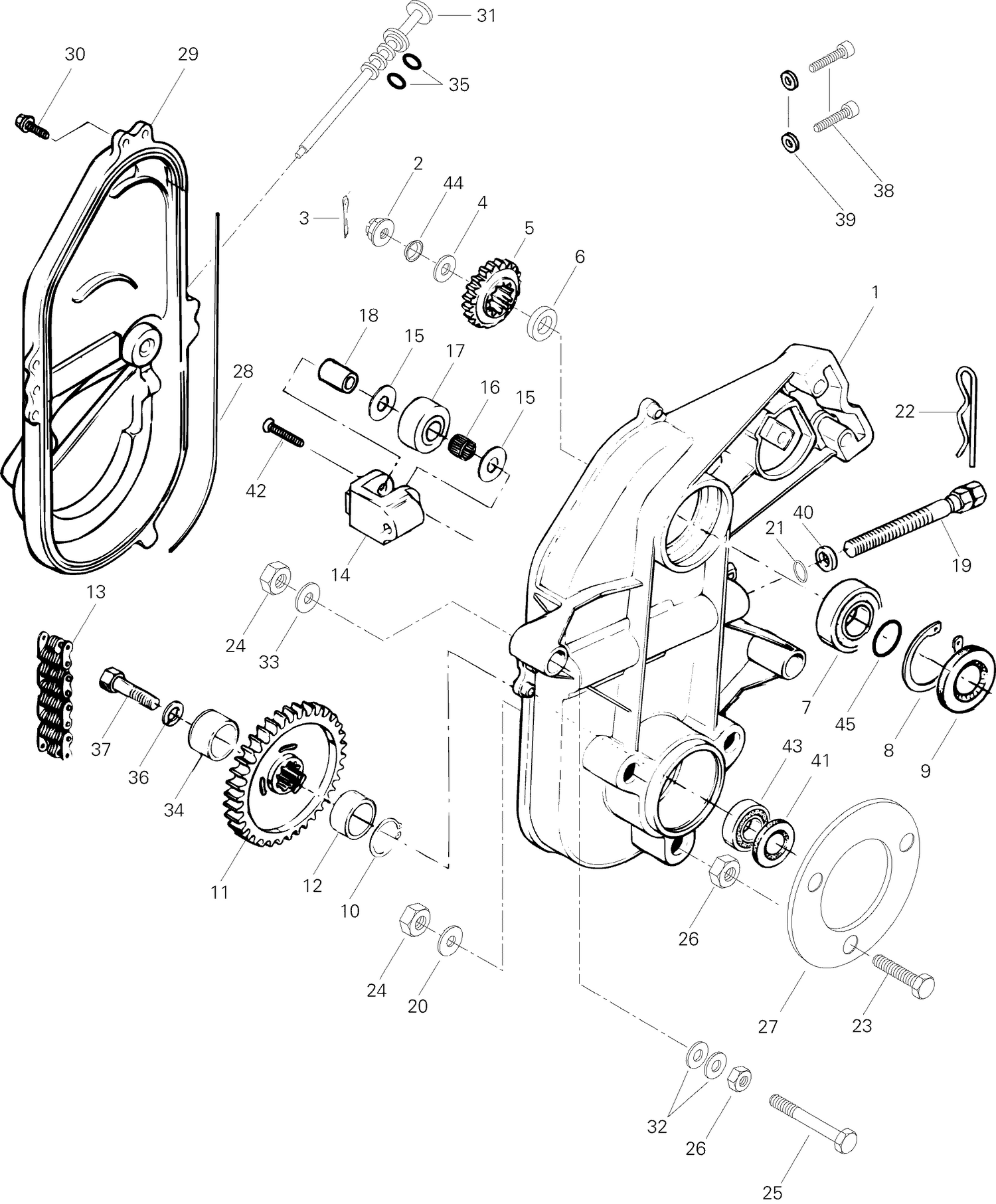

05- Transmission Formula SL
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504095400 | Chaincase |
| 2 | 232210414 | HEX. CASTELLATED NUT M16 - Call your local BRP dealership This part replaces 228911045. |
| 3 | 371801300 | Cotter Pin |
| 4 | 504087100 | Washer |
| 6 | 504093400 | Shim |
| 7 | 293350115 | Ball Bearing This part replaces 405404400. |
| 8 | 371901700 | CIRCLIP - Call your local BRP dealership |
| 9 | 414882800 | OIL SEAL - Call your local BRP dealership |
| 10 | 371901700 | CIRCLIP - Call your local BRP dealership |
| 11 | 504070900 | Sprocket 44Th |
| 12 | 504071700 | Spacer |
| 13 | 412105500 | Drive Chain, (72 Links-Narrow) |
| 14 | 504081000 | MACHINED TENSIONER - Call your local BRP dealership |
| 15 | 504080300 | WASHER - Call your local BRP dealership |
| 16 | 405403000 | NEEDLE BEARING - Call your local BRP dealership |
| 17 | 414531300 | ROLLER - Call your local BRP dealership |
| 18 | 504080200 | SPACER - Call your local BRP dealership |
| 19 | 732601163 | Tensioner Adjustment Screw |
| 20 | 732900020 | Copper Washer |
| 21 | 414484400 | O-Ring |
| 22 | 414575600 | Hair Pin |
| 23 | 732601112 | Hex. Screw M10 x 40 |
| 24 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 25 | 732601111 | Hex. Screw M10 x 70 |
| 26 | 504083800 | Spacer |
| 27 | 501022100 | Protector |
| 28 | 414362300 | O-Ring |
| 29 | 080037100 | CASTING COVER - Call your local BRP dealership |
| 30 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 732600004. |
| 31 | 572075500 | Filler Cap |
| 32 | 504073700 | WASHER - Call your local BRP dealership |
| 33 | 234001410 | Flat Washer 10 mm This part replaces 224001211. |
| 34 | 501023100 | Cap |
| 35 | 414969400 | O-RING - Call your local BRP dealership |
| 36 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 37 | 207102544 | Hex. Screw M10 X 25 This part replaces 222002565. |
| 38 | 732601132 | Socket Head Screw M8 x 10 |
| 39 | 504082900 | Washer |
| 40 | 234001410 | Flat Washer 10 mm This part replaces 224001211. |
| 41 | 504152076 | Seal Oil Ass'y This part replaces 581101700. |
| 42 | 732601144 | SCREW - Call your local BRP dealership |
| 43 | 293350115 | Ball Bearing This part replaces 405404400. |
| 44 | 417000900 | Spring Washer |
