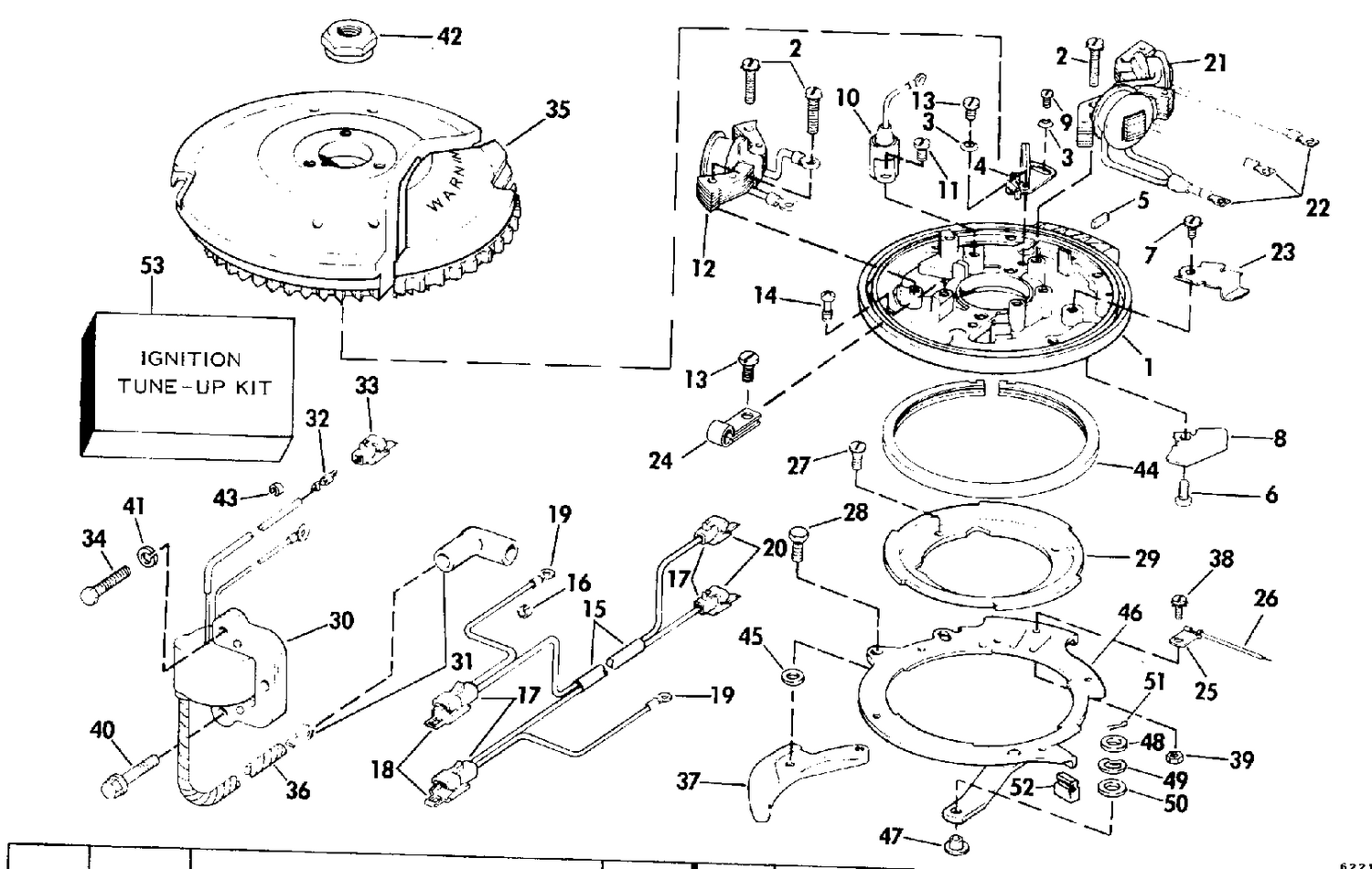

| Ref | Part Number | Description |
|---|
| 1 |
0581217 |
ARMATURE PLATE |
| 2 |
0510397 |
SCREW |
| 3 |
0510208 |
BOW WASHER |
| 4 |
0581207 |
BREAKER ASSY |
| 8 |
0318909 |
COVER |
| 9 |
0510194 |
SCREW |
| 10 |
0581419 |
CONDENSER |
| 12 |
0581202 |
COIL & LAMINATION |
| 12 |
0581557 |
COIL & LAMINATION |
| 14 |
0511195 |
SCREW |
| 15 |
0581360 |
CABLE ASEMBLY, Ignition coil to armature pla |
| 16 |
0511071 |
CLIP |
| 19 |
0510426 |
RING TERMINAL |
| 21 |
0581387 |
STATOR ASSEMBLY |
| 23 |
0318954 |
CLAMP, Ignition coil |
| 24 |
0314200 |
CLAMP |
| 25 |
0511286 |
TERMINAL, Ground lead |
| 26 |
0581391 |
LEAD ASSEBMLY,Ground |
| 26 |
0581392 |
LEAD ASEMBLY, Ground |
| 28 |
0331036 |
VIS, attache de palier This part replaces 0320468. |
| 29 |
0322102 |
PLATE, Support This part replaces 0320494. |
| 30 |
0581407 |
IGNINTION COIL ASSEMBLY |
| 34 |
0306049 |
SCREW |
| 35 |
0581175 |
FLYWHEEL & RING GEAR ASSEMBLY |
| 35 |
0581423 |
FLYWHEEL ASSEMBLY |
| 36 |
0511285 |
TUBING |
| 37 |
0320434 |
CAM, Throttle control |
| 37 |
0320819 |
CAM, Throttle control |
| 38 |
0510278 |
SCREW |
| 40 |
0414951 |
SCREW, Coil & yoke assy., long |
| 42 |
0302944 |
NIT,Flywheel |
| 43 |
0511071 |
CLIP |
| 44 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 46 |
0387418 |
RETAINER & LINK ASSY |
| 46 |
0387419 |
RETAINER & LINK ASSEMBLY |
| 47 |
0307841 |
BUSHING, Control lever |
| 48 |
0306358 |
FLAT WASHER, Helm mounting |
| 49 |
0204757 |
BOW WASHER |
| 50 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 52 |
0326936 |
SLEEVE, Retainer This part replaces 0321563. |
| 0581386 |
0581386 |
ARMATURE PLATE ASSY |
| 0581559 |
0581559 |
ARMATURE PLATE ASSY |
