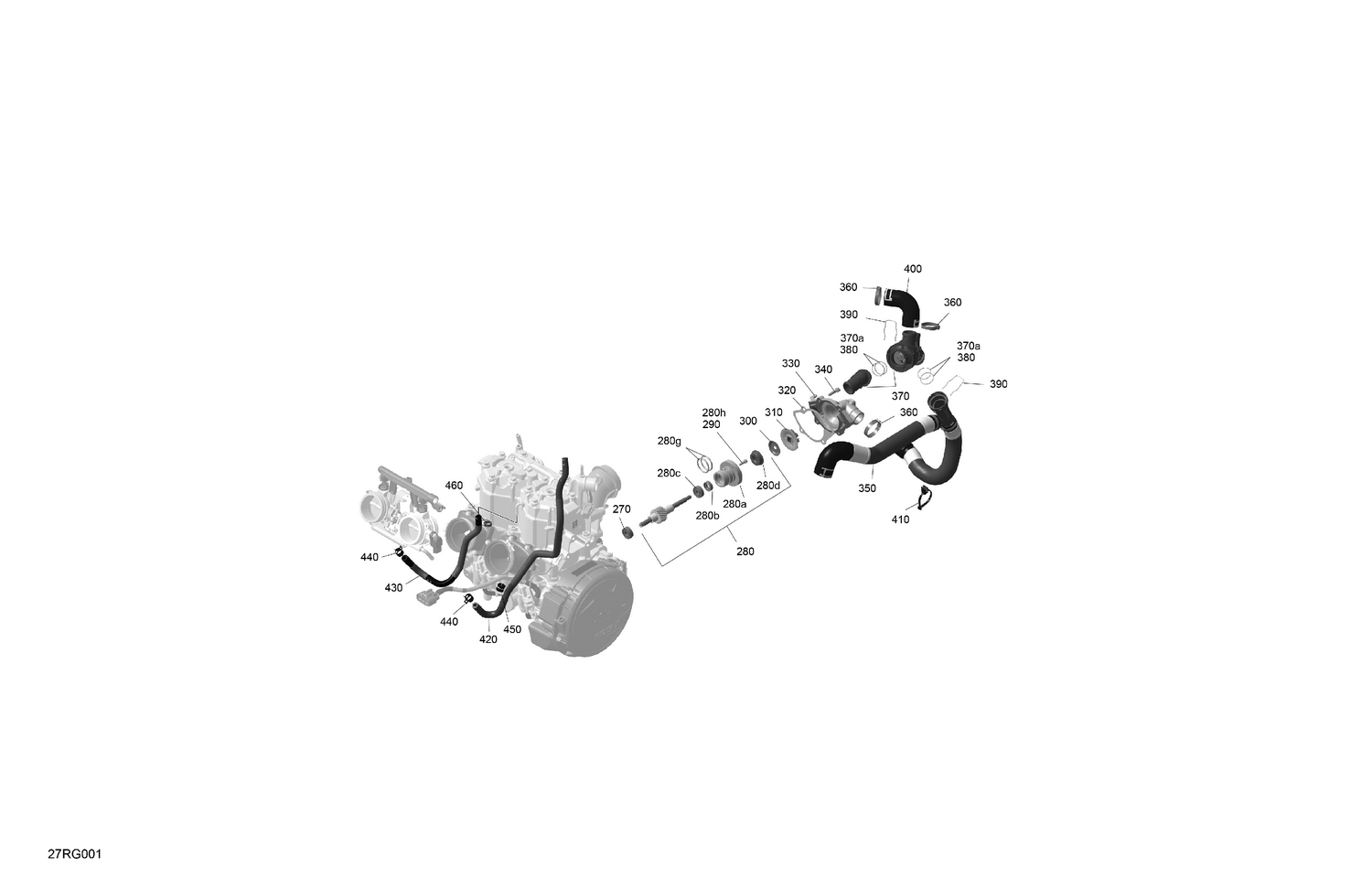

01- ROTAX - Engine Cooling
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 270 | 420232100 | Ball Bearing |
| 280a | 420847933 | Step Collar |
| 280b | 420230198 | Oil Seal |
| 280c | 420232100 | Ball Bearing |
| 280d | 420650371 | Rotary Seal |
| 280g | 420950890 | O-Ring |
| 280h | 420840514 | Allen Screw M5 x 16 |
| 290 | 420840514 | Allen Screw M5 x 16 |
| 300 | 420944035 | Cover Washer |
| 310 | 420222507 | Impeller |
| 320 | 420931813 | Gasket |
| 330 | 420933633 | Water Pump Housing |
| 340 | 420440234 | Flanged Torx Screw M6 X 25 |
| 350 | 420822805 | Molded Hose |
| 360 | 420951120 | Clamp 26-38MM |
| 370a | 420430062 | O-Ring |
| 380 | 420430062 | O-Ring |
| 390 | 420939344 | Spring Clip |
| 400 | 420822820 | Hose Return |
| 410 | 420951652 | Tie Rap 200 X 4.6 |
| 420 | 420201519 | Formed Hose |
| 430 | 420201514 | Molded Hose |
| 440 | 420853511 | Clamp |
| 450 | 420851250 | Clamp |
