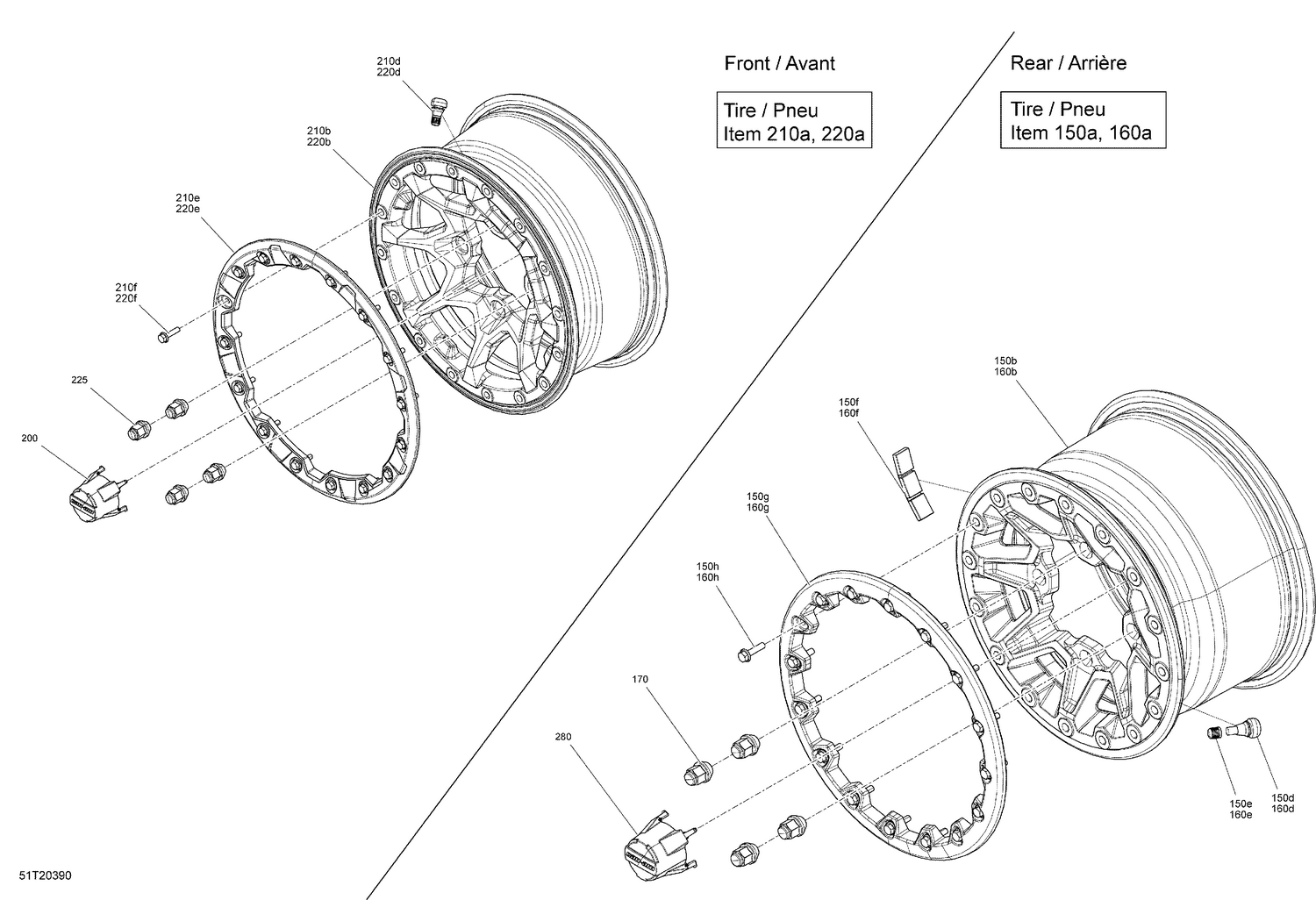

07- Wheels - XXC
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 150a | 705500926 | Tire |
| 150b | 705502244 | Black, Rim |
| 150e | 293000110 | Valve Cap |
| 150h | 250000787 | Hex. Flange Screw M6 X 25 |
| 160a | 705500926 | Tire |
| 160b | 705502244 | Black, Rim |
| 160e | 293000110 | Valve Cap |
| 160h | 250000787 | Hex. Flange Screw M6 X 25 |
| 170 | 250100184 | Black, Wheel Nut M10 X 1.25 |
| 200 | 705400928 | Wheel Cap |
| 210a | 705400600 | Tire |
| 210b | 705401678 | Black, Rim |
| 210d | 705400193 | Rim Valve With Cap |
| 210f | 250000787 | Hex. Flange Screw M6 X 25 |
| 220a | 705400600 | Tire |
| 220b | 705401678 | Black, Rim |
| 220d | 705400193 | Rim Valve With Cap |
| 220f | 250000787 | Hex. Flange Screw M6 X 25 |
| 225 | 250100184 | Black, Wheel Nut M10 X 1.25 |
