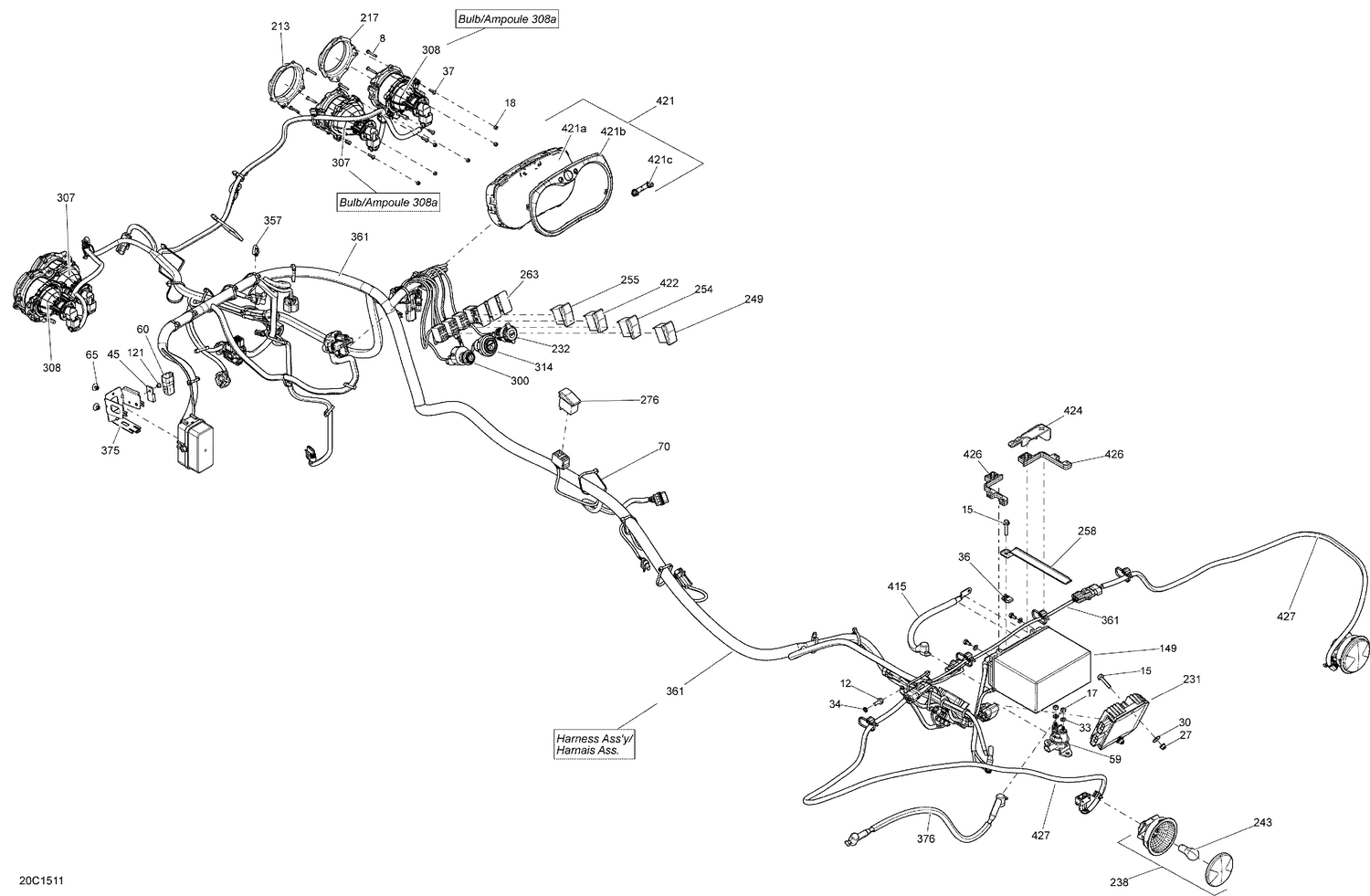

10- Electrical System _20C1511
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 207142544 | Hex. Screw M4 X 25 |
| 12 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 15 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 17 | 232061600 | Hex. Nut M6 |
| 18 | 232541414 | Elastic Stop Nut M4 |
| 27 | 233261494 | Hex. Flange Elastic Nut M6 |
| 30 | 234062670 | Stainless Steel Flat Washer |
| 33 | 234161601 | Lock Washer Helical M6 |
| 34 | 234461608 | External Serrated Lock Washer 6 mm |
| 36 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 37 | 250000723 | Phillips Screw K40 X 16 |
| 45 | 270000141 | Clip |
| 59 | 278003012 | Starter Relay |
| 60 | 278002704 | Diagnostic Connector |
| 65 | 293150103 | Pop Rivet 3/16" |
| 70 | 293750008 | Tie Wrap 368 mm |
| 121 | 390402400 | Pop Rivet 3/16" |
| 149 | 410301203 | Battery YUASA YTX20L |
| 213 | 710001081 | RH Low Front Housing |
| 213 | 710001083 | LH Low Front Housing |
| 217 | 710001085 | RH High Front Housing |
| 217 | 710001087 | LH High Front Housing |
| 231 | 710001191 | Voltage Regulator |
| 232 | 710001248 | DC Outlet |
| 238 | 710001645 | Tail Light Ass'y |
| 243 | 520000758 | Bulb |
| 249 | 710001725 | Hi/Low Switch |
| 254 | 710001737 | Interrupteur 4X4 |
| 255 | 710001781 | Switch DPS |
| 258 | 710001916 | Battery Holder |
| 263 | 710007173 | Plug Carling This part replaces 710001999. |
| 276 | 710002053 | Switch, Over ride |
| 300 | 710008400 | Ignition Switch This part replaces 710003847. |
| 307 | 710002524 | Low Beam Ass'y |
| 308 | 710002525 | High Beam Ass'y |
| 308a | 415129249 | Halogen Bulb |
| 314 | 710002594 | Engine Start Button |
| 357 | 710003168 | Dart Tie Rap 200MM |
| 361 | 710004343 | Wiring Harness Assembly This part replaces 710004094. |
| 375 | 710003335 | Fuse Holder |
| 376 | 710004390 | Positive Cable This part replaces 710003340. |
| 415 | 710004393 | Positive Cable This part replaces 710003440. |
| 421 | 710004547 | Multifunction Speedometer This part replaces 710004470. |
| 421a | 415129349 | Lens |
| 421b | 415129348 | Gauge Ring |
| 421c | 415129355 | Speedometer Button |
| 422 | 710003541 | Switch PPS Sport |
| 424 | 710003582 | Cap |
| 426 | 710003602 | Battery Rubber Pad |
