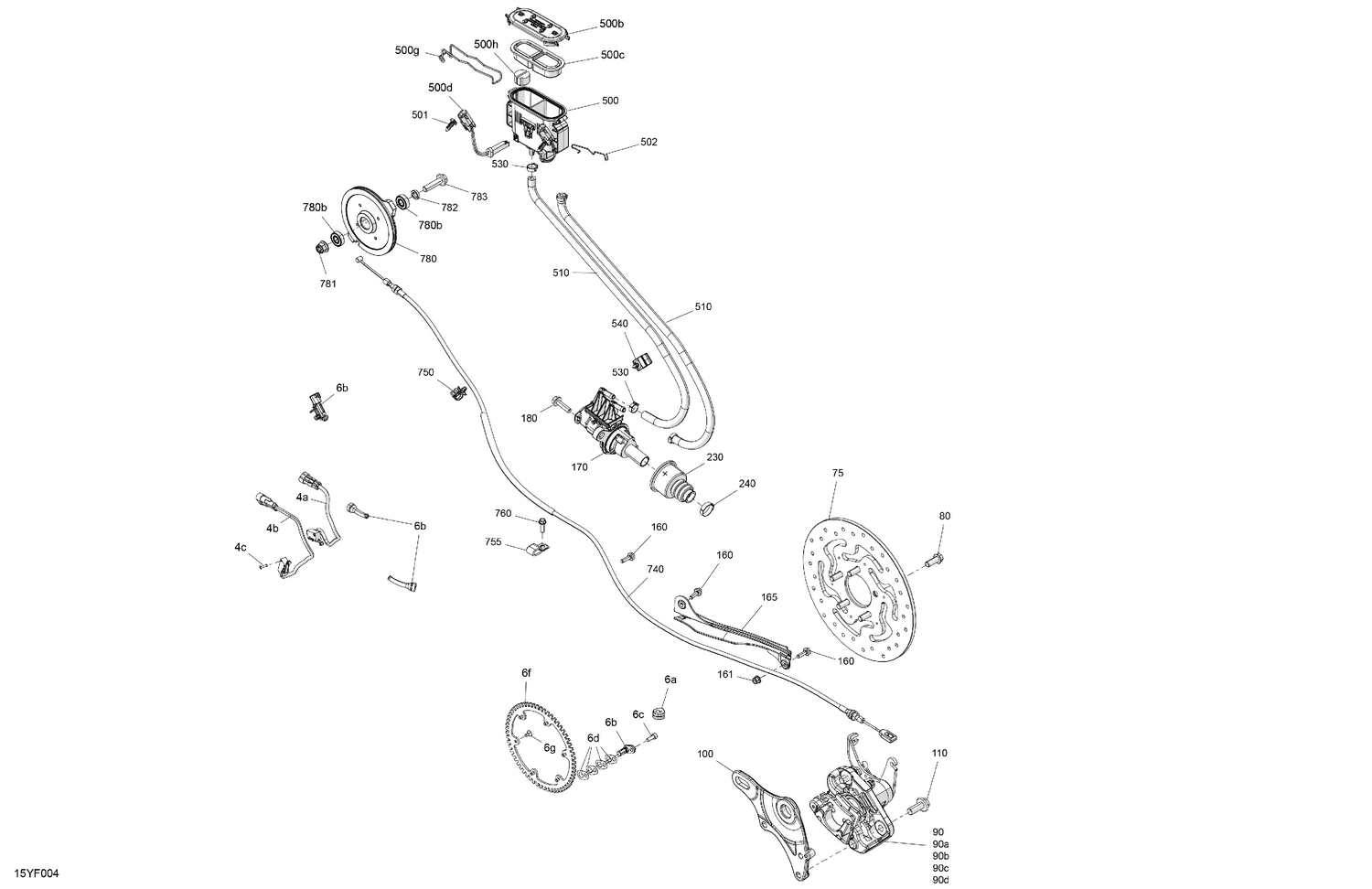

03- Mechanic - Rear Brake
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 4a | 710003412 | Brake Light Switch Ass'y |
| 4b | 710001379 | Brake Pressure Switch Ass'y |
| 4c | 293150150 | Pop Rivet |
| 6a | 293720084 | Grommet |
| 6b | 710006982 | Speed Sensor |
| 6c | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 6d | 710002023 | Shim |
| 6f | 705601372 | Sensor Wheel |
| 75 | 705602209 | Rear Disc Brake This part replaces 705602409. |
| 80 | 250001054 | Hex. Flange Screw M10 X 25 |
| 90a | 219800239 | Brake Pad Kit |
| 90b | 219800240 | Spring/Pin/Clip Kit |
| 90c | 219800241 | Rear Cable Support Kit |
| 90d | 219800242 | Rear Dust Cover |
| 100 | 705601746 | Rear Brake Caliper Support |
| 110 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip |
| 160 | 207662054 | Hex. Flange Screw M6 X 20 |
| 161 | 233261494 | Hex. Flange Elastic Nut M6 |
| 165 | 706202587 | Cable Guide |
| 170 | 705600722 | Tandem Cylinder Master |
| 180 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 230 | 705600716 | Bellow |
| 240 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 500b | 219800350 | Diaphragm Cover Ass'y |
| 500c | 219800350 | Diaphragm Cover Ass'y |
| 500d | 705601073 | Oil Level Sensor |
| 500g | 705601294 | Spindle Lock |
| 500h | 211100002 | Push Nut |
| 501 | 710002033 | Connector Holder |
| 502 | 705209087 | Stopper Spring |
| 510 | 705601236 | Formed Hose |
| 530 | 293650047 | Crimp Clamp, 15.3-706R |
| 540 | 709000571 | Hose Support |
| 740 | 707001856 | Parking Brake Cable |
| 750 | 709000633 | Harness Support |
| 755 | 515175507 | Open Clamp |
| 760 | 210262050 | Hexagonal Head Screw |
| 780b | 705601974 | Ball Bearing |
| 781 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 782 | 293900087 | Bushing |
| 783 | 207604054 | Hex. Flange Screw M10 X 40 |
