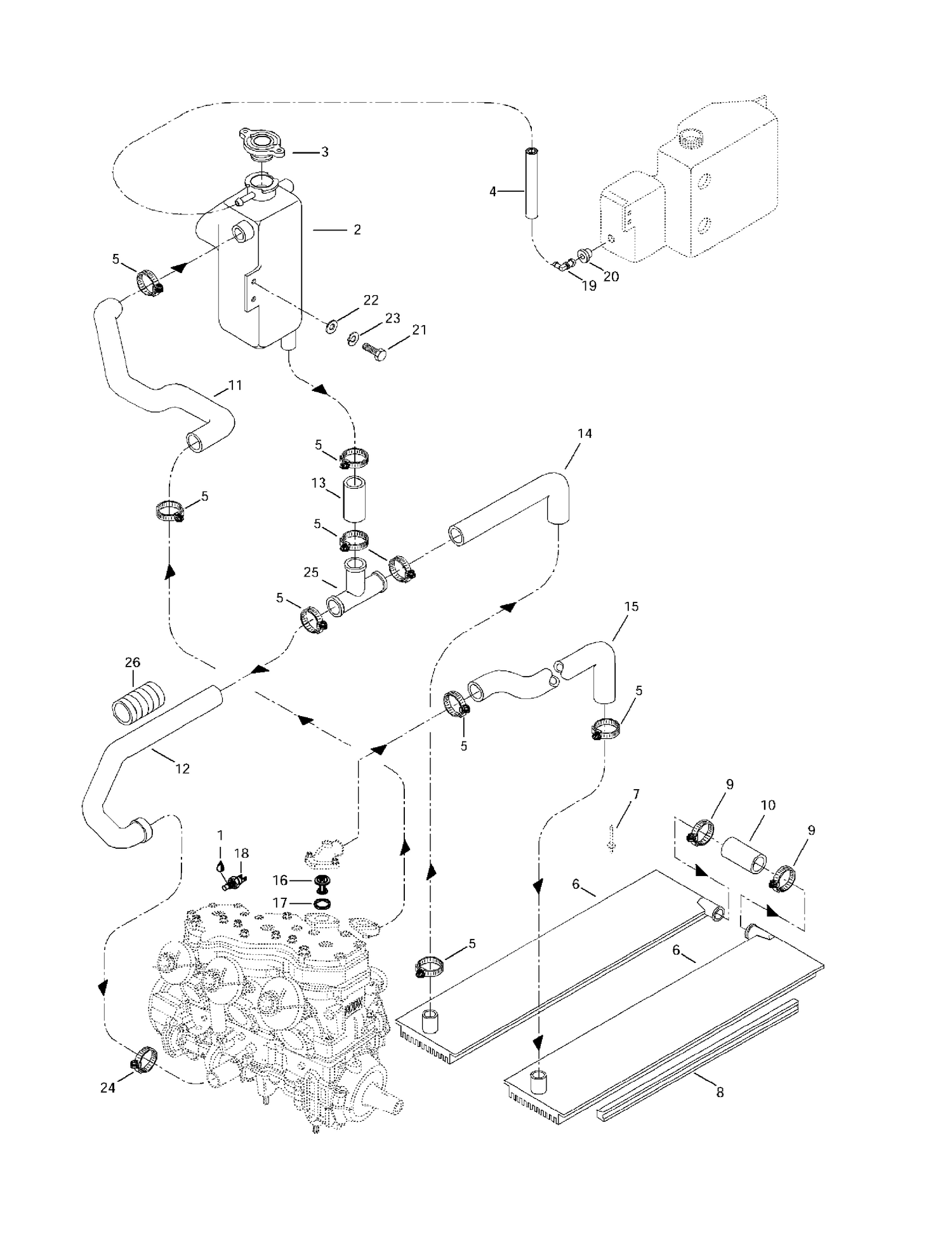

| Ref | Part Number | Description |
|---|
| 1 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 2 |
572071700 |
Coolant Tank |
| 3 |
509000187 |
Pressure Cap This part replaces 414684700. |
| 4 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 5 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 7 |
Not |
Available As Spare Part - Rivet |
| 9 |
408803400 |
Clamp Tridon |
| 10 |
414795800 |
Radiator Hose |
| 11 |
414795200 |
Engine Outlet Hose |
| 12 |
414949000 |
Engine Inlet Hose |
| 13 |
414986700 |
Hose-Junction |
| 14 |
414986600 |
Radiator Outlet Hose |
| 15 |
414795500 |
Radiator Inlet Hose |
| 16 |
420922519 |
Thermostat This part replaces 414834100. |
| 17 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 18 |
414728700 |
Temperature Sensor |
| 19 |
414580600 |
Elbow Male Connector |
| 20 |
709200285 |
Grommet This part replaces 570135100. |
| 21 |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 22 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 23 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 24 |
Not |
Available As Spare Part - Tridon Gear Clamp |
| 25 |
509000219 |
T-Fitting This part replaces 414619900. |
