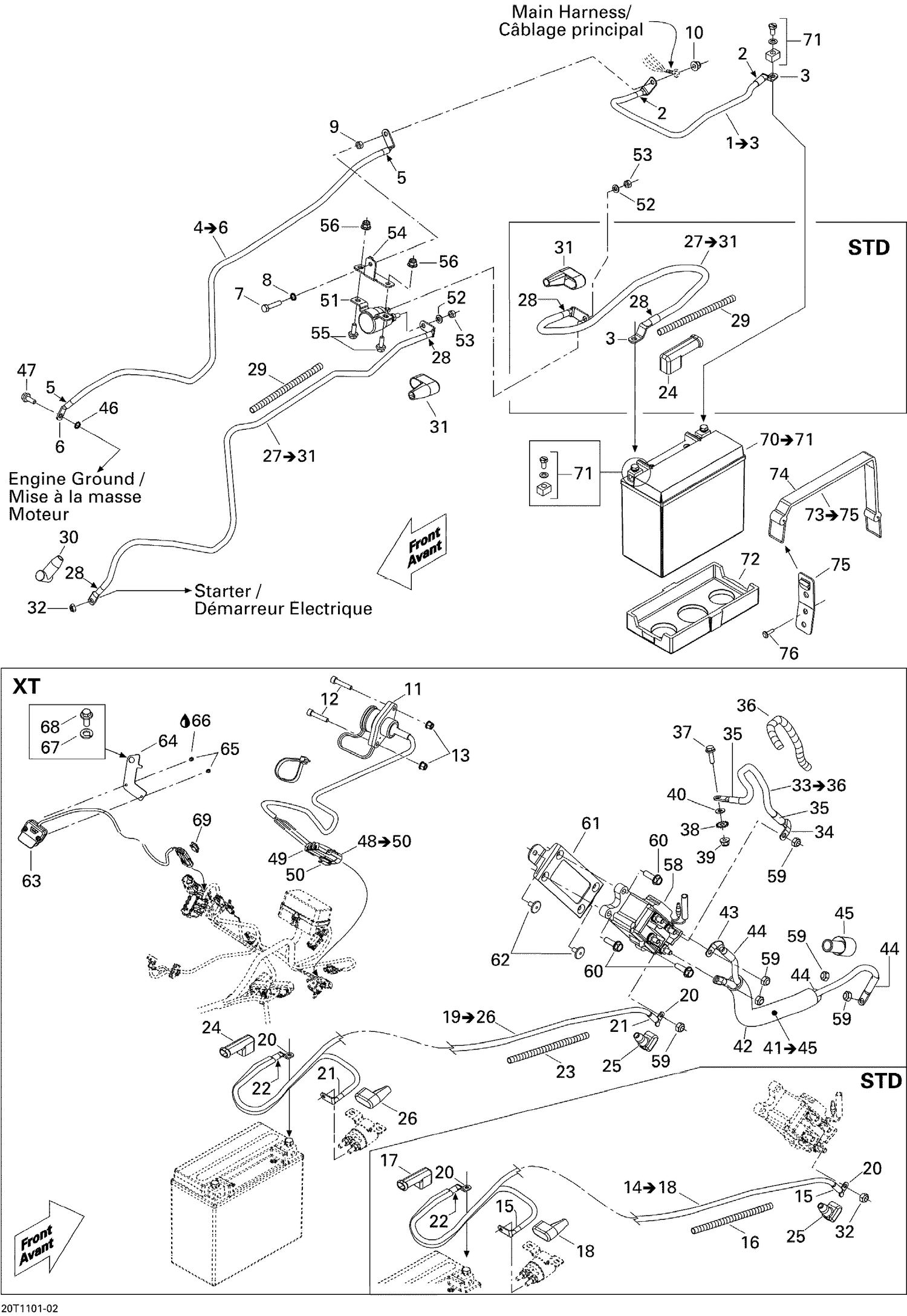

10- Electrical System
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 3 | 710000518 | Open Barrel |
| 5 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 6 | 710000540 | Open Barrel |
| 7 | 207162544 | Hex. Screw M6 X 25 |
| 8 | 234461608 | External Serrated Lock Washer 6 mm |
| 9 | 232061414 | Hex. Nut M6 |
| 10 | 233061414 | Hex. Flange Nut M6 |
| 15 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 16 | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 17 | 710001829 | Protector Cap |
| 18 | 710001817 | Protector Cap |
| 20 | 710000476 | OPEN BARREL, 6.6 MM - Call your local BRP dealership |
| 21 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 22 | 275500578 | Shrink Tubing |
| 23 | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 24 | 710001829 | Protector Cap |
| 25 | 710001828 | PROTECTOR CAP - Call your local BRP dealership |
| 26 | 710001817 | Protector Cap |
| 28 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 29 | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 30 | 710000526 | Protector Cap |
| 31 | 710001817 | Protector Cap |
| 32 | 232561414 | Elastic Stop Nut M6 |
| 34 | 710000476 | OPEN BARREL, 6.6 MM - Call your local BRP dealership |
| 35 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 36 | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 42 | 219704398 | Was 409901600 Tubing 19mm |
| 43 | 710000476 | OPEN BARREL, 6.6 MM - Call your local BRP dealership |
| 44 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 45 | 515175919 | Protector Cap |
| 46 | 234461608 | External Serrated Lock Washer 6 mm |
| 47 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 49 | 278000281 | Female Terminal Housing, 3 Circuits |
| 50 | 710000992 | Clip |
| 51 | 710007777 | Starter Relay This part replaces 710001364. |
| 52 | 234161601 | Lock Washer Helical M6 |
| 53 | 232061600 | Hex. Nut M6 |
| 54 | 710001260 | SOLENOID SUPPORT - Call your local BRP dealership |
| 55 | 207661244 | Hex. Flange Screw M6 X 12 |
| 56 | 233061414 | Hex. Flange Nut M6 |
| 71 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 72 | 710000279 | INSULATOR PAD - Call your local BRP dealership |
| 74 | 293850097 | Retainer Strap |
| 75 | 293850030 | Strap Clip |
