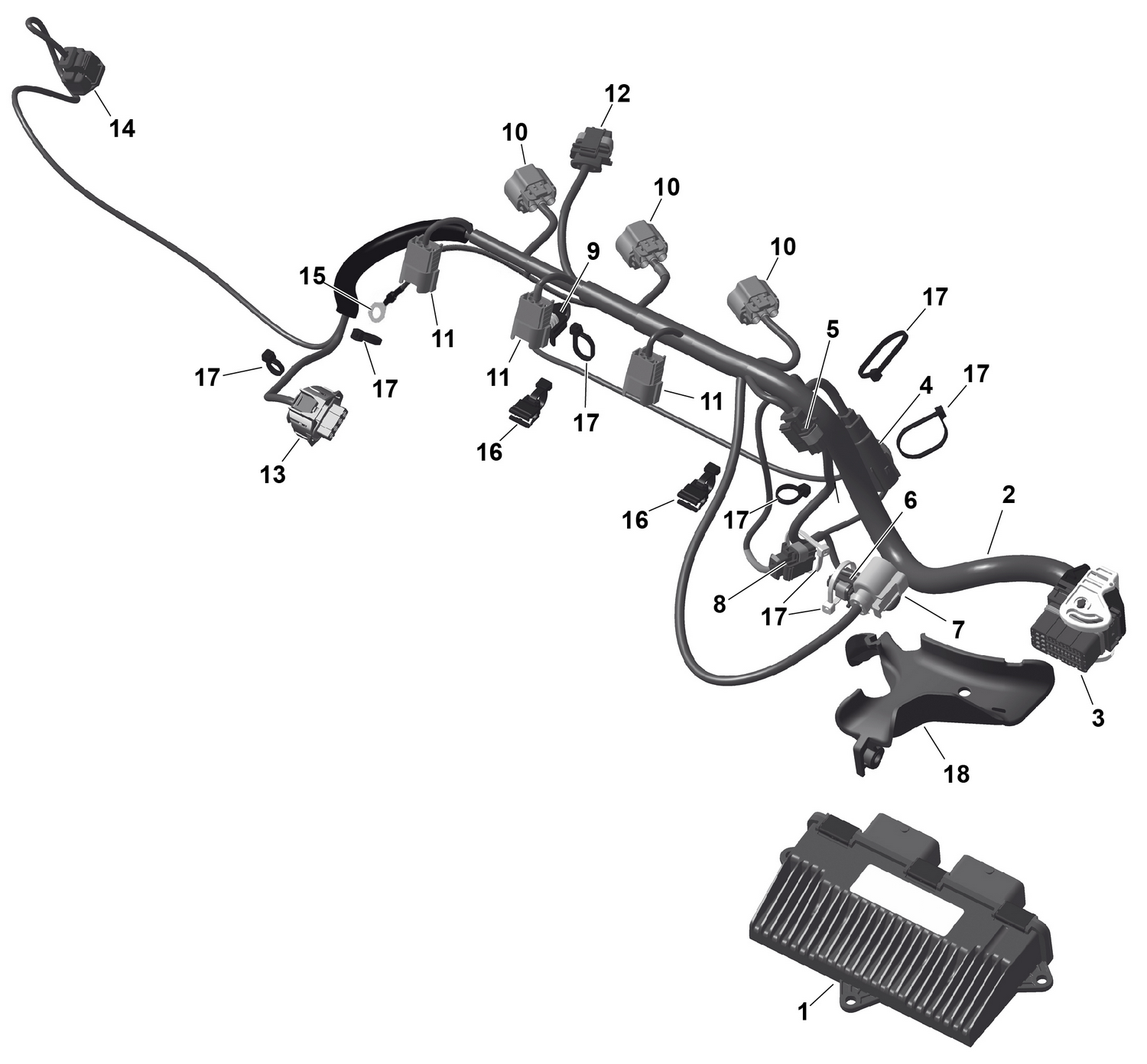

01- ROTAX - Engine Harness And Electronic Module
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 3 | XXX | Not Available As Spare Parts |
| 4 | 515178347 | Male Housing Connector 4 Pins |
| 5 | 278001005 | Male Housing, 2 Circuits |
| 6 | 278001005 | Male Housing, 2 Circuits |
| 7 | 515177406 | Female Housing |
| 8 | 278001005 | Male Housing, 2 Circuits |
| 9 | 278001012 | Male Housing, 1 Circuit |
| 11 | XXX | Not Available As Spare Parts |
| 12 | 278003197 | Housing |
| 13 | 515176410 | Male Connector |
| 14 | XXX | Not Available As Spare Parts |
| 15 | 278000992 | Open Barrel |
| 16 | 420951650 | Cable Clamp 150mm |
| 17 | 420866714 | Tie Rap |
