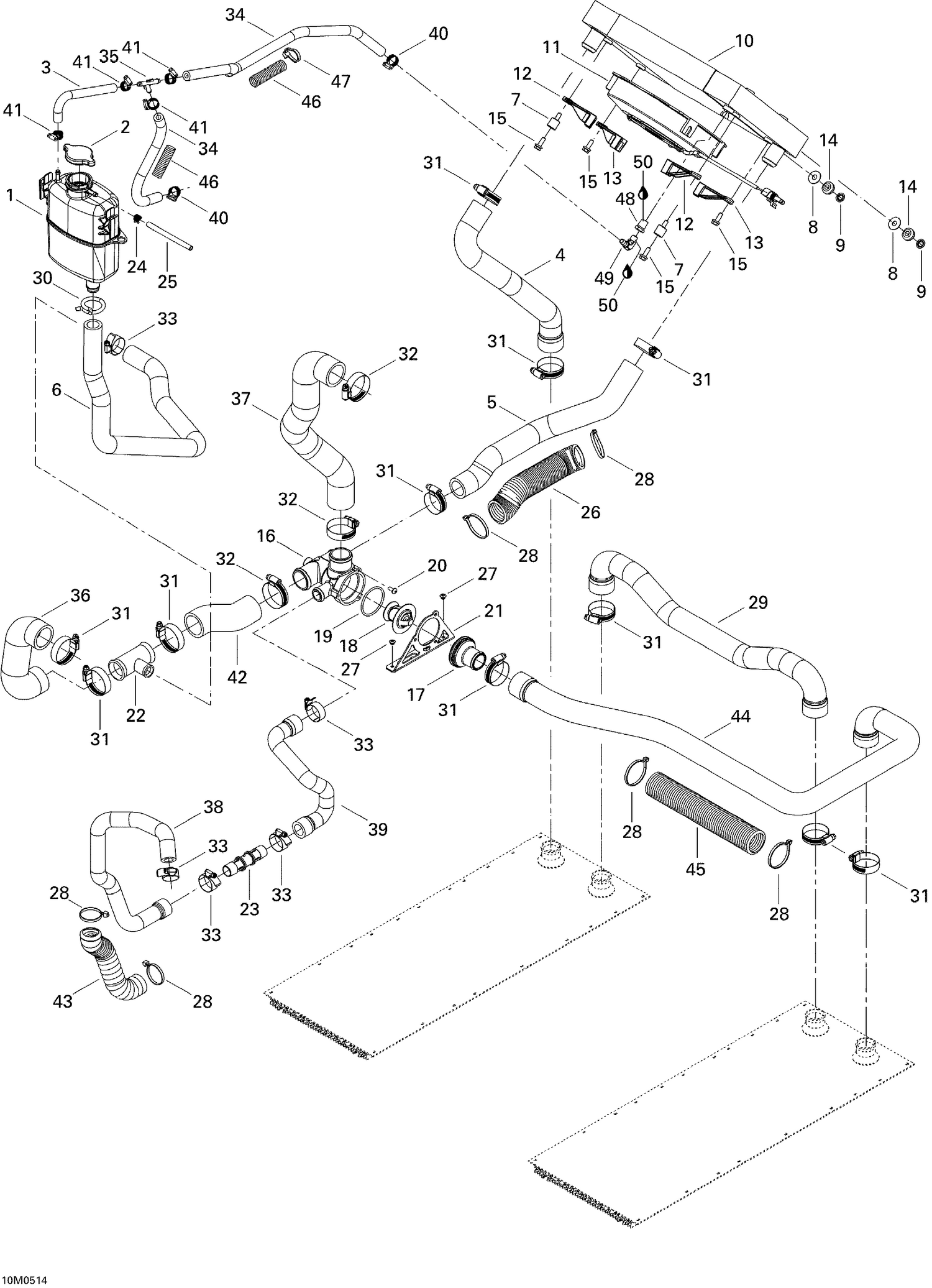

01- Cooling System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 276000086 | Coolant Tank |
| 2 | 509000180 | Radiator Pressure Cap |
| 3 | 276000131 | Formed Hose |
| 4 | 509000174 | Radiator Hose Return, Air |
| 5 | 509000175 | Radiator Hose Exit, Air |
| 6 | 509000227 | Tank Hose Return |
| 7 | 509000284 | Anti-Vibration Rubber Mount |
| 8 | 507032396 | Spacer |
| 9 | 250100046 | Push Nut |
| 10 | 509000205 | Radiator Ass'y |
| 11 | 709200075 | FAN ASS'Y - Call your local BRP dealership |
| 12 | 709200076 | FAN SUPPORT - Call your local BRP dealership |
| 13 | 709200095 | FAN SUPPORT - Call your local BRP dealership |
| 14 | 414036300 | Grommet |
| 15 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 16 | 509000206 | Thermostat Housing |
| 17 | 509000209 | Cover |
| 18 | 420922690 | THERMOSTAT 87 C - Call your local BRP dealership |
| 19 | 509000211 | O-Ring |
| 20 | 205451286 | SCREW M5 X 12 - Call your local BRP dealership |
| 21 | 509000242 | Thermostat Support |
| 22 | 509000283 | T-Fitting |
| 23 | 509000282 | Hose Connector 3/4" |
| 24 | 414554800 | Spring Clamp |
| 25 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 26 | 219704413 | Was 415084700 Protective Shield |
| 27 | 390402200 | Pop Rivet 3/16" |
| 28 | 414115200 | Tie-Rap 180 mm |
| 29 | 509000229 | LH Radiator Exit Hose |
| 30 | 293650115 | Spring Clamp |
| 31 | 293650045 | Tridon Gear Clamp |
| 32 | 293650075 | Norma Clamp |
| 33 | 293650019 | Tridon Gear Clamp |
| 34 | 509000093 | Hose 8 mm |
| 35 | 293710059 | Y-Fitting |
| 36 | 509000233 | Pump Hose |
| 37 | 509000234 | Engine Exit Hose |
| 38 | 509000236 | Engine Coolant Hose |
| 39 | 509000265 | Formed Hose |
| 40 | 293650171 | Tridon Gear Clamp |
| 41 | 293650170 | Tridon Gear Clamp |
| 42 | 509000262 | Hose |
| 43 | 219704402 | Tubing 25 MM 1000MM Long |
| 44 | 509000231 | Thermostat Exit Hose |
| 45 | 219704413 | Was 415084700 Protective Shield |
| 46 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 47 | 293750002 | Tie Wrap 142 mm |
| 48 | 293700044 | Bushing |
| 49 | 293700020 | Elbow Fitting 90° |
