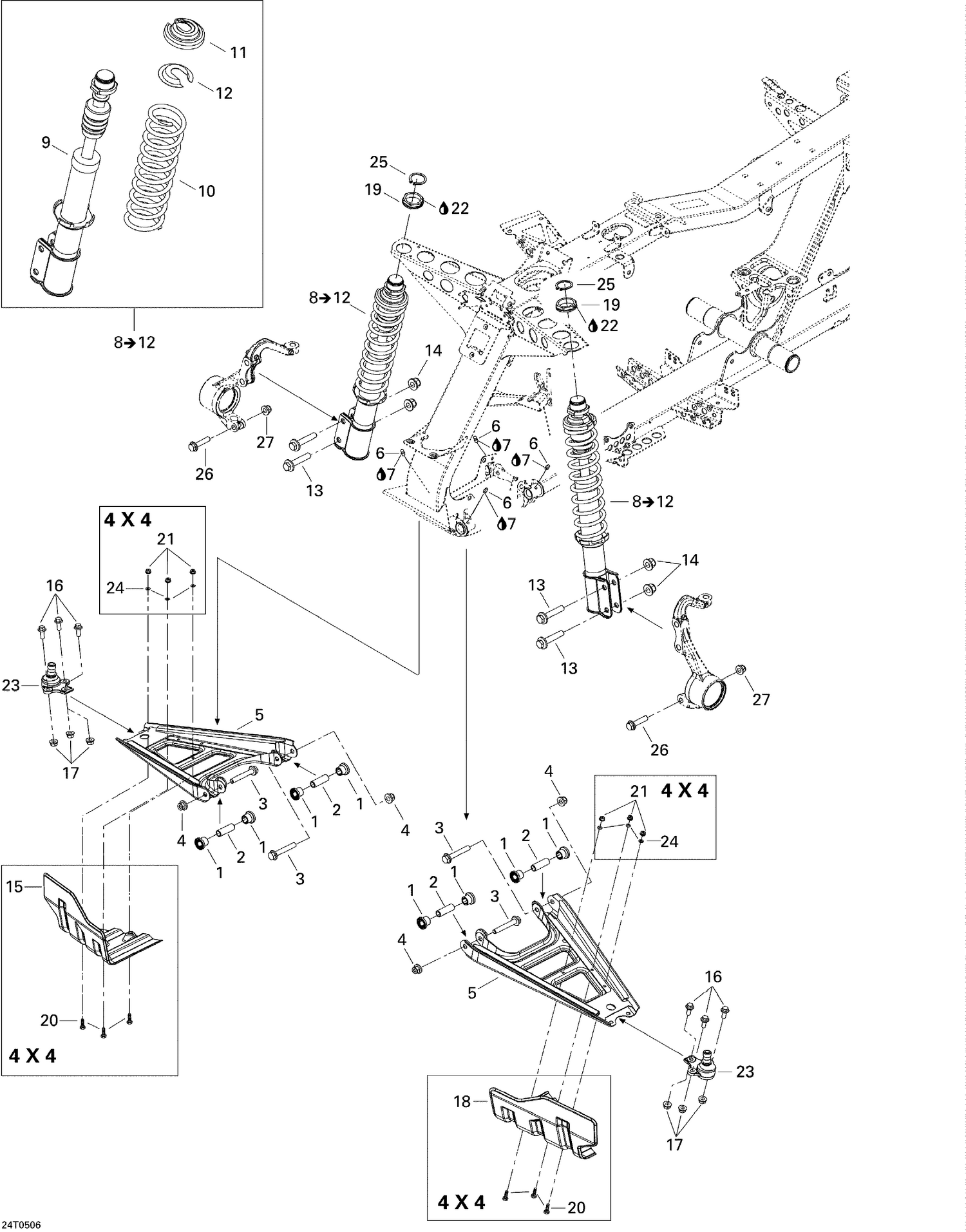

| Ref | Part Number | Description |
|---|
| 1 |
706200181 |
Bushing |
| 2 |
706201587 |
Sleeve This part replaces 706200182. |
| 3 |
207606536 |
Hex. Flange Screw M10 X 65 This part replaces 207606546. |
| 4 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 5 |
706205905 |
Suspension Arm This part replaces 706200229. |
| 6 |
408200700 |
Grease Fitting |
| 7 |
293550010 |
Synthetic Grease, 400 G |
| 9 |
706200658 |
Front Shock This part replaces 706200431. |
| 10 |
706200353 |
Full Moon Front Spring |
| 11 |
706200882 |
STOPPER SPRING - Call your local BRP dealership This part replaces 706200218. |
| 12 |
706200793 |
Cap This part replaces 706200219. |
| 13 |
207626046 |
Hex. Flange Screw M12 X 60 |
| 14 |
233221414 |
Hex. Flange Elastic Nut M12 |
| 16 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 17 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 19 |
706200443 |
NUT - Call your local BRP dealership |
| 22 |
293800060 |
Loctite 243, 10 ml |
| 23 |
706200231 |
JOINT ATTACH - Call your local BRP dealership |
| 25 |
293370009 |
Circlip 32 mm |
| 26 |
207604544 |
HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership |
