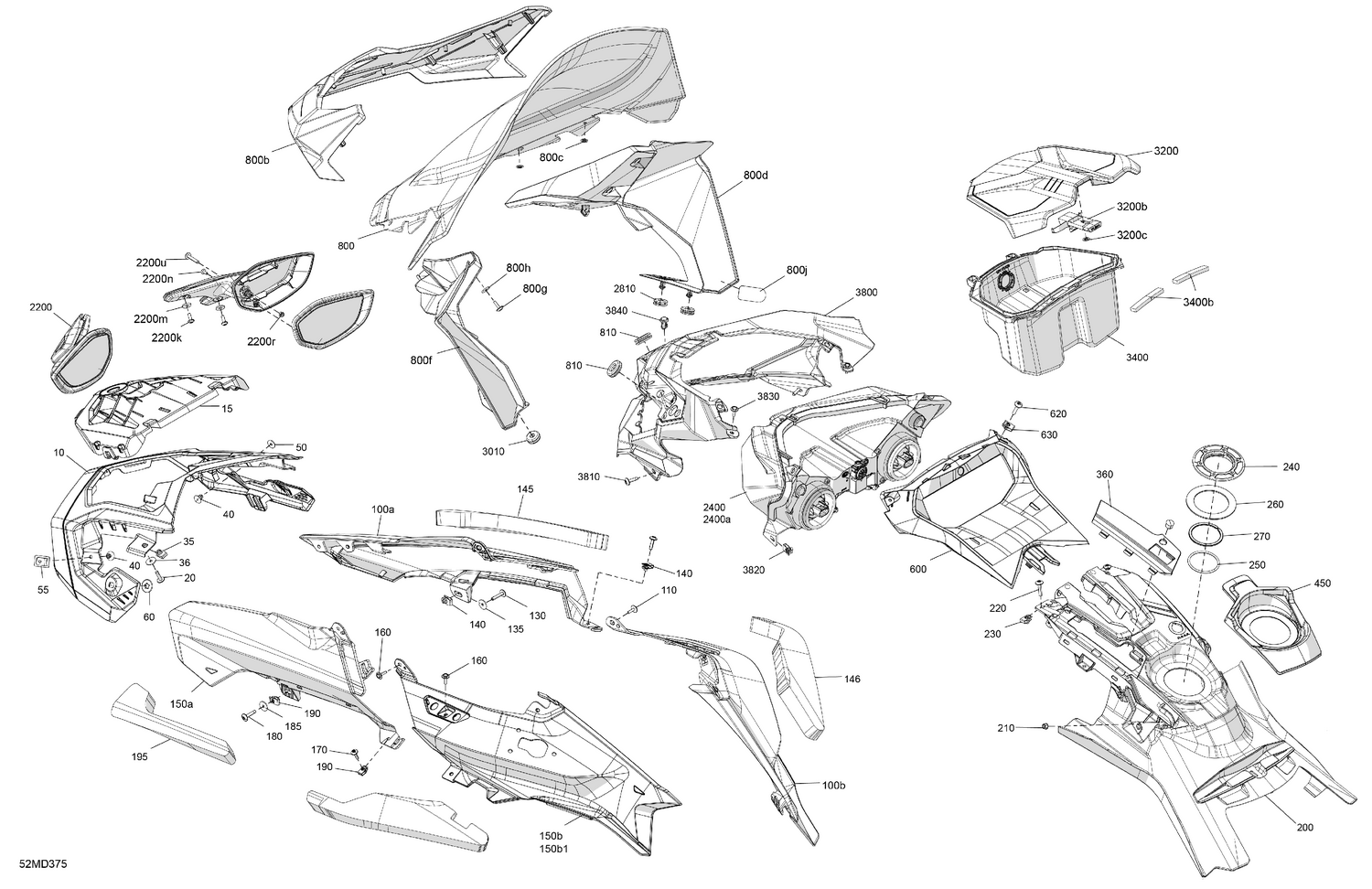

| Ref | Part Number | Description |
|---|
| 10 |
517306284 |
Deep Black, Center Hood |
| 15 |
517307593 |
Central Hood Grille |
| 20 |
250000528 |
Torx Screw M5 X 20 |
| 35 |
250000958 |
Panel Nut M5 X 0.8 |
| 36 |
250200166 |
Washer |
| 40 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 50 |
517124300 |
Washer |
| 55 |
517305109 |
Rivet Plate |
| 60 |
508000853 |
Push Nut |
| 100a |
517308977 |
Tundra Green, RH Front Hood |
| 100b |
517308978 |
Tundra Green, RH Rear Hood |
| 110 |
250000725 |
Screw M4 X 16 |
| 130 |
250000587 |
Torx Screw M5 X 26 |
| 135 |
250200166 |
Washer |
| 140 |
250000958 |
Panel Nut M5 X 0.8 |
| 145 |
517305763 |
RH Front Hood Foam |
| 146 |
517306001 |
RH Hood Foam |
| 150a |
517308980 |
Tundra Green, LH Front Hood |
| 150b |
517308984 |
Tundra Green, LH Rear Hood |
| 150b1 |
517308981 |
Tundra Green, LH Rear Hood |
| 160 |
250000725 |
Screw M4 X 16 |
| 170 |
250000528 |
Torx Screw M5 X 20 |
| 180 |
250000587 |
Torx Screw M5 X 26 |
| 185 |
250200166 |
Washer |
| 190 |
250000958 |
Panel Nut M5 X 0.8 |
| 195 |
517305764 |
LH Front Hood Foam |
| 200 |
517307687 |
Deep Black, Rear Console |
| 210 |
233251434 |
Flange Elastic Nut M5 |
| 220 |
250000587 |
Torx Screw M5 X 26 |
| 230 |
250000958 |
Panel Nut M5 X 0.8 |
| 240 |
517306602 |
Console Nut |
| 250 |
706002839 |
O-Ring |
| 260 |
517309451 |
Joint |
| 270 |
517309382 |
Support |
| 360 |
517306582 |
LH Front Console |
| 450 |
517309349 |
Rear Console Short |
| 600 |
517307400 |
Gauge Support |
| 620 |
250000586 |
Torx Truss M5 X 20 |
| 630 |
250000958 |
Panel Nut M5 X 0.8 |
| 800b |
517306183 |
Deep Black, Windshield Support |
| 800c |
732610072 |
Push Nut |
| 800d |
517306184 |
RH Air Deflector |
| 800f |
517306185 |
LH Air Deflector |
| 800g |
250000889 |
Screw M4 X 16 |
| 800h |
250200024 |
Rubber Washer 5 mm |
| 800j |
516009227 |
Decal |
| 810 |
517303756 |
Grommet |
| 2200k |
250000742 |
Torx Screw M5 X 14 |
| 2200m |
250200024 |
Rubber Washer 5 mm |
| 2200n |
250001131 |
Torx Truss PT K40 x 12 |
| 2200r |
232551414 |
Elastic Stop Nut M5 |
| 2200u |
250000732 |
Torx Screw Nylon |
| 2400a |
415130081 |
Bulb |
| 2810 |
517307161 |
Grommet |
| 3010 |
517307161 |
Grommet |
| 3200b |
517305779 |
Latch |
| 3200c |
732610072 |
Push Nut |
| 3400b |
517305157 |
Seal Joint |
| 3800 |
517306301 |
Headlamp Fairing |
| 3810 |
250000528 |
Torx Screw M5 X 20 |
| 3820 |
250000958 |
Panel Nut M5 X 0.8 |
| 3830 |
250000725 |
Screw M4 X 16 |
