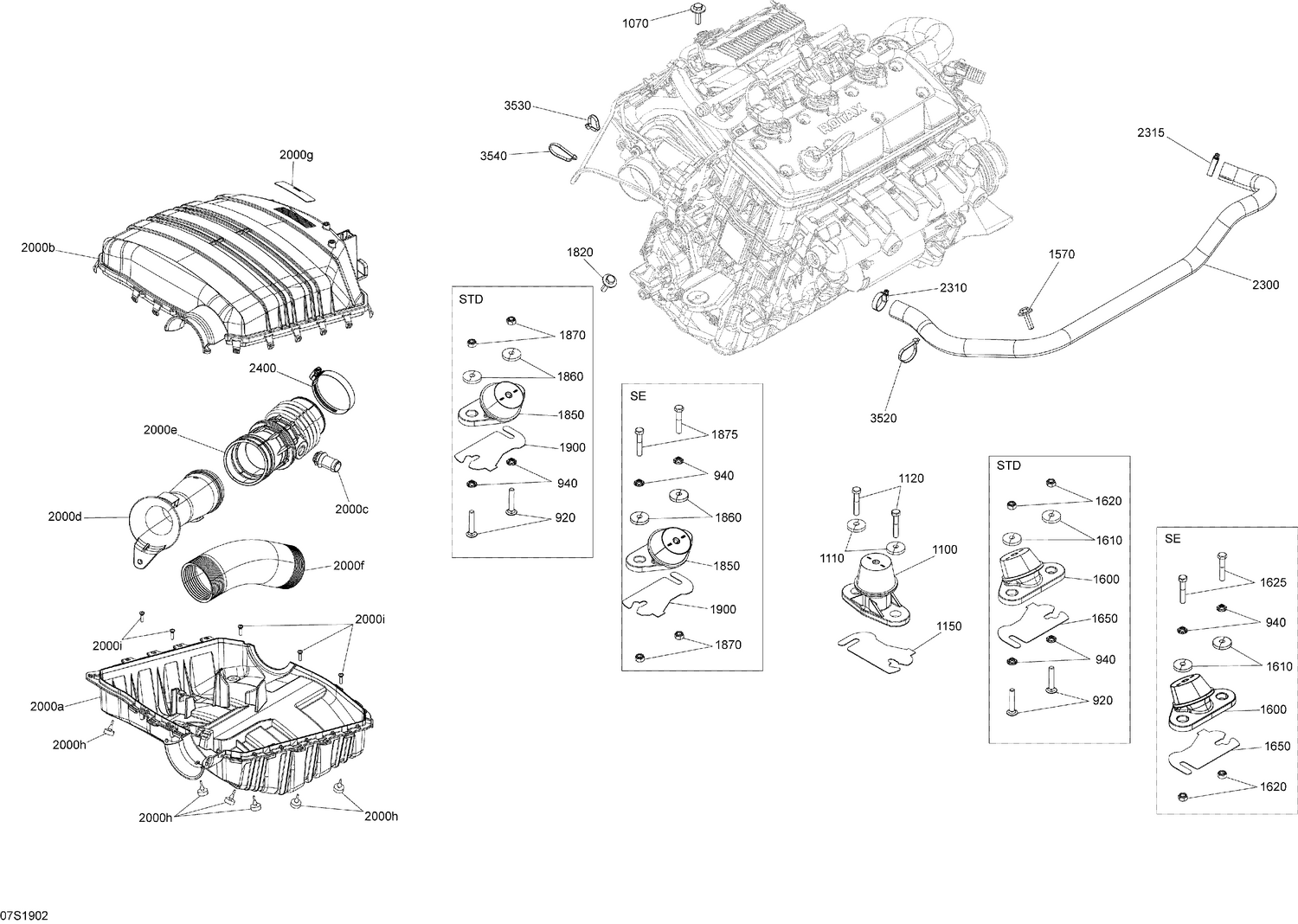

01- Engine
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1070 | 250000933 | Hex Sems Screw M8 X 30 S.Grip |
| 1100 | 270001096 | Engine Support Ass'y This part replaces 270001076. |
| 1110 | 250200018 | Cone Washer |
| 1120 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 1570 | 250000933 | Hex Sems Screw M8 X 30 S.Grip |
| 1600 | 270001081 | Engine Support Ass'y This part replaces 270001011. |
| 1610 | 250200018 | Cone Washer |
| 1820 | 250000933 | Hex Sems Screw M8 X 30 S.Grip |
| 1850 | 270001081 | Engine Support Ass'y This part replaces 270001011. |
| 1860 | 250200018 | Cone Washer |
| 2000a | 273000354 | Airbox Base |
| 2000b | 273000371 | Airbox Cover |
| 2000c | 273000234 | Breather Valve |
| 2000d | 273000358 | Intake Hose |
| 2000e | 273000292 | Hose Connector |
| 2000f | 273000290 | Air Silencer Hose |
| 2000g | 219903177 | Air Silencer Notice Decal |
| 2000h | 708000759 | Rubber Stopper |
| 2000i | 250000287 | Flange Torx Screw K40 X 16 |
| 2300 | 270000949 | Formed Hose |
| 2310 | 293650284 | Gear Clamp |
| 2315 | 293650284 | Gear Clamp |
| 3520 | 293750008 | Tie Wrap 368 mm |
| 3530 | 414115200 | Tie-Rap 180 mm |
