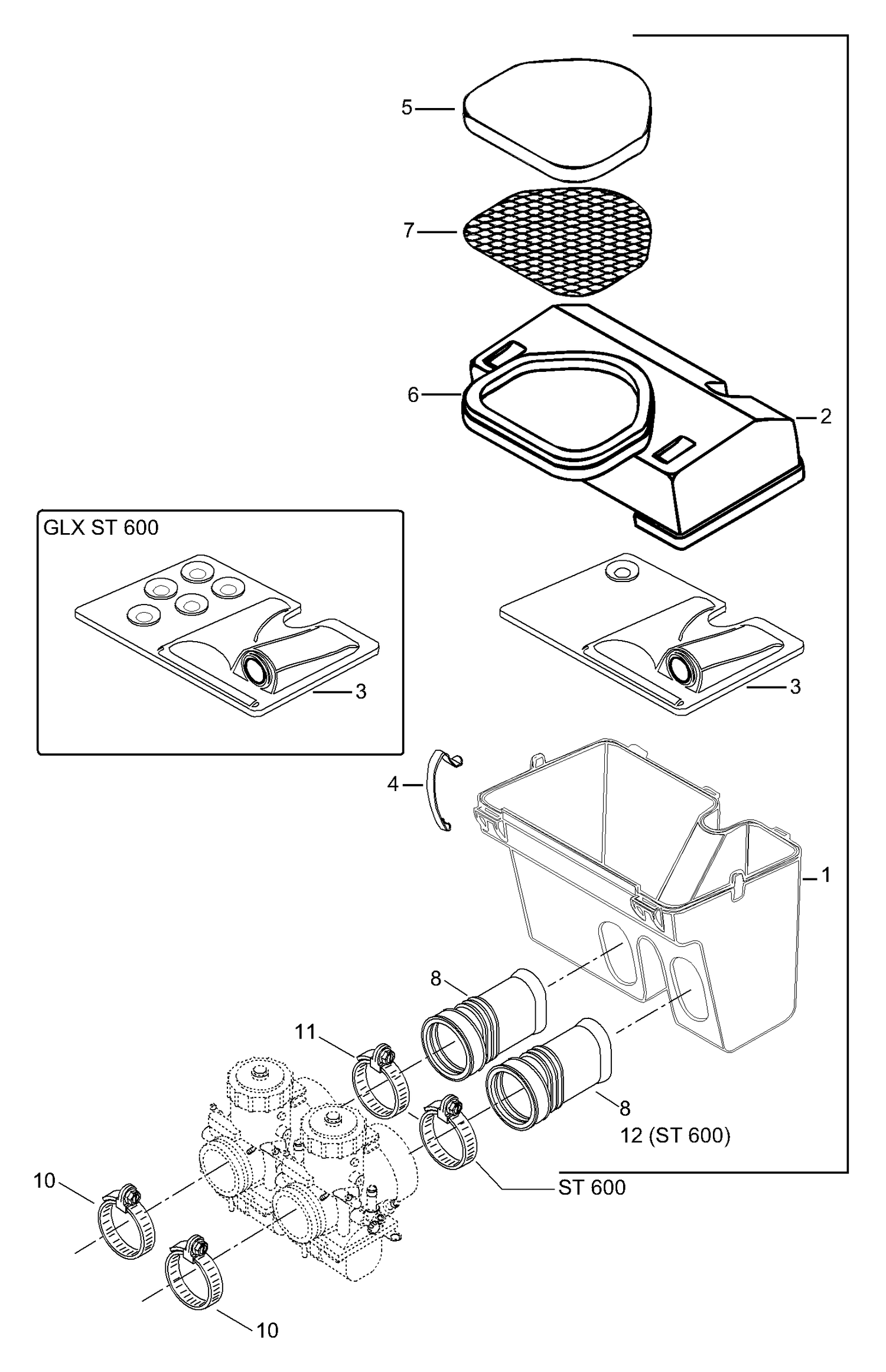

| Ref | Part Number | Description |
|---|
| 1 |
5148040 |
AIRBOX - Call your local BRP dealership |
| 2 |
5147636 |
AIRBOX COVER - Call your local BRP dealership |
| 3 |
5346744 |
Intake centerplate assy - Call your local BRP dealership |
| 4 |
5448209 |
Locking spring - Call your local BRP dealership |
| 5 |
605349057 |
AIR FILTER - Call your local BRP dealership |
| 6 |
5342959 |
Sealing foam |
| 7 |
5342960 |
Support grill |
| 8 |
570134300 |
Fastening rubber |
| 9 |
5346828 |
ADAPTOR CARBURATOR - Call your local BRP dealership |
| 10 |
414532700 |
COLLAR - Call your local BRP dealership |
| 11 |
27018 |
Clamp - Call your local BRP dealership |
