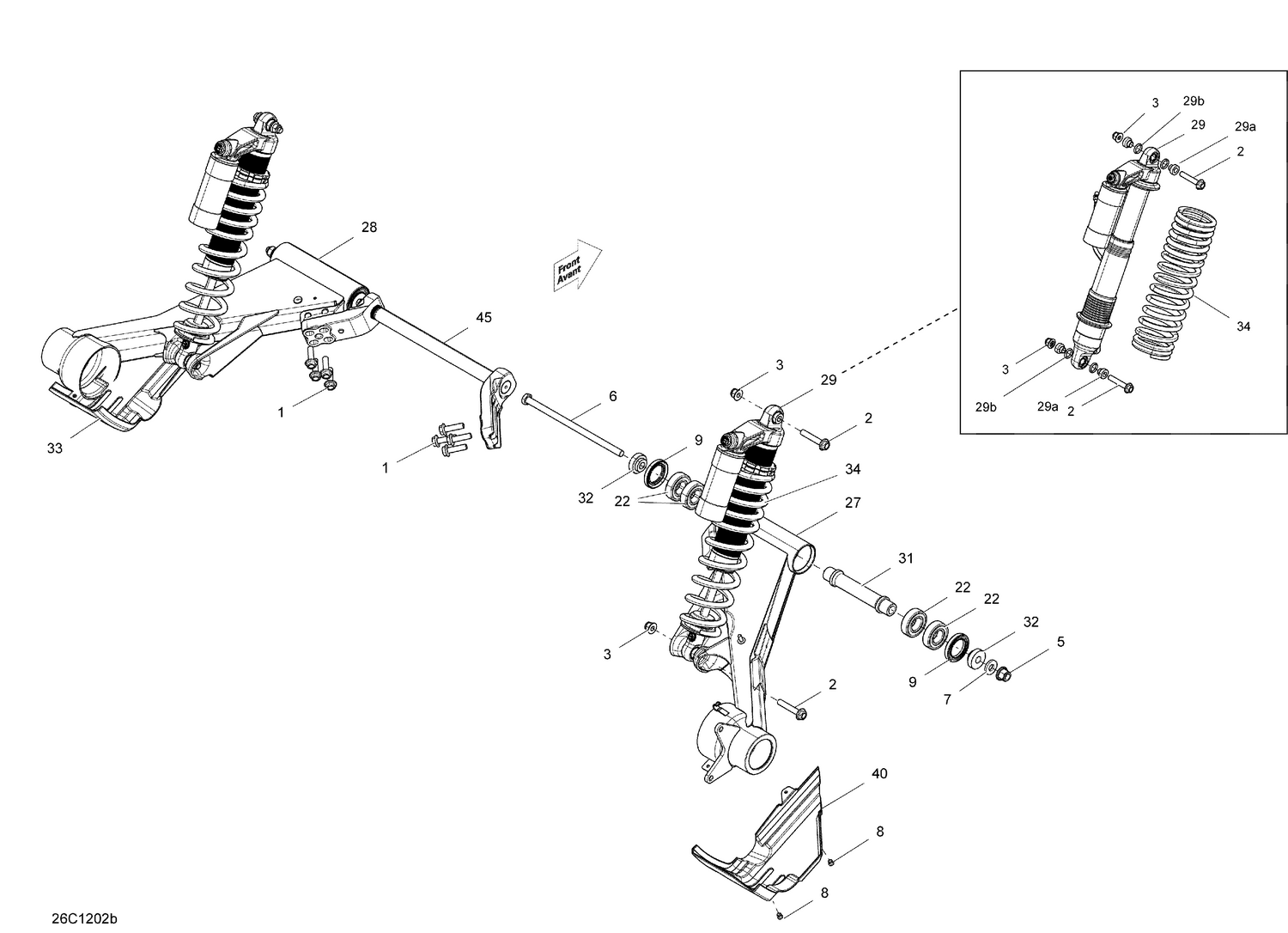

| Ref | Part Number | Description |
|---|
| 1 |
207503544 |
Hex. Flange Screw M10 X 35 |
| 2 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 3 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 5 |
233221416 |
Elastic Flange Nut M12 |
| 6 |
250001031 |
Hex. Cap Screw M12 X 241 This part replaces 250000515. |
| 7 |
250200120 |
Flat Washer M12 |
| 8 |
293150104 |
Pop Rivet 3/16" |
| 9 |
293200094 |
Seal |
| 22 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 27 |
703500965 |
RH Swing Arm This part replaces 706001178. |
| 28 |
706001177 |
LH Swing Arm |
| 29 |
706001117 |
REAR SHOCK - Call your local BRP dealership |
| 29a |
715500361 |
Interior Bushing |
| 31 |
706001529 |
Bushing This part replaces 706000616. |
| 32 |
706001350 |
Spacer This part replaces 706000629. |
| 33 |
706000630 |
LH Joint Protector |
| 34 |
706000821 |
YELLOW REAR SPRING - Call your local BRP dealership |
| 40 |
706000814 |
RH Joint Protector |
| 45 |
706001014 |
SWAY BAR ASS'Y - Call your local BRP dealership |
