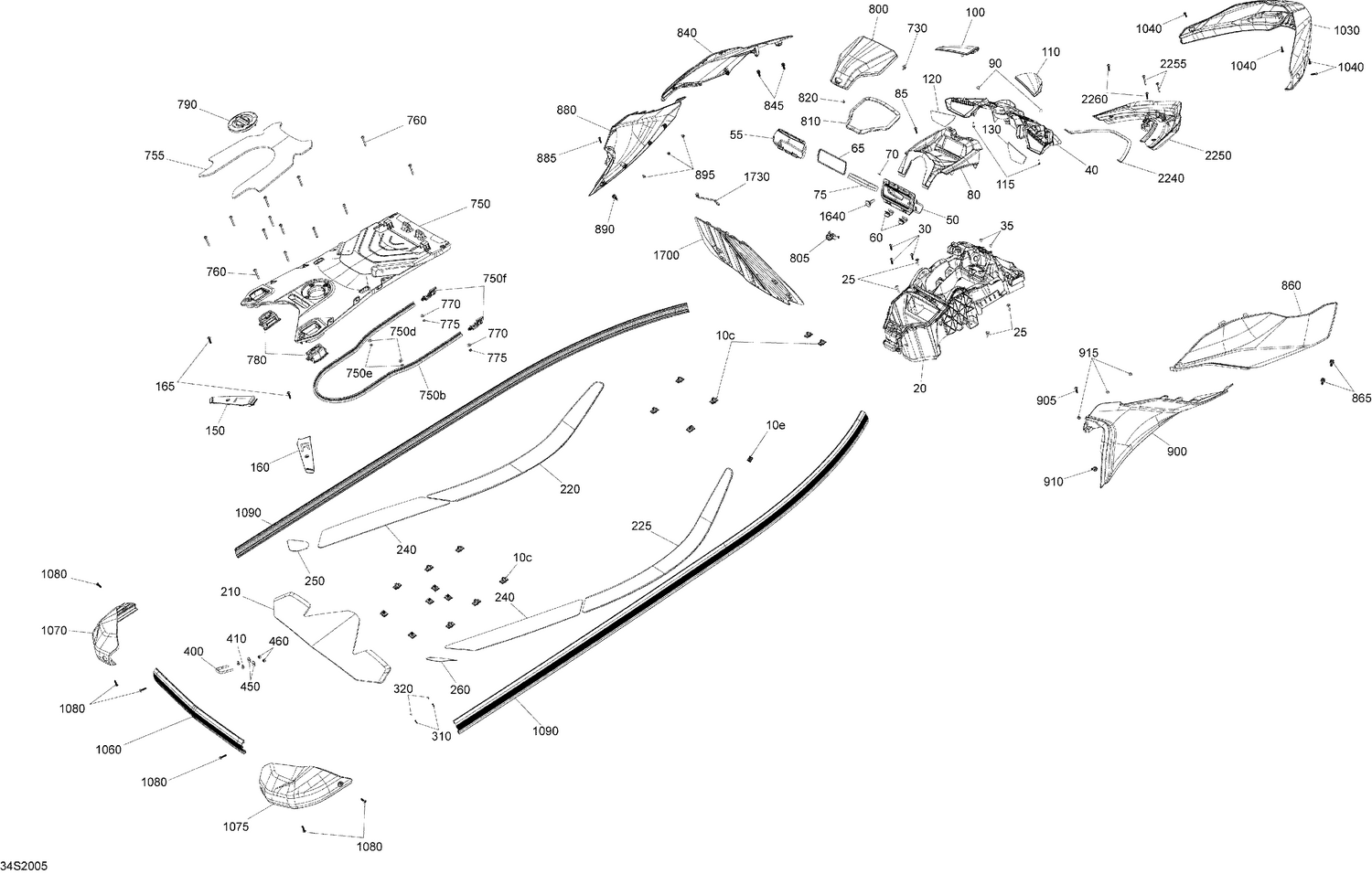

| Ref | Part Number | Description |
|---|
| 10c |
291006093 |
Nut Housing M6 Ass'y This part replaces 291004813. |
| 10e |
293750109 |
Anchorage Tie Wrap This part replaces 293750025. |
| 20 |
291005887 |
Console This part replaces 291005079. |
| 25 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 30 |
250001007 |
Screw Torx M6.81 X 30 |
| 35 |
293830005 |
Rubber Bumper |
| 40 |
291005178 |
Mirror Support |
| 50 |
291005122 |
Deep Black, Storage Bin |
| 55 |
264000134 |
Watertight Door |
| 60 |
269501718 |
Clip |
| 65 |
293250412 |
Gasket |
| 70 |
264000137 |
Vent Membrane |
| 75 |
264000135 |
Sealed Compartment Foam |
| 80 |
291005085 |
Black, Console Panel |
| 85 |
250001007 |
Screw Torx M6.81 X 30 |
| 90 |
293830005 |
Rubber Bumper |
| 100 |
269502427 |
Deep Black, LH Mirror Cover |
| 110 |
269502428 |
Deep Black, RH Mirror Cover |
| 115 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 120 |
269502274 |
LH Mirror Glass |
| 130 |
269502276 |
RH Mirror Glass |
| 150 |
291005127 |
LH Spacer |
| 160 |
291005182 |
RH Spacer |
| 165 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250001008. |
| 210 |
291005258 |
Anti Slip Mat Deck Rear |
| 240 |
291005173 |
LH/RH Rear Anti Slip Mat Side |
| 250 |
291005325 |
LH Rear Anti Slip Mar Footrest |
| 260 |
291005326 |
RH Rear Anti Slip Mar Footrest |
| 310 |
293150016 |
Rivet 1/8" |
| 320 |
293000014 |
Black, Snap Cap |
| 400 |
292000933 |
U-Clamp |
| 410 |
293050001 |
Flat Washer M8.5 x 18 |
| 450 |
234082600 |
Flat Washer 8 mm, Stainless |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 730 |
264000150 |
Clip |
| 750b |
219704366 |
Was 293200062 Seal |
| 750d |
234062600 |
Flat Washer M6, Stainless |
| 750e |
232561200 |
Brass Elastic Stop Nut M6 |
| 750f |
291004717 |
Seal |
| 755 |
291004668 |
Black, Mat Cover |
| 760 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 770 |
234062600 |
Flat Washer M6, Stainless |
| 775 |
232561200 |
Brass Elastic Stop Nut M6 |
| 780 |
295100858 |
Linq Bases Kit |
| 790 |
291004481 |
Access Cap Ass'y |
| 800 |
291005888 |
Deep Black, Glove Box Cover This part replaces 291005056. |
| 805 |
264000133 |
Glove Box Latch |
| 810 |
293250498 |
Gasket |
| 820 |
250001119 |
Screw K40 X 10 |
| 840 |
291005300 |
Stone Grey, Body Panel Front LH |
| 845 |
293730071 |
Dard |
| 860 |
291005302 |
Stone Grey, Body Panel Front RH |
| 865 |
293730071 |
Dard |
| 880 |
291005299 |
Neon Yellow, LH Center Body Panel |
| 885 |
250001007 |
Screw Torx M6.81 X 30 |
| 890 |
293730071 |
Dard |
| 895 |
293830005 |
Rubber Bumper |
| 900 |
291005295 |
Neon Yellow, RH Center Body Panel |
| 905 |
250001007 |
Screw Torx M6.81 X 30 |
| 910 |
293730071 |
Dard |
| 915 |
293830005 |
Rubber Bumper |
| 1030 |
291005082 |
Bumper Front |
| 1040 |
250001007 |
Screw Torx M6.81 X 30 |
| 1060 |
291005510 |
Lateral Bumper This part replaces 291005400. |
| 1070 |
291005083 |
LH Rear Bumper Corner |
| 1075 |
291005084 |
RH Rear Bumper Corner |
| 1080 |
250001007 |
Screw Torx M6.81 X 30 |
| 1090 |
291005510 |
Lateral Bumper This part replaces 291005400. |
| 1640 |
269502324 |
USB Plug |
| 1700 |
291005160 |
Panel, Divider Ass'y |
| 1730 |
269502111 |
Holding Strap |
| 2240 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 2250 |
291005108 |
Body Deflector |
| 2255 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
