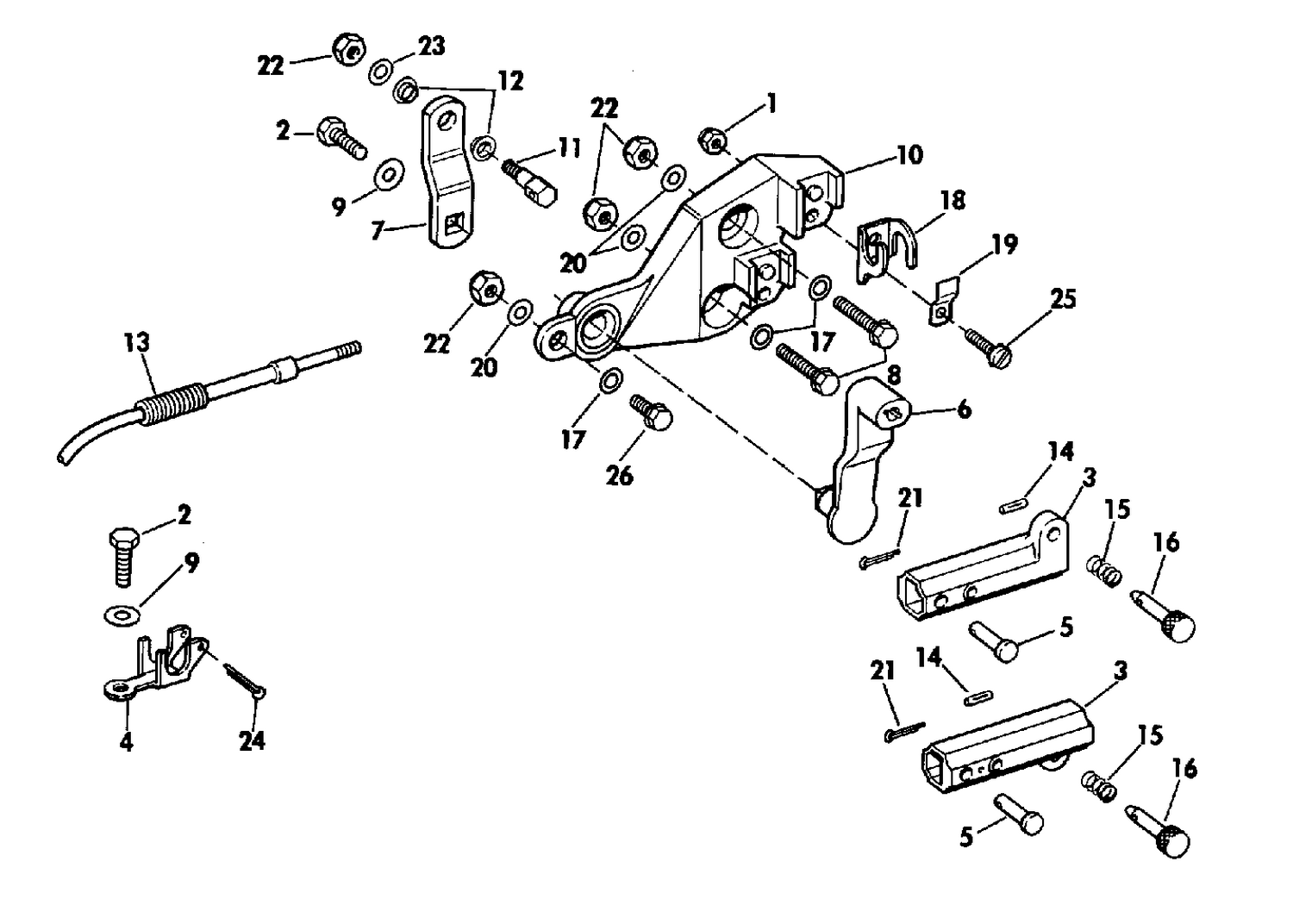

| Ref | Part Number | Description |
|---|
| 4 |
0123682 |
ANCHOR, Throttle cable trunnion |
| 6 |
0123684 |
THROTTLE ARM, Outer |
| 7 |
0123685 |
THROTTLE ARM, Inner |
| 10 |
0123688 |
BRACKET |
| 11 |
0123693 |
PIVOT PIN, Throttle cable to inner throt arm |
| 12 |
0325298 |
BUSHING, Connector to throttle arm assy. |
| 13 |
0173725 |
THROTTLE CABLE ASSEMBLY |
| 20 |
0329241 |
RONDELLE This part replaces 0305981. |
| 22 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 23 |
0329241 |
RONDELLE This part replaces 0306482. |
| 24 |
0306498 |
COTTER PIN, Throttle cable bracket |
| 25 |
0308754 |
SCREW |
| 0174120 |
0431840 |
ADAPTER KIT This part replaces 0174120. |
| 0174121 |
0174121 |
REMOTE CONTROL ADAPTOR KIT (AC Lighting models only) |
