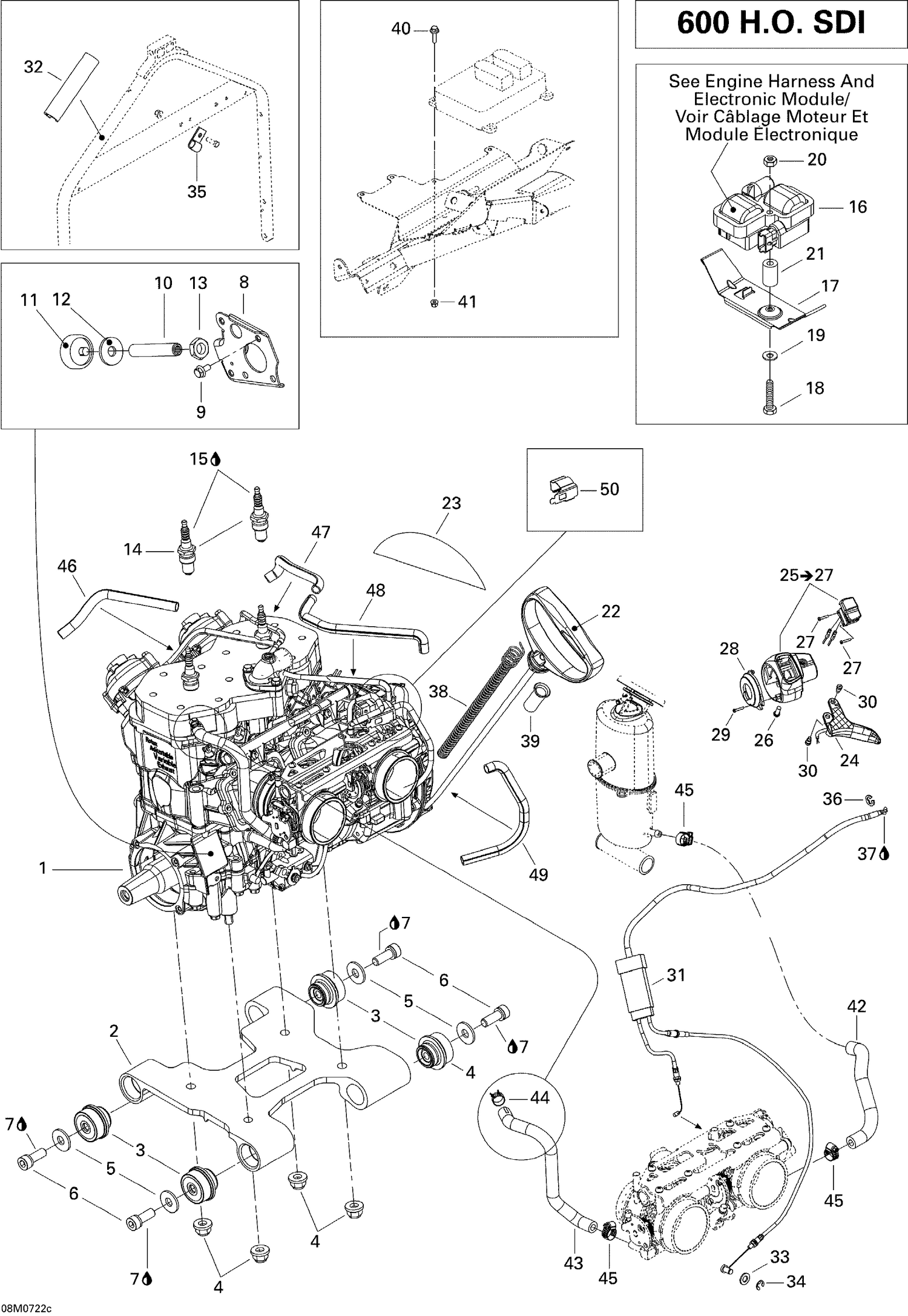

| Ref | Part Number | Description |
|---|
| 1 |
400509773 |
Engine 593 H.O. SDI |
| 2 |
512060051 |
ENGINE SUPPORT - Call your local BRP dealership |
| 3 |
512059691 |
Rubber Mount |
| 4 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 5 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 6 |
235202544 |
TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership |
| 7 |
413703400 |
Sealant LOCTITE 222MS - Call your local BRP dealership |
| 8 |
512059840 |
PLATE - Call your local BRP dealership |
| 9 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 10 |
250500007 |
STOPPER SCREW - Call your local BRP dealership |
| 11 |
512059610 |
STOPPER - Call your local BRP dealership |
| 12 |
512059057 |
WASHER - Call your local BRP dealership |
| 13 |
232170411 |
Hex. Jam Nut M14 |
| 14 |
512060029 |
Spark Plug NGK BR8ECS |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 16 |
278001546 |
Ignition Coil This part replaces 420266070. |
| 17 |
512059865 |
COIL SUPPORT - Call your local BRP dealership |
| 18 |
207064544 |
Hex. Screw M6 X 45 |
| 19 |
234061410 |
Flat Washer 6 mm |
| 20 |
232561414 |
Elastic Stop Nut M6 |
| 21 |
512059812 |
SPACER - Call your local BRP dealership |
| 22 |
572084400 |
Starter Grip |
| 23 |
512059893 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 24 |
512060484 |
Throttle Handle Ass'y This part replaces 512060302. |
| 26 |
250000036 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 27 |
250000098 |
PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 28 |
512059698 |
COVER - Call your local BRP dealership |
| 29 |
250000265 |
TORX SCREW M2.9 X 12 - Call your local BRP dealership |
| 30 |
732601143 |
Flange Screw |
| 31 |
512060087 |
THROTTLE CABLE - Call your local BRP dealership |
| 32 |
512059750 |
PROTECTOR - Call your local BRP dealership |
| 33 |
234081100 |
Flat Washer 8 mm, Nylon |
| 34 |
414753500 |
Circlip |
| 35 |
293750042 |
TIE CLAMP - Call your local BRP dealership |
| 36 |
414274500 |
Circlip |
| 37 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 38 |
512059535 |
ROPE GUIDE - Call your local BRP dealership |
| 39 |
512059536 |
TUBE - Call your local BRP dealership |
| 40 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 41 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 42 |
512059563 |
FORMED HOSE - Call your local BRP dealership |
| 43 |
605354601 |
HOSE-FORMED - Call your local BRP dealership This part replaces 512059990. |
| 44 |
513033029 |
Universal Spring Clamp |
| 45 |
293650170 |
Tridon Gear Clamp |
| 46 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 47 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 48 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 49 |
219704399 |
Was 409901700 Tubing (9 mm) |
