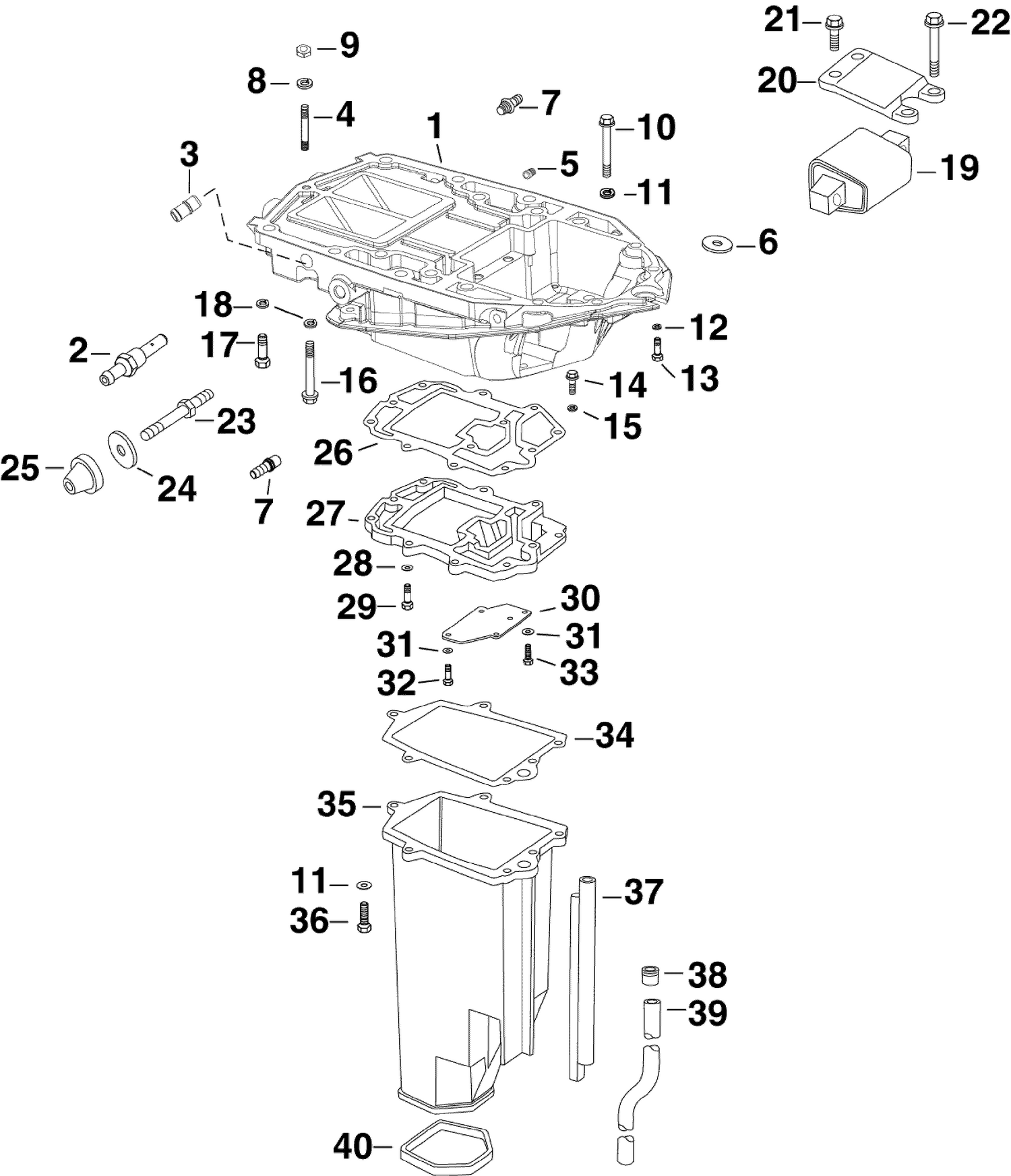

06-2_EXHAUST HOUSING INNER (3.3 L)

06-2_EXHAUST HOUSING INNER (3.3 L)

Parts (21)

RefPart NumberDescription
1 5007589 Kit This part replaces 5001496.
10 0341011 SCREW, Adapter to housing, outer
13 0306503 SCREW, Short
14 0341011 SCREW, Adapter to housing, outer
15 0329241 RONDELLE
17 0309484 SCREW
20 0330929 PLATE, Upper mount
22 0330931 VIS, support supérieur
23 0329743 STUD, Cover mount
24 0349556 Washer
25 0349557 MOUNT
26 0343809 GASKET, Plate to adapter
27 0354508 WATER PLATE
29 0312978 SCREEN, Ground plt to intmd hsg
30 0333565 COVER, Water plate
32 0333165 SCREW, Cover, long
34 0334113 GASKET, Inner exh hsg to water plate
35 0351228 EXHAUST HOUSING, Inner, upper
36 0341010 SCREW, Adapter to inner housing
37 0334118 SEAL, Exhaust housing, front
38 0305145 GROMMET
