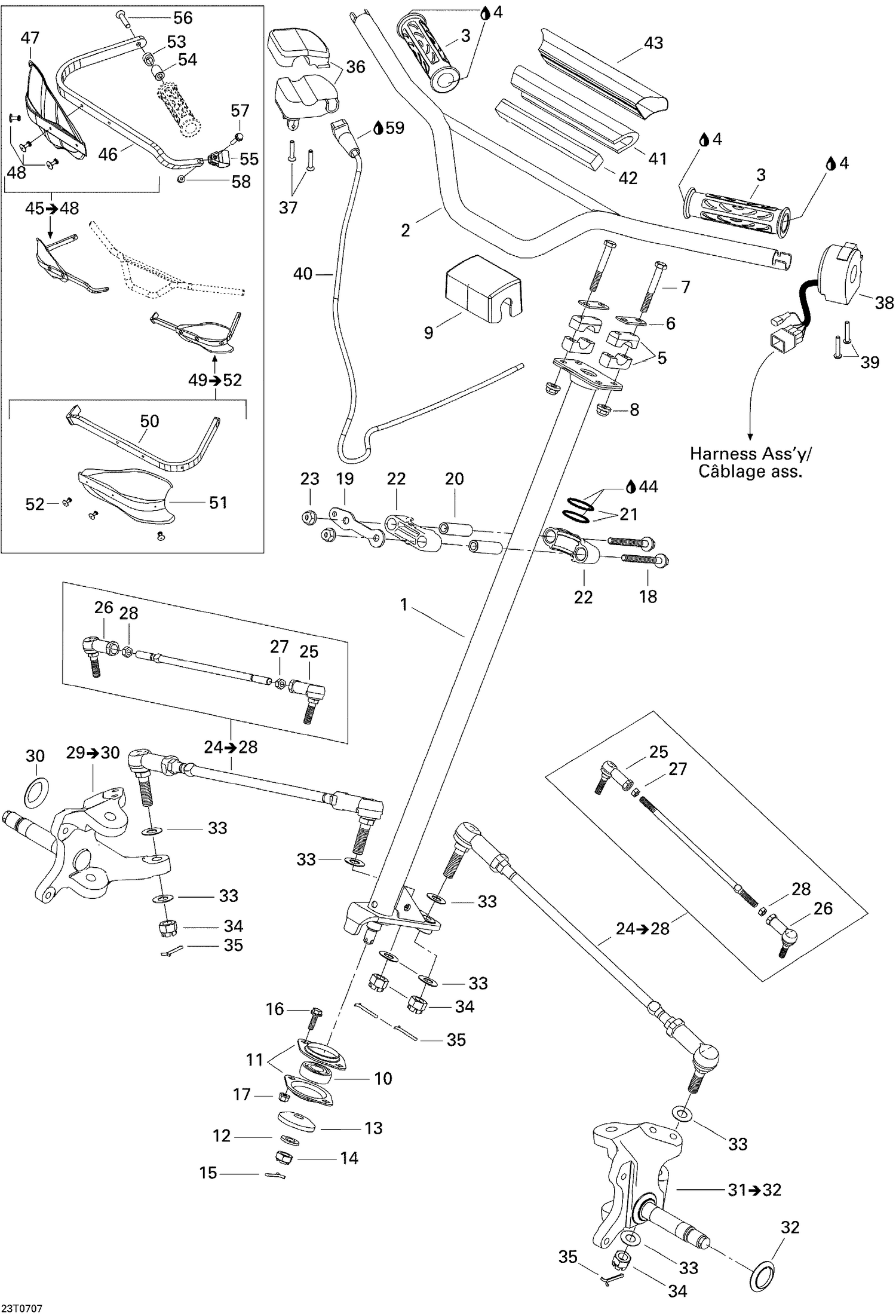

| Ref | Part Number | Description |
|---|
| 1 |
709400222 |
MAIN TUBE - Call your local BRP dealership |
| 2 |
709400218 |
Handle Bar, Black |
| 3 |
709400493 |
Handle Grip This part replaces 709400157. |
| 4 |
293800100 |
Loctite 406, 7 Oz |
| 5 |
709400919 |
Steering Support This part replaces 506151622. |
| 6 |
709400509 |
Stiffner This part replaces 506151196. |
| 7 |
207086044 |
HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 8 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 9 |
705000371 |
COVER - Call your local BRP dealership |
| 10 |
709400439 |
Ball Bearing This part replaces 709400224. |
| 11 |
709400152 |
FLANGE, BEARING - Call your local BRP dealership |
| 12 |
234021410 |
Flat Washer 12 mm |
| 13 |
250200017 |
WASHER - Call your local BRP dealership |
| 14 |
232220413 |
HEX. CASTELLATED NUT M12 - Call your local BRP dealership |
| 15 |
211400017 |
Cotter Pin |
| 16 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
207687544 |
Hex. Flange Screw M8 X 75 |
| 19 |
709400053 |
STOPPER PLATE - Call your local BRP dealership |
| 20 |
709400072 |
BUSHING - Call your local BRP dealership |
| 21 |
293300068 |
O-Ring |
| 22 |
709400471 |
Half Bushing |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 25 |
709402302 |
RH Ball Joint This part replaces 709400241. |
| 26 |
709402303 |
LH Ball Joint This part replaces 709400242. |
| 27 |
Not |
Available As Spare Part - RH Hex Jam Nut M12 |
| 28 |
Not |
Available As Spare Part - LH Hex Jam Nut M12 |
| 30 |
705400056 |
WEAR RING - Call your local BRP dealership |
| 32 |
705400056 |
WEAR RING - Call your local BRP dealership |
| 33 |
706200281 |
Hardened Washer |
| 34 |
250100099 |
Nut M12 This part replaces 250100045. |
| 35 |
211400013 |
Cotter Pin |
| 36 |
709400016 |
THROTTLE HANDLE - Call your local BRP dealership |
| 37 |
205353060 |
SCREW M5 X 30 - Call your local BRP dealership |
| 38 |
710000072 |
MULTI FUNCTION SWITCH - Call your local BRP dealership |
| 39 |
205453046 |
SCREW M5 X 30 - Call your local BRP dealership |
| 40 |
709400048 |
THROTTLE CABLE - Call your local BRP dealership |
| 41 |
709400087 |
Steering Cover Foam |
| 42 |
709400094 |
FOAM INSERT - Call your local BRP dealership |
| 43 |
709400451 |
STEERING COVER - Call your local BRP dealership |
| 44 |
293550010 |
Synthetic Grease, 400 G |
| 46 |
709400159 |
RH HANDLE PROTECTOR - Call your local BRP dealership |
| 47 |
705000461 |
Protector Plate |
| 48 |
293150103 |
Pop Rivet 3/16" |
| 50 |
709400160 |
LH Handle Protector |
| 51 |
705000461 |
Protector Plate |
| 52 |
293150103 |
Pop Rivet 3/16" |
| 53 |
709400161 |
Small Bracket |
| 54 |
709400162 |
Large Bracket |
| 55 |
709400174 |
HANDLE BRACKET - Call your local BRP dealership |
| 56 |
205384044 |
Socket Head Screw M8 X 40 |
| 57 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 58 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
