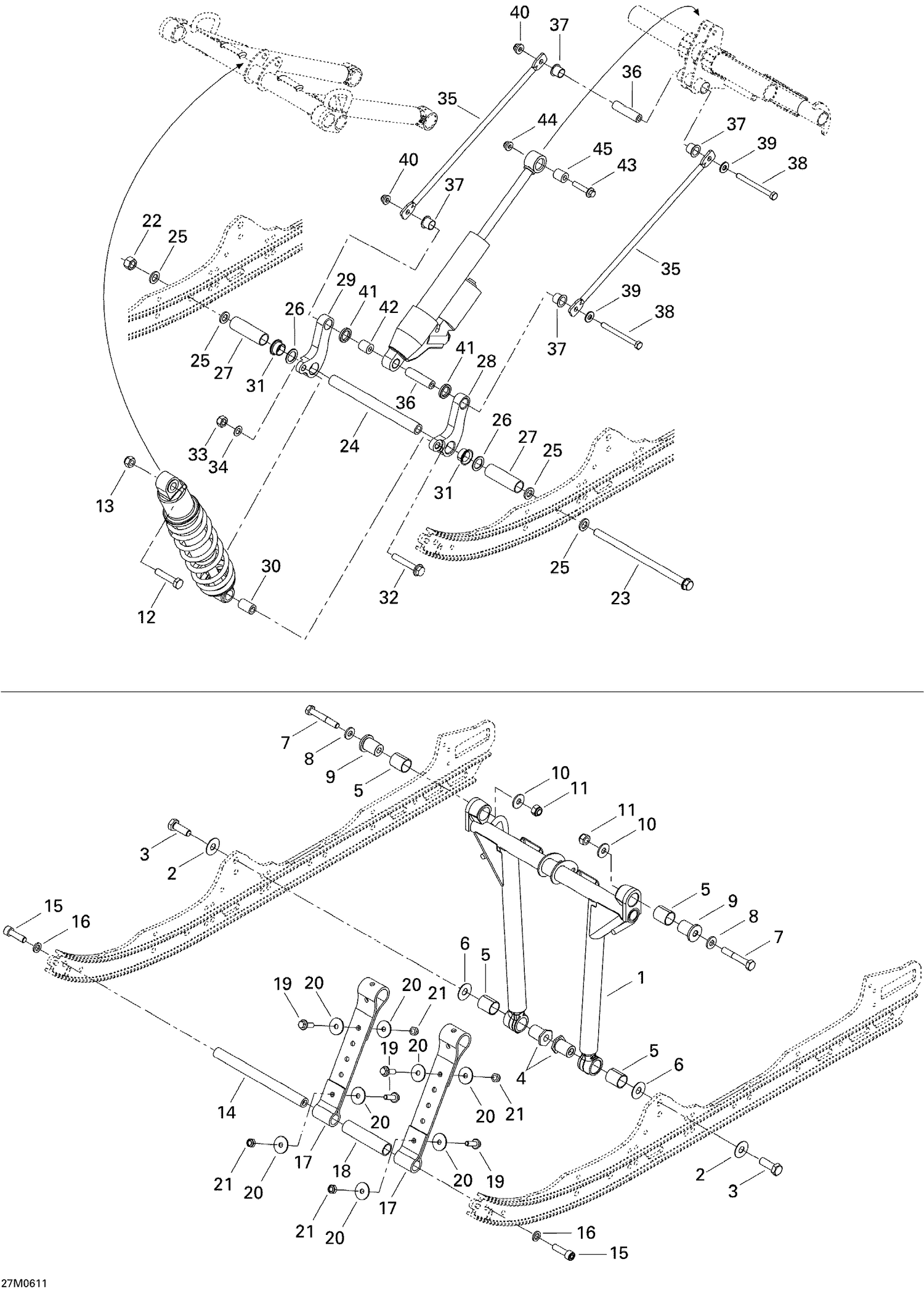

08- Front Arm
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191266 | FRONT ARM, BLACK - Call your local BRP dealership |
| 2 | 503189148 | Washer |
| 3 | 250000537 | Hex. Cap Screw M12 X 35 This part replaces 250000225. |
| 4 | 503191966 | Lower Axle This part replaces 503190727. |
| 5 | 503190974 | Bushing |
| 6 | 503190656 | Washer |
| 7 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 8 | 732900049 | Washer |
| 9 | 503190698 | Axle |
| 10 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 11 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 12 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 13 | 232500416 | Elastic Stop Nut M10 |
| 14 | 503189562 | AXLE - Call your local BRP dealership |
| 15 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 16 | 503189564 | Washer |
| 17 | 503190782 | STOPPER STRAP - Call your local BRP dealership |
| 18 | 503189265 | Spacer |
| 19 | 207682544 | Hex. Flange Screw M8 X 25 |
| 20 | 224081301 | Flat Washer |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 22 | 232021416 | Hex. Nut M12 |
| 23 | 250000229 | HEX. SCREW M12 X 252 - Call your local BRP dealership |
| 24 | 503191044 | CENTER SHAFT - Call your local BRP dealership |
| 25 | 503189148 | Washer |
| 26 | 503190697 | WASHER - Call your local BRP dealership |
| 27 | 503190600 | SPACER - Call your local BRP dealership |
| 28 | 503190965 | LH Rocker Arm |
| 29 | 503190966 | RH ROCKER ARM - Call your local BRP dealership |
| 30 | 503190604 | Central Shock Axle |
| 31 | 503190605 | CENTRAL ROCKER AXLE CUSHION - Call your local BRP dealership |
| 32 | 207606044 | Hex. Flange Screw M10 X 60 |
| 33 | 232500416 | Elastic Stop Nut M10 |
| 34 | 503175800 | Washer |
| 35 | 503190606 | THROTTLE ROD - Call your local BRP dealership |
| 36 | 503190643 | Axle Bar (Long) |
| 37 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 38 | 207088544 | HEX. SCREW M8 X 85 - Call your local BRP dealership |
| 39 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 40 | 233281414 | Hex. Flange Elastic Nut M8 |
| 41 | 503190694 | Plastic Spacer |
| 42 | 503190706 | BUSHING - Call your local BRP dealership |
| 43 | 207684044 | Hex. Flange Screw M8 X 40 |
| 44 | 233281414 | Hex. Flange Elastic Nut M8 |
